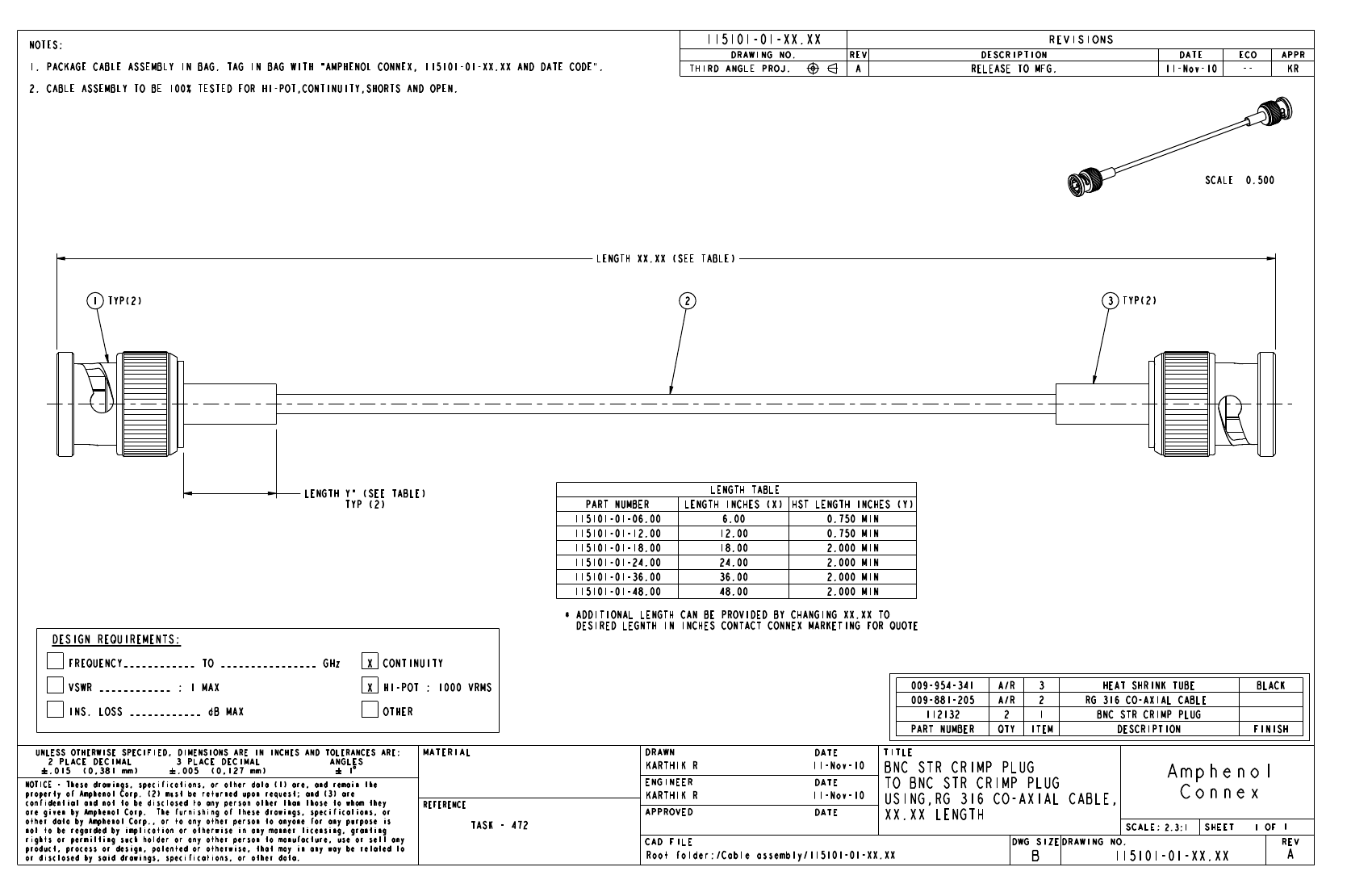

NOTES:
1. PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX,
115101-01-XX.XX AND DATE CODE".
115101-01-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECO
APPR
A
RELEASE TO MFG.
11-Nov-10
--
KR
2. CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT,CONTINUITY,SHORTS AND OPEN.
SCALE
0.500
LENGTH XX.XX (SEE TABLE)
1 TYP(2)
2
3 TYP(2)
LENGTH Y" (SEE TABLE)
TYP (2)
LENGTH TABLE
PART NUMBER
115101-01-06.00
115101-01-12.00
115101-01-18.00
115101-01-24.00
115101-01-36.00
115101-01-48.00
LENGTH INCHES (X)
6.00
12.00
18.00
24.00
36.00
48.00
HST LENGTH INCHES (Y)
0.750 MIN
0.750 MIN
2.000 MIN
2.000 MIN
2.000 MIN
2.000 MIN
* ADDITIONAL LENGTH CAN BE PROVIDED BY CHANGING XX.XX TO
DESIRED LEGNTH IN INCHES CONTACT CONNEX MARKETING FOR QUOTE
DESIGN REQUIREMENTS:
FREQUENCY____________ TO ________________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
X
CONTINUITY
X
HI-POT : 1000 VRMS
OTHER
009-954-341
009-881-205
112132
PART NUMBER
A/R
A/R
2
QTY
3
2
1
ITEM
HEAT SHRINK TUBE
RG 316 CO-AXIAL CABLE
BNC STR CRIMP PLUG
DESCRIPTION
FINISH
BLACK
UNLESS OTHERWISE SPECIFIED, DIMENSIO
NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#
.015 (0,381 mm)
#
.005 (0,127 mm)
#1 $
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
DATE
TITLE
KARTHIK R
ENGINEER
REFERENCE
11-Nov-10
DATE
KARTHIK R
APPROVED
11-Nov-10
DATE
TASK - 472
CAD FILE
BNC STR CRIMP PLUG
TO BNC STR CRIMP PLUG
USING,RG 316 CO-AXIAL CABLE,
XX.XX LENGTH
SCALE:
DWG SIZE
DRAWING NO.
Amphenol
Connex
2.3:1
SHEET
OF
1
1
REV
Root folder:/Cable assembly/115101-01-XX.XX
B
115101-01-XX.XX
A
