135104-02-M0.25 datasheet, PDF

Datasheet> All Categories > The connector> 135104-02-M0.25

135104-02-M0.25: DescriptionRF cable assemblies sma R/A plug/sma R/A plug cbl 0.25met; CategoryThe connector; File Size135KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

135104-02-M0.25 Overview

RF cable assemblies sma R/A plug/sma R/A plug cbl 0.25met

135104-02-M0.25 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Cable Assemblies
RoHS	Yes
Cable Type	RG-174
Frequency Range	DC to 3 GHz
Impedance	50 Ohms
Length	0.25 m
Connector A Body Style	Right Angle
Connector A Series	SMA
Connector B Body Style	Right Angle
Connector B Series	SMA
Connector A Gende	Plug
Connector A Polarity	Normal
Connector B Gende	Plug
Connector B Polarity	Normal

Preview

Download Datasheet

View All

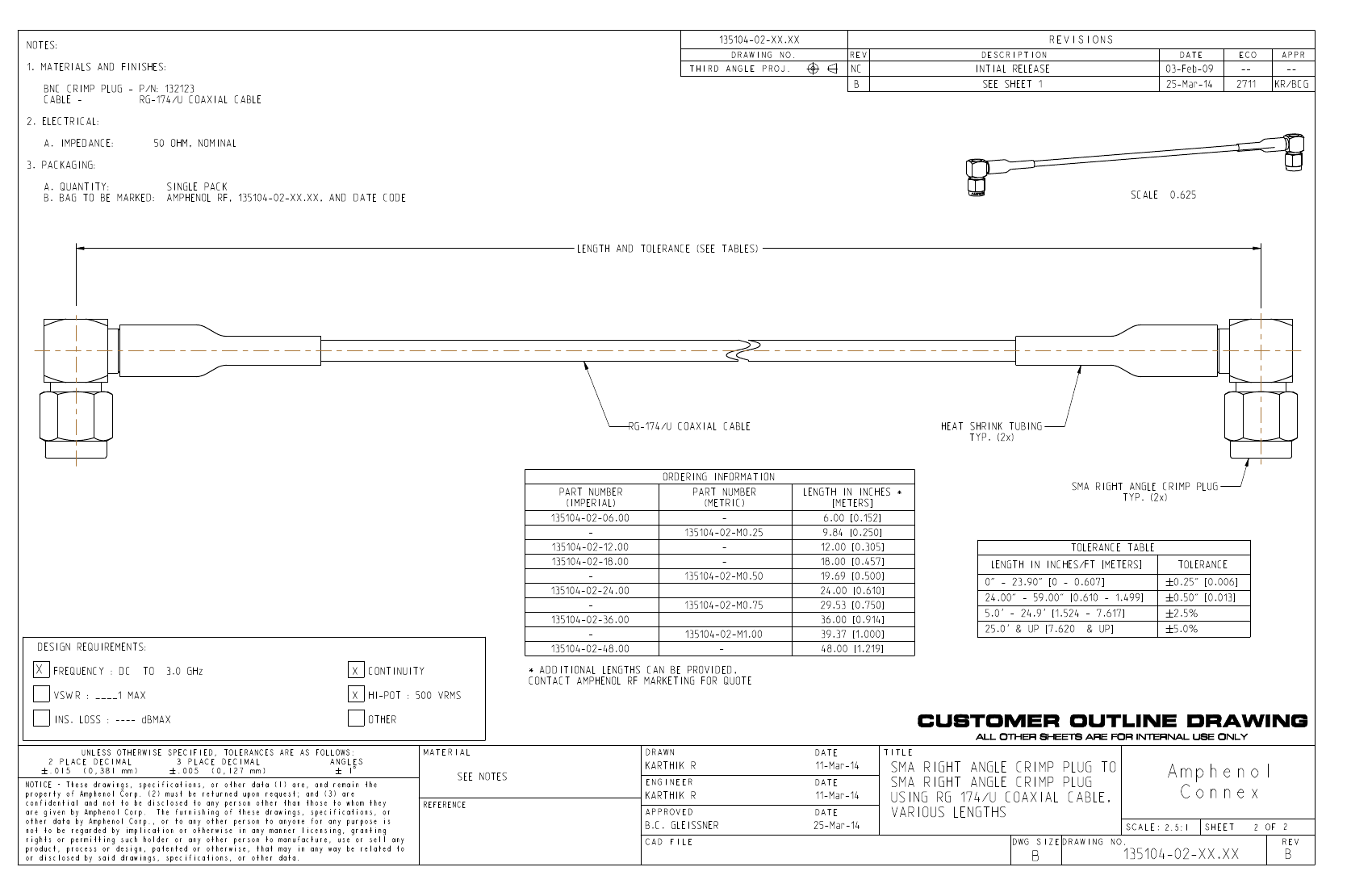

NOTES:

1. MATERIALS AND FINISHES:

BNC CRIMP PLUG - P/N: 132123

CABLE -

RG-174/U COAXIAL CABLE

2. ELECTRICAL:

A. IMPEDANCE:

3. PACKAGING:

A. QUANTITY:

B. BAG TO BE MARKED:

SINGLE PACK

AMPHENOL RF, 135104-02-XX.XX, AND DATE CODE

50 OHM, NOMINAL

135104-02-XX.XX

DRAWING NO.

THIRD ANGLE PROJ.

REV

REVISIONS

INTIAL RELEASE

SEE SHEET 1

DESCRIPTION

03-Feb-09

DATE

ECO

25-Mar-14

2711

APPR

KR/BCG

SCALE

0.625

LENGTH AND TOLERANCE (SEE TABLES)

RG-174/U COAXIAL CABLE

HEAT SHRINK TUBING

TYP. (2x)

135104-02-06.00

135104-02-12.00

135104-02-18.00

135104-02-24.00

135104-02-36.00

DESIGN REQUIREMENTS:

135104-02-48.00

CONTINUITY

HI-POT : 500 VRMS

OTHER

MATERIAL

DRAWN

PART NUMBER

(IMPERIAL)

ORDERING INFORMATION

PART NUMBER

(METRIC)

LENGTH IN INCHES *

[METERS]

6.00 [0.152]

9.84 [0.250]

SMA RIGHT ANGLE CRIMP PLUG

TYP. (2x)

135104-02-M0.25

12.00 [0.305]

18.00 [0.457]

19.69 [0.500]

24.00 [0.610]

29.53 [0.750]

36.00 [0.914]

39.37 [1.000]

48.00 [1.219]

TOLERANCE TABLE

LENGTH IN INCHES/FT [METERS]

0" - 23.90" [0 - 0.607]

24.00" - 59.00" [0.610 - 1.499]

5.0' - 24.9' [1.524 - 7.617]

25.0' & UP [7.620 & UP]

TOLERANCE

0.25" [0.006]

2.5%

0.50" [0.013]

135104-02-M0.50

135104-02-M0.75

135104-02-M1.00

5.0%

FREQUENCY : DC TO 3.0 GHz

VSWR : ____1 MAX

INS. LOSS : ---- dBMAX

* ADDITIONAL LENGTHS CAN BE PROVIDED,

CONTACT AMPHENOL RF MARKETING FOR QUOTE

UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE AS FOLLOWS:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015 (0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

SEE NOTES

REFERENCE

KARTHIK R

B.C. GLEISSNER

11-Mar-14

25-Mar-14

DATE

TITLE

ENGINEER

APPROVED

CAD FILE

SMA RIGHT ANGLE CRIMP PLUG TO

SMA RIGHT ANGLE CRIMP PLUG

USING RG 174/U COAXIAL CABLE,

VARIOUS LENGTHS

Amphenol

Connex

SCALE: 2.5:1

SHEET

2 OF 2

REV

DWG SIZE DRAWING NO.

135104-02-XX.XX

135104-02-M0.25 Related Products

	135104-02-M0.25	135104-02-M0.75	135104-02-M0.50	135104-02-M1.00
Description	RF cable assemblies sma R/A plug/sma R/A plug cbl 0.25met	RF cable assemblies sma R/A plug/sma R/A plug cbl 0.75met	RF cable assemblies sma R/A plug/sma R/A plug cbl 0.50met	RF cable assemblies sma R/A plug/sma R/A plug cbl 1.00met
Manufacture	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Yes	Yes	Yes	Yes
Cable Type	RG-174	RG-174	RG-174	RG-174
Frequency Range	DC to 3 GHz	DC to 3 GHz	DC to 3 GHz	DC to 3 GHz
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Length	0.25 m	0.75 m	0.5 m	1 m
Connector A Body Style	Right Angle	Right Angle	Right Angle	Right Angle
Connector A Series	SMA	SMA	SMA	SMA
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle
Connector B Series	SMA	SMA	SMA	SMA
Connector A Gende	Plug	Plug	Plug	Plug
Connector A Polarity	Normal	Normal	Normal	Normal
Connector B Gende	Plug	Plug	Plug	Plug
Connector B Polarity	Normal	Normal	Normal	Normal
