TST-132-03-L-D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> TST-132-03-L-D

Preview

TST-132-03-L-D: DescriptionBoard Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size701KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TST-132-03-L-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TST-132-03-L-D	-	-	View	Buy Now

TST-132-03-L-D Overview

Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT

TST-132-03-L-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
body width	0.365 inch
subject depth	0.35 inch
body length	3.5 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	TST
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.565 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

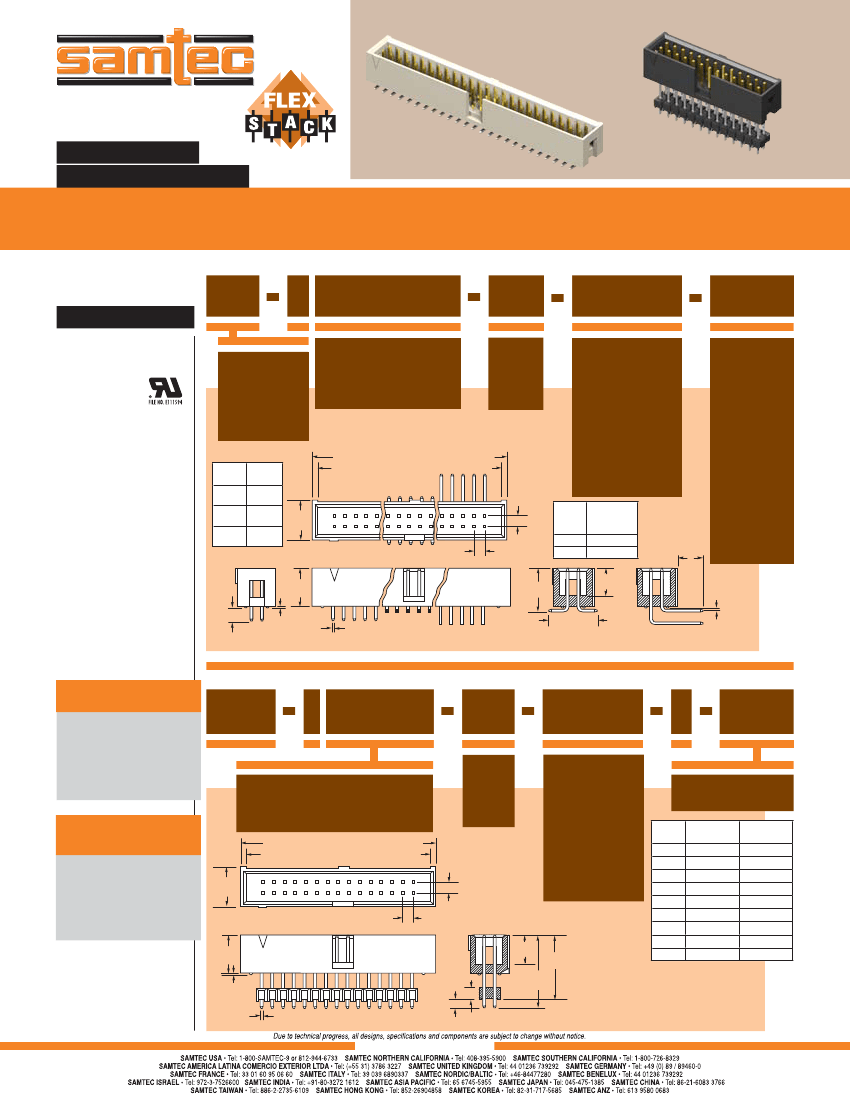

F-213-1

ZST–113–03–L–D–0735

HTST–125–01–L–DV

(2,54 mm) .100"

TST, HTST, ZST SERIES

SHROUDED .025" SQ POST IDC HEADERS

Mates with:

IDSD, SMSD

TYPE

STRIP

1

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart.

PLATING

OPTION

ROW

OPTION

SPECIFICATIONS

For complete speciﬁcations

www.samtec.com?TST,

www.samtec.com?HTST or

www.samtec.com?ZST

Insulator Material:

Black Glass

Filled Polyester

(TST, ZST)

Natural PCT (HTST)

Insulation Resistance:

5000 MΩ min

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

3A per contact

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Flammability Rating:

UL 94V-O

Withstanding Voltage:

1000 VRMS

RoHS Compliant:

Yes

TST

= Cable Strip

05, 07, 08, 10,

12, 13, 15, 17,

20, 25, 32, 36

(Call Samtec for other sizes.)

–F

= Gold ﬂash on post,

Matte Tin on tail

(Not available on –DV)

–D

= Double Row

Through-hole

(lead style –01,

–02 & –03 only)

HTST

= High Temp

Cable Strip

–L

= 10µ" (0,25 µm)

Gold on post,

Matte Tin on tail

–DV

= Double Row

Surface Mount

(lead style

–01 only)

(HTST only)

LEAD

STYLE

–01

–02

–03

T/H

(A)

(2,92)

.115

(4,19)

.165

(14,35)

.565

(2,54) .100 x No. of Positions + (7,62) .300

(2,54) .100 x No. of Positions + (5,08) .200

(2,54)

.100

–T

= Matte Tin

RIGHT

LEAD ANGLE

STYLE

(B)

–04

(3,30) .130

–05

(5,84) .230

(6,35)

.250

02

(9,27)

.365

01

–D–RA

B

(2,54)

.100

= Double Row

Right Angle

(lead style –04

& –05 only)

(8,89)

.350

(10,16)

.400

(5,08)

.200

Processing:

A

Lead–Free Solderable:

Yes (HTST)

Wave Only (TST, ZST)

SMT Lead Coplanarity:

(0,15 mm) .006"

–D

(0,38)

.015

(11,18) .440

(0,64) .025 SQ TYP

–DV

(HTST ONLY)

–D–RA

ALSO

AVAILABLE

Shrouded board-to-board

headers and stackers to

mate with SSW, SSQ,

ESW, ESQ, SSM

and BCS Series.

See TSS, HTSS and

ZSS Series.

ZST

1

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart.

PLATING

OPTION

D

BODY

HEIGHT

–F

= Gold ﬂash on post,

Matte Tin on tail

05, 07, 08, 10, 12, 13,

15, 17, 20, 25, 32, 36

(Call Samtec for other sizes.)

(2,54) .100 x No. of Positions + (7,62) .300

(2,54) .100 x No. of Positions + (5,08) .200

02

–“XXXX”

= Body Height

LEAD

STYLE

–01

–02

–03

–04

–05

–06

–07

–08

–09

C

(OAL)

(16,00) .630

(18,54) .730

(21,08) .830

(23,62) .930

APPLICATION

SPECIFIC OPTION

• Alignment Pins

• Single Row

• Locking Leads

• Polarized

Call Samtec.

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

Some lengths, styles

and options are non-standard,

non-returnable. ZST is

non-standard, non-returnable.

(9,27)

.365

–L

= 10µ" (0,25 µm)

Gold on post,

Matte Tin on tail

MAX BODY

HEIGHT

(13,72) .540

(16,26) .640

(18,80) .740

(21,34) .840

(2,54)

.100

–T

= Matte Tin

(26,16) 1.030 (23,88) .940

(28,70) 1.130 (26,42) 1.040

(31,24) 1.230 (28,96) 1.140

(33,78) 1.330 (31,50) 1.240

(36,32) 1.430 (34,04) 1.340

01

(2,54)

.100

(6,35)

.250

(2,29)

.090

MIN

(0,64) .025 SQ TYP

(8,89)

.350

(0,38)

.015

BODY

HEIGHT

C

(OAL)

(2,54)

.100

Note:

For added mechanical stability, Samtec

recommends mechanical board spacers be

used in applications with gold or selective

gold plated connectors. Contact ipg@

samtec.com for more information.

WWW.SAMTEC.COM
