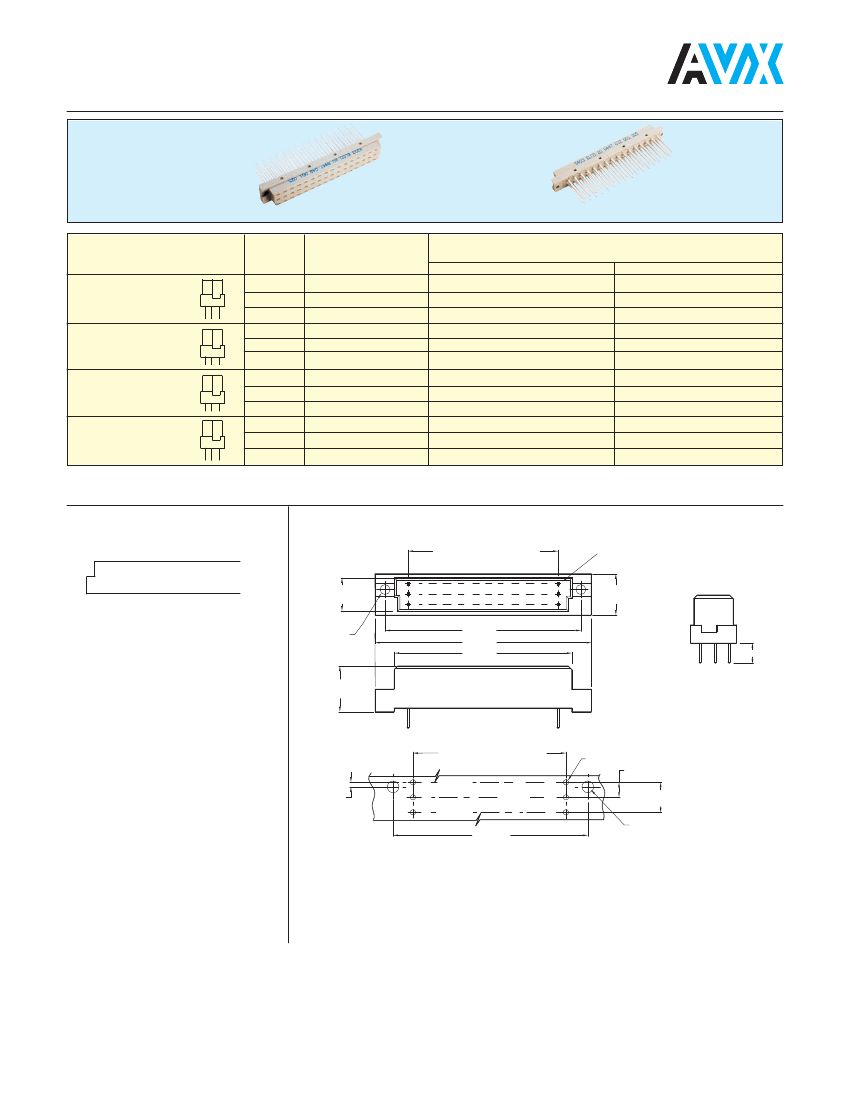

Male Style D
Series 8447 – 2 rows (2 x 16)
Contact Design
and
Termination Length
3.0 mm (Y) (0.6 x 0.6 mm)
Right Angled Pitch 5.08
3.0 mm (Y) (0.6 x 0.6 mm)
Right Angled Pitch 2.54
Number of
Contacts
32
Loading Description
a + c fully loaded
Part Number
Performance classes according to DIN 41612
II
I
10 8447 032 001 025
10 8447 032 001 049
32
a + c fully loaded
10 8447 032 002 025
10 8447 032 002 049
NB: Alternative Prefix Variations Available: 12, please refer to Page 10.
Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.
LOADING DESCRIPTION
●
●
●
●
●
●
●
●
●
●
DIMENSIONS
94.0 max
[3.700]
11.1 max
[0.437]
1.00
[0.040]
-0.10 [0.004]
c
a
2.50
[0.010]
-0.20 [0.008]
8.70
+0.10 [0.004]
[0.343]
32 contacts, rows a + c fully loaded
85.2
+0.20 [0.008]
[3.354]
2
1.20 max
[0.047]
0.60 x 45∞
[0.024]
0.50
[0.200]
-0.10 [0.004]
2.90
-0.30 [0.012]
[0.114]
5.08
[0.200]
6.00
[0.236]
5.08
[0.200]
5.08
[0.200]
1.00
[0.039]
5.08
[0.200]
2.54
[0.100]
Ground pin not available
5.30
±0.10
[0.004]
[0.208]
2.54
[0.100]
1.00
[0.039]
15 EQ SP @ 5.08 [0.200] = 76.2 [3.000]
88.9
±0.10
[0.004]
[3.500]
2.80
+0.10 [0.004]
DIA.
[0.110]
25

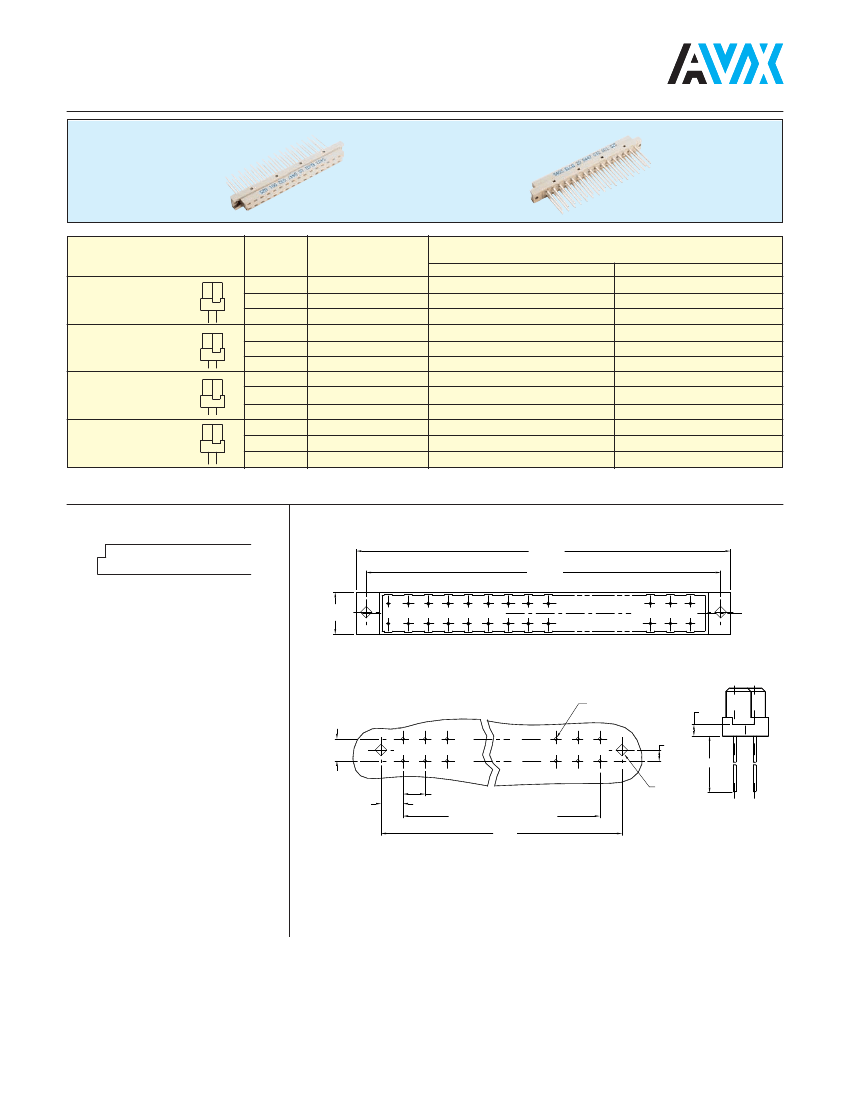

Female Style D
Series 8447 – 2 rows (2 x 16)
Contact Design
and
Termination Length
1 x 1 mm Post Profile
20.0 mm (Y) Straight
1 x 1 mm Post Profile
9.0 mm (Y) Straight
0.6 x 0.6 mm Post Profile
4.0 mm (Y) Straight
0.6 x 1.28 mm Post Profile
4.5 mm (Y) Straight
Number of
Contacts
Loading Description
Part Number
Performance classes according to DIN 41612
II
I
32
a + c fully loaded
20 8447 032 001 025
20 8447 032 001 049
32
a + c fully loaded
20 8447 032 002 025
20 8447 032 002 049
32
a + c fully loaded
20 8447 032 003 025
20 8447 032 003 049
32
a + c fully loaded
20 8447 032 006 025
20 8447 032 006 049
NB: Alternative Prefix Variations Available: 22, please refer to Page 10.
Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.
LOADING DESCRIPTION
●
●
●
●
●
●
●
●
●
●
DIMENSIONS
95.0 max
[3.743]
90.0 max
[3.543]
c
a
32 contacts, rows a + c fully loaded
c
10.6
[0.417]
32
30
28
1.60
[0.063] DIA.
6
2
a
2.90
[0.114]
4
2.84
[0.112]
"X"
5.08
[0.200]
5.6
[0.220]
5.08
[0.200]
15 EQ SP @ 5.08 [0.200] = 76.2 [3.000]
90.0
[3.543]
2.80
[0.110] DIA.
26

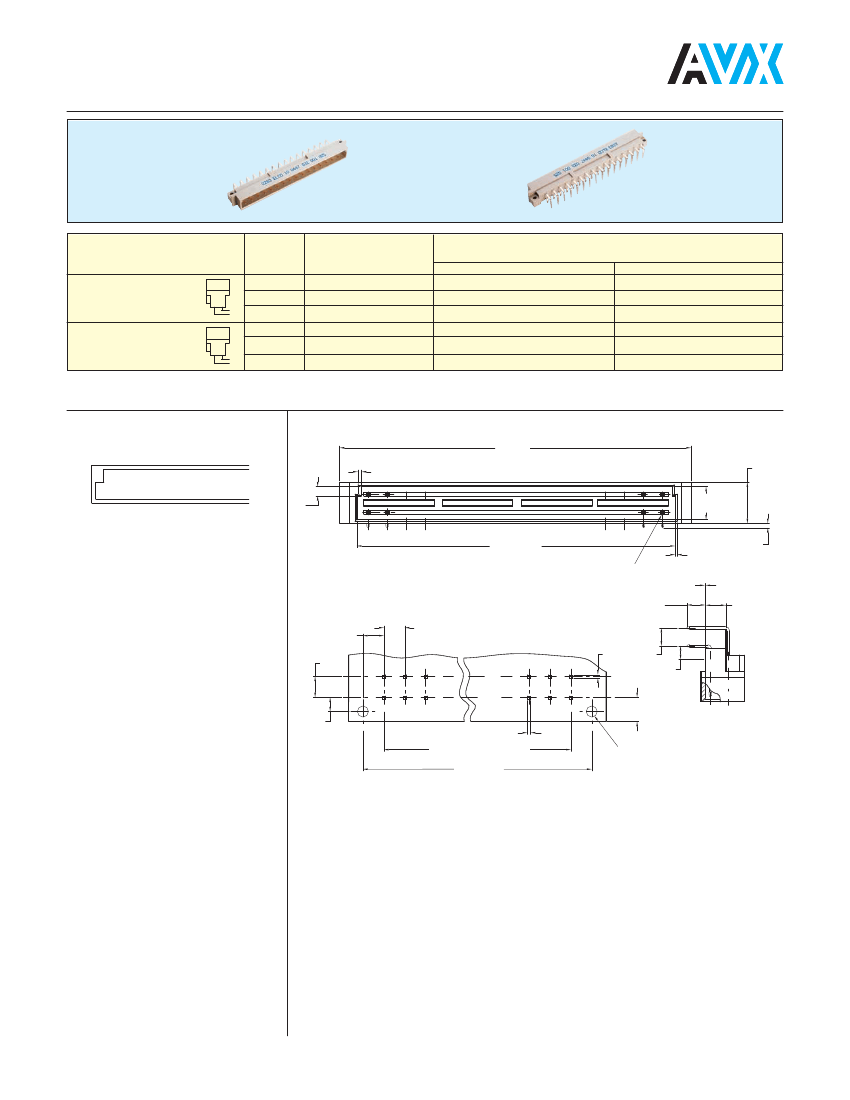

Male Style E
Series 8447 – 3 rows (3 x 16)
Contact Design
and
Termination Length
3.0 mm (Y) (0.6 x 0.6 mm)
Right Angled Pitch 5.08
3.0 mm (Y) (0.6 x 0.6 mm)
Right Angled Pitch 2.54
Number of
Contacts
48
Loading Description
a + c + e fully loaded
Part Number
Performance classes according to DIN 41612
II
I
10 8447 048 001 025
10 8447 048 001 049
48
a + c + e fully loaded
10 8447 048 002 025
10 8447 048 002 049
NB: Alternative Prefix Variations Available: 12, please refer to Page 10.
Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.
LOADING DESCRIPTION
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
DIMENSIONS
15 EQ SP @ 5.08 [0.200] = 76.2 [3.000]
Y
e
c
a
48 contacts, rows a + c + e fully loaded
13.8
[0.545]
16.1
[0.634]
85.3 [3.358]
93.9 [3.697]
2
88.9 [3.500]
For Y dimension
see contact design
12.7
[0.500]
2.54
[0.100] DIA.
15 EQ SP @ 5.08 [0.200] = 76.2 [3.000]
5.08
[0.200]
7.62
[0.300]
5.08
[0.200]
Ground pin not available
ROW E
ROW C
ROW A
10.16
[0.400]
2.54
[0.100]
1.02 DIA.
[0.040]
88.9 [3.500]
HOLE PATTERN
2.84 DIA.
[0.112]
27

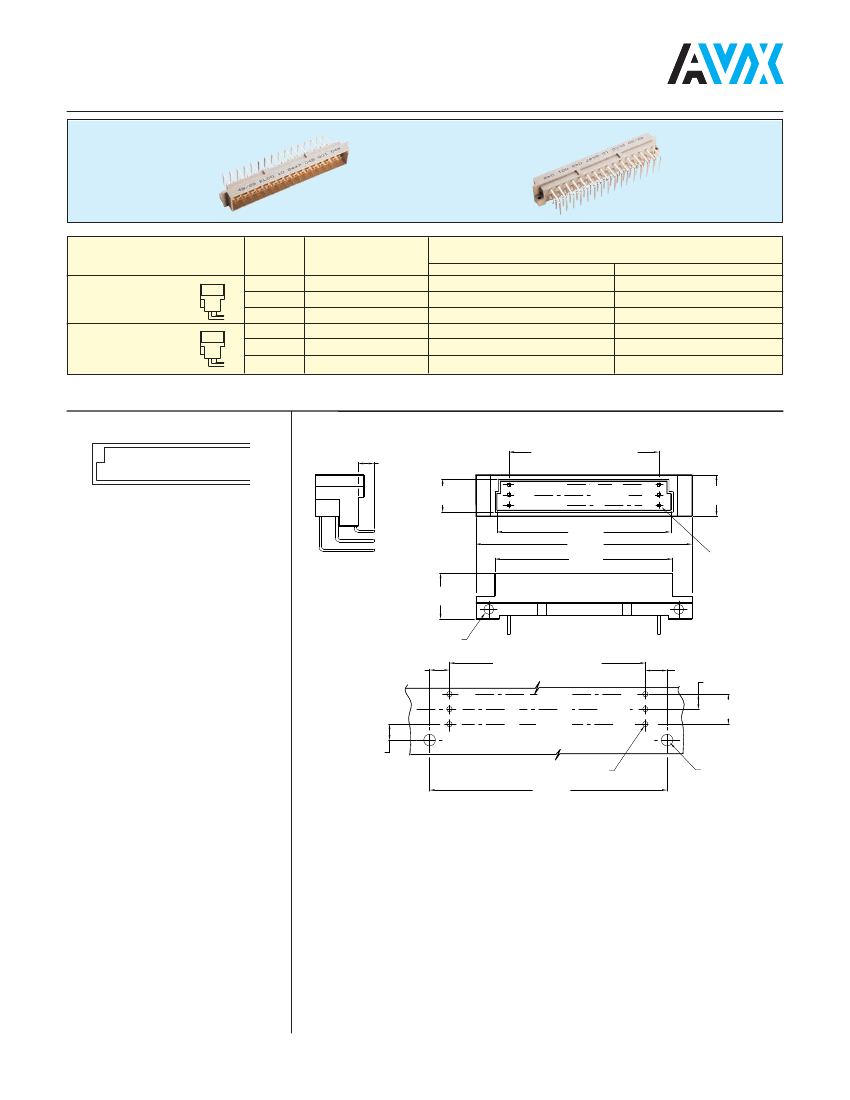

Female Style E
Series 8447 – 3 rows (3 x 16)
Contact Design
and
Termination Length
1 x 1 mm Post Profile
20.0 mm (Y) Straight
1 x 1 mm Post Profile
9.0 mm (Y) Straight
0.6 x 0.6 mm Post Profile
4.0 mm (Y) Straight
0.6 x 1.28 mm Post Profile
4.5 mm (Y) Straight
Number of
Contacts
Loading Description
Part Number
Performance classes according to DIN 41612
II
I
48
a + c + e fully loaded
20 8447 048 001 025
20 8447 048 001 049
48
a + c + e fully loaded
20 8447 048 002 025
20 8447 048 002 049
48
a + c + e fully loaded
20 8447 048 003 025
20 8447 048 003 049
48
a + c + e fully loaded
20 8447 048 006 025
20 8447 048 006 049
NB: Alternative Prefix Variations Available: 22, please refer to Page 10.
Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.
LOADING DESCRIPTION
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
DIMENSIONS
15 EQ SP @ 5.08 [0.200] = 76.2 [3.000]
2
e
c
a
13.56
[0.534]
15.57
[0.613]
48 contacts, rows a + c + e fully loaded
2.54 DIA.
[0.100]
90.0 [3.543]
94.9 [3.736]
84.9 [3.343]
Y
11.58
[0.456]
For Y dimension see
contact design
15 EQ SP @ 5.08 [0.200] = 76.2 [3.000]
1.78 DIA.
[0.070]
2.54
[0.100]
ROW A
2.24
[0.088]
ROW E
2.84 DIA.
[0.112]
ROW C
5.08
[0.200]
90.0 [3.543]
HOLE PATTERN
28
