83-59SP: DescriptionRF connectors / coaxial connectors srt crmp plg rg59; CategoryThe connector; File Size45KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

83-59SP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	83-59SP	-	-	View	Buy Now

83-59SP Overview

RF connectors / coaxial connectors srt crmp plg rg59

83-59SP Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	Connectors
RF Series	UHF
Gende	Plug
Polarity	Standard
Impedance	Non-Cons
Maximum Frequency	0.3 GHz
Body Material	Brass
Body Finish	Nickel
Contact Material	Brass
Contact Plating	Silve
Contact Terminati	Solde
Mounting Type	-
Termination Style	Cable - Crim
Coupling Mechanism	Threaded
Orientati	Straigh
Mating Cycles	500
Operating Temperature Range	- 65 C to + 165 C
Packaging	Bulk

Preview

Download Datasheet

View All

UHF

Plugs, Reducing Adapters

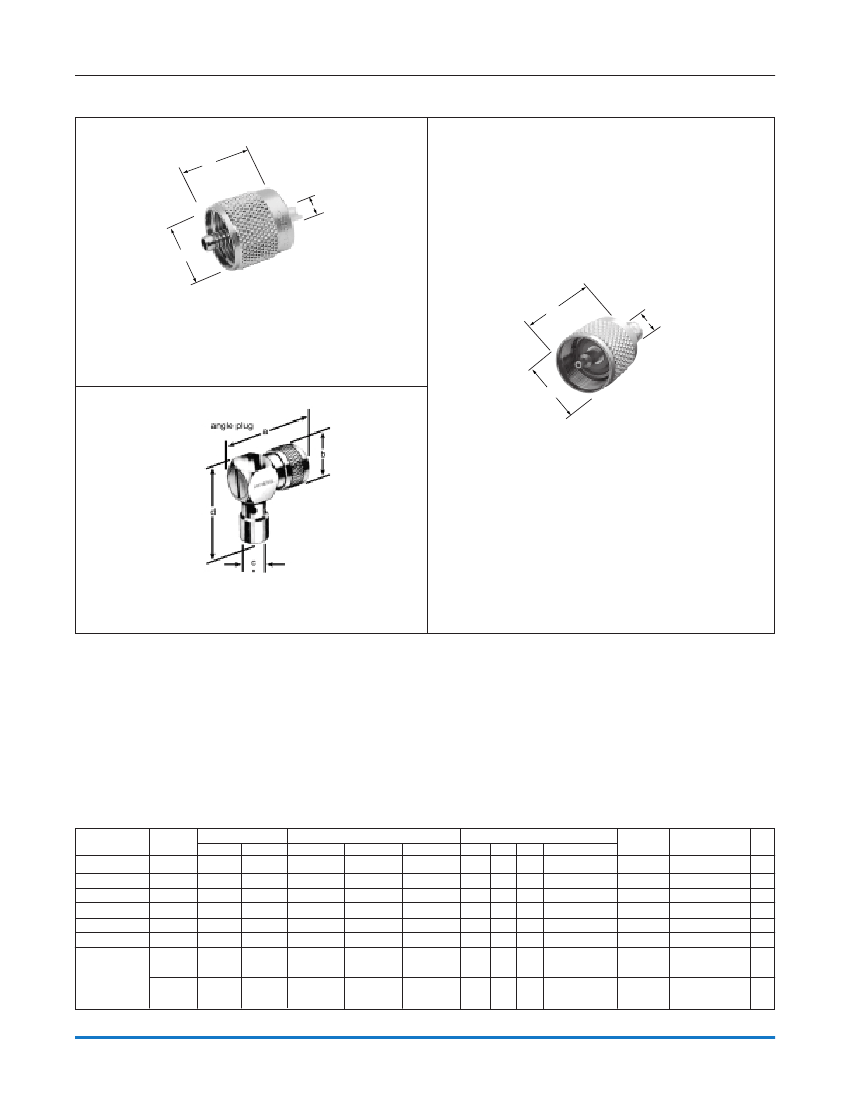

Fig. 1

a

Amphenol

®

Fig. 2

c•

b

a

c•

UHF Crimp Type Plugs

83-58SP

83-58SP-1002

Fig. 3

b

UHF Right Angle Plugs

83-67

83-59

UHF Reducing Adapters

83-59DCP-RFX

83-58SCP-RFX

83-59SP

83-8SP-RFX

UHF CABLE PLUGS, REDUCING ADAPTERS

Cable

RG-/U

58, 142

400

59

58

59

8

8, 9, 11, 13,

63, 87A, 149,

213, 214,

216, 225

• accommodates cable diameter

L

distributor stocked

I

includes outer ferrule

❑

US patent 4,053,200

Conn

Type

Plug

R/A Plug

Cable Attachment Dimensions, inches (millimeters)

Outer

Inner

a

b

c

G

Crimp

Solder

1.31(33.3)

I

.750(19.0)

.206(5.3)

Crimp

Solder

1.31(33.3)

1.39(35.4)

1.37(34.9)

.750(19.0)

.716(18.2)

.750(19.0)

.206(5.3)

.257(6.6)

.206(5.3)

.257(6.6)

.429(10.9)

.444(11.3)

Construction Notes

CAI Plt. Ins.

Other

C4

P1 D30

C4

C1

P1

D1

D24

D3

D24

D1

D6

Teflon Insulation

Styrene

Insulation

Teflon Insulation

Military

Number

—

Amphenol

Number

83-58SP

83-58SP-1002

83-59DCP-RFX

83-58SCP-RFX

83-59SP

83-8SP-RFX

83-67

83-59

Fig.

1

2

3

L

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

188

83-59SP Related Products

	83-59SP	83-8SP-RFX
Description	RF connectors / coaxial connectors srt crmp plg rg59	RF connectors / coaxial connectors strt plg rg8/213
Manufacture	Amphenol	Amphenol
Product Category	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors
RoHS	Yes	Yes
Produc	Connectors	Connectors
RF Series	UHF	UHF
Gende	Plug	Plug
Polarity	Standard	Standard
Impedance	Non-Cons	Non-Cons
Maximum Frequency	0.3 GHz	0.3 GHz
Body Material	Brass	Brass
Body Finish	Nickel	Nickel
Contact Material	Brass	Brass
Contact Plating	Silve	Silve
Contact Terminati	Solde	Solde
Termination Style	Cable - Crim	Cable - Crim
Coupling Mechanism	Threaded	Threaded
Orientati	Straigh	Straigh
Mating Cycles	500	500
Operating Temperature Range	- 65 C to + 165 C	- 65 C to + 165 C
