245903-09-48.00 datasheet, PDF

Datasheet> All Categories > The connector> 245903-09-48.00

245903-09-48.00: DescriptionRF cable assemblies 1.0/2.3 strg plug TO bnc strg plug; CategoryThe connector; File Size136KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

245903-09-48.00 Overview

RF cable assemblies 1.0/2.3 strg plug TO bnc strg plug

245903-09-48.00 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Cable Assemblies
Frequency Range	DC to 6 GHz
Impedance	75 Ohms
Length	48 i
Connector A Body Style	Straigh
Connector A Series	1.0/2.3
Connector B Body Style	Straigh
Connector B Series	BNC
Connector A Gende	Plug (Male)
Connector A Polarity	Normal
Connector B Gende	Plug (Male)
Connector B Polarity	Normal

Preview

Download Datasheet

View All

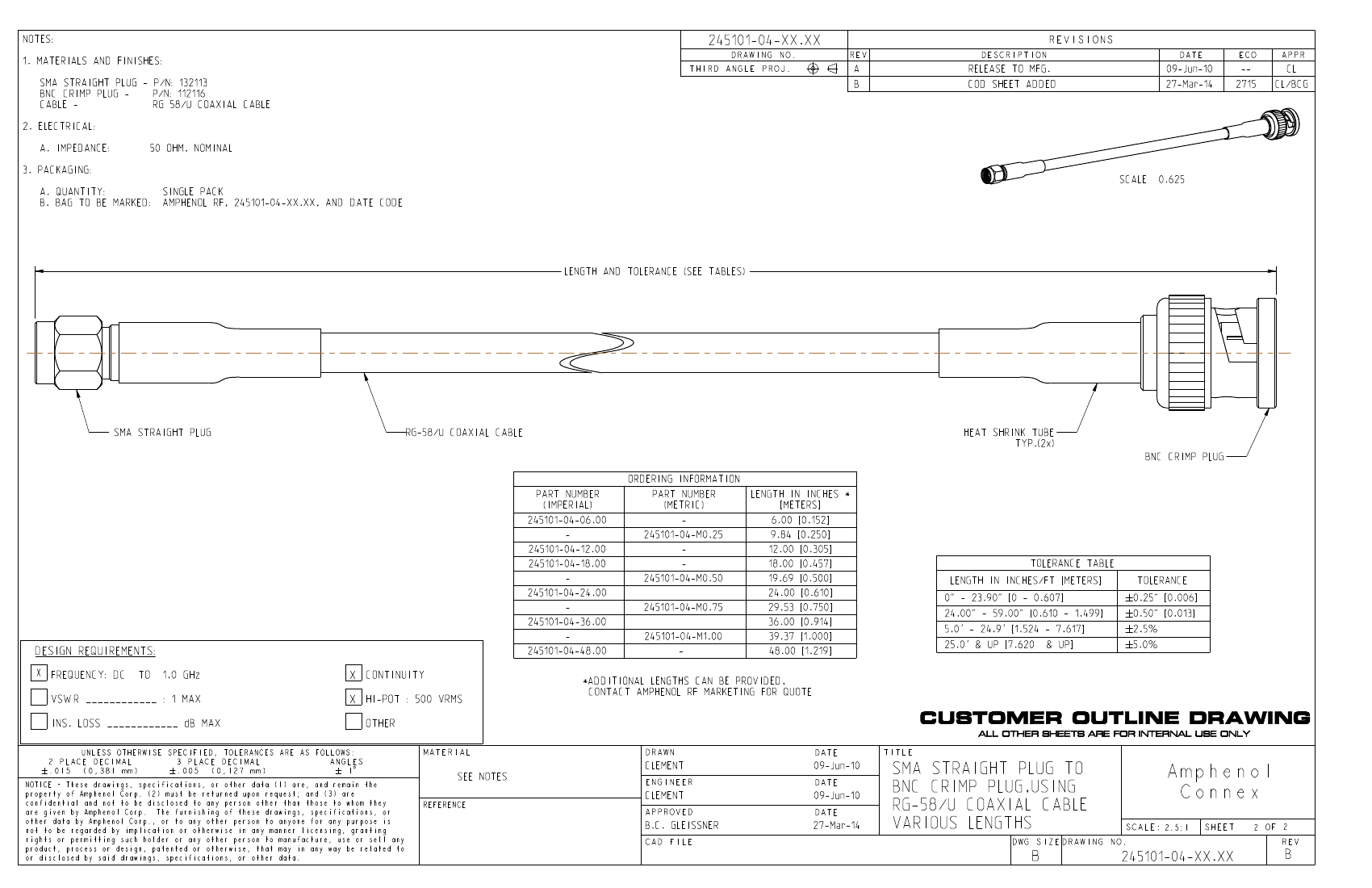

NOTES:

1. MATERIALS AND FINISHES:

SMA STRAIGHT PLUG - P/N: 132113

BNC CRIMP PLUG -

P/N: 112116

CABLE -

RG 58/U COAXIAL CABLE

2. ELECTRICAL:

A. IMPEDANCE:

3. PACKAGING:

A. QUANTITY:

B. BAG TO BE MARKED:

SINGLE PACK

AMPHENOL RF, 245101-04-XX.XX, AND DATE CODE

50 OHM, NOMINAL

245101-04-XX.XX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

RELEASE TO MFG.

DESCRIPTION

COD SHEET ADDED

09-Jun-10

DATE

ECO

27-Mar-14

2715

APPR

CL/BCG

SCALE

0.625

LENGTH AND TOLERANCE (SEE TABLES)

SMA STRAIGHT PLUG

RG-58/U COAXIAL CABLE

HEAT SHRINK TUBE

TYP.(2x)

ORDERING INFORMATION

PART NUMBER

(METRIC)

BNC CRIMP PLUG

245101-04-06.00

245101-04-12.00

PART NUMBER

(IMPERIAL)

LENGTH IN INCHES *

[METERS]

6.00 [0.152]

9.84 [0.250]

245101-04-M0.25

245101-04-18.00

245101-04-24.00

245101-04-36.00

12.00 [0.305]

245101-04-M0.50

245101-04-M0.75

245101-04-M1.00

18.00 [0.457]

24.00 [0.610]

36.00 [0.914]

19.69 [0.500]

29.53 [0.750]

39.37 [1.000]

TOLERANCE TABLE

LENGTH IN INCHES/FT [METERS]

0" - 23.90" [0 - 0.607]

24.00" - 59.00" [0.610 - 1.499]

5.0' - 24.9' [1.524 - 7.617]

25.0' & UP [7.620 & UP]

TOLERANCE

0.50" [0.013]

5.0%

2.5%

0.25" [0.006]

DESIGN REQUIREMENTS:

245101-04-48.00

48.00 [1.219]

FREQUENCY: DC

1.0 GHz

CONTINUITY

HI-POT : 500 VRMS

OTHER

MATERIAL

VSWR ____________ : 1 MAX

INS. LOSS ____________ dB MAX

*ADDITIONAL LENGTHS CAN BE PROVIDED,

CONTACT AMPHENOL RF MARKETING FOR QUOTE

UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE AS FOLLOWS:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015 (0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

DRAWN

SEE NOTES

REFERENCE

CLEMENT

09-Jun-10

27-Mar-14

DATE

TITLE

ENGINEER

APPROVED

CAD FILE

B.C. GLEISSNER

SMA STRAIGHT PLUG TO

BNC CRIMP PLUG,USING

RG-58/U COAXIAL CABLE

VARIOUS LENGTHS

Amphenol

Connex

SCALE: 2.5:1

SHEET

2 OF 2

REV

DWG SIZE DRAWING NO.

245101-04-XX.XX
