85107-4452 datasheet, PDF - EEWORLD Datasheet

85107-4452: DescriptionBoard Connector, 369 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Wire Wrap Terminal, Guide Slot, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size175KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

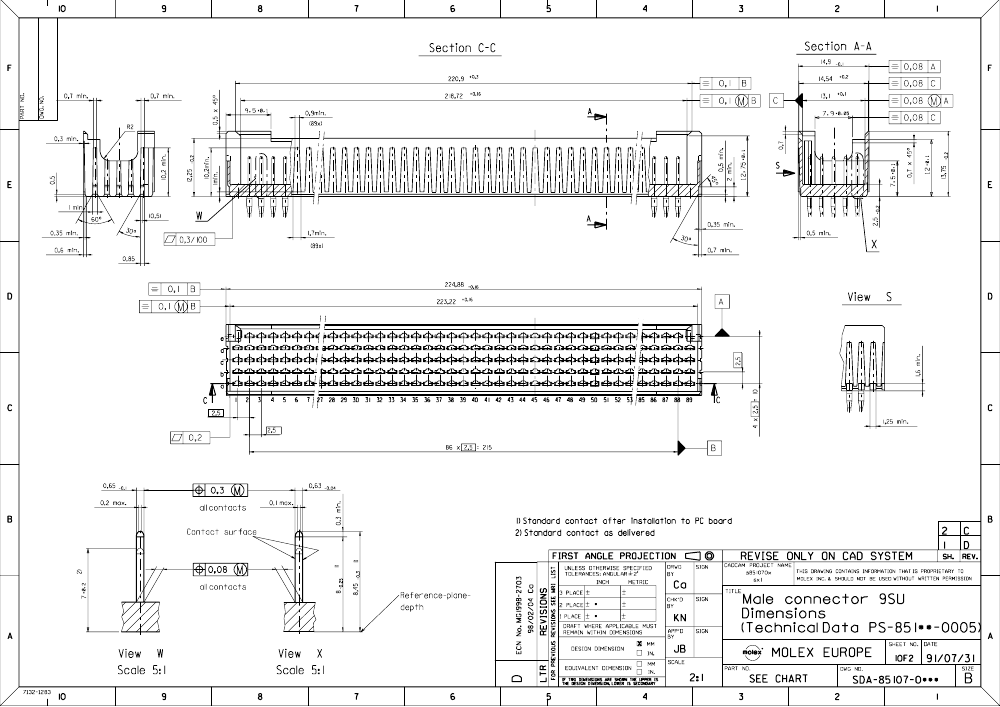

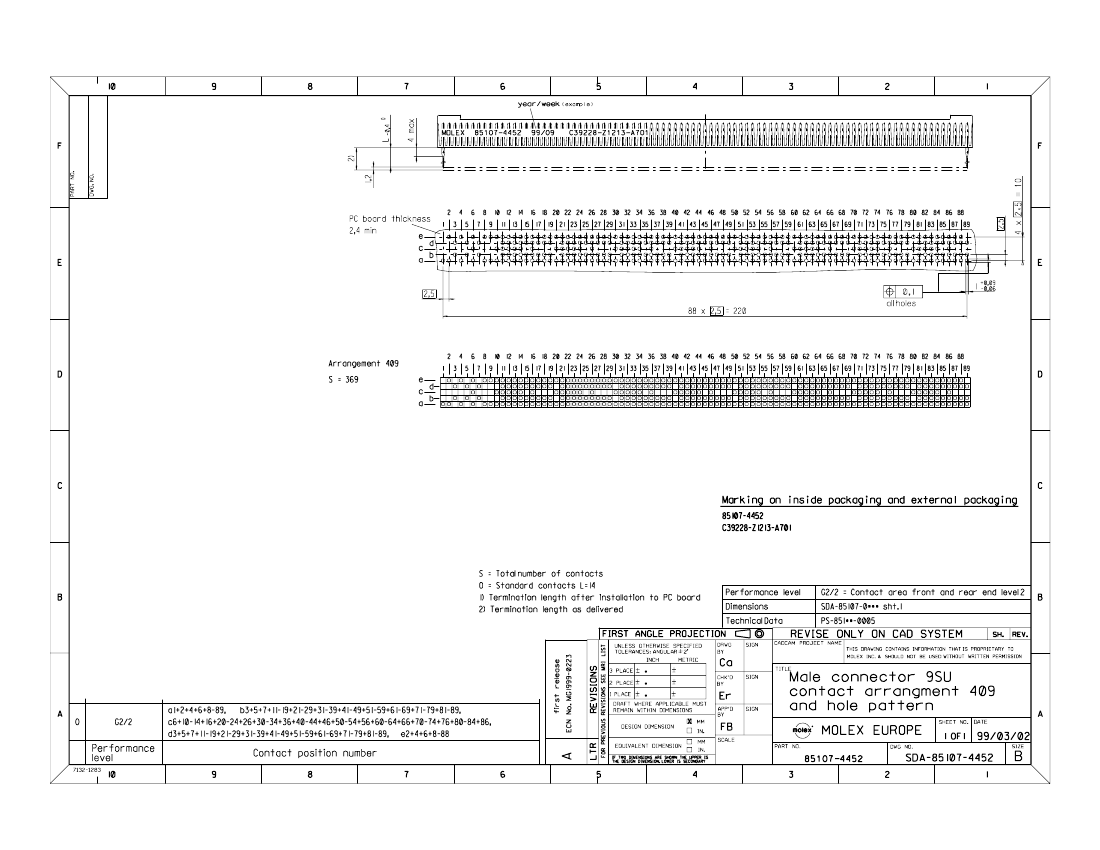

85107-4452 Overview

Board Connector, 369 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Wire Wrap Terminal, Guide Slot, Gray Insulator, Receptacle

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.587 inch
subject depth	0.541 inch
body length	8.854 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	BRONZE
contact mode	RECTANGULAR
Contact resistance	2.5 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
maximum insertion force	1.0008 N
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYCARBONATE
Manufacturer's serial number	85107
Plug contact pitch	0.098 inch
Match contact row spacing	0.098 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.4892 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.551 inch
Terminal pitch	2.4892 mm
Termination type	WIRE WRAP
Total number of contacts	369
Evacuation force-minimum value	.5838 N
Base Number Matches	1
