056200117052800 datasheet, PDF

056200117052800: DescriptionCard Edge Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Brown Insulator; CategoryThe connector The connector; File Size157KB，2 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

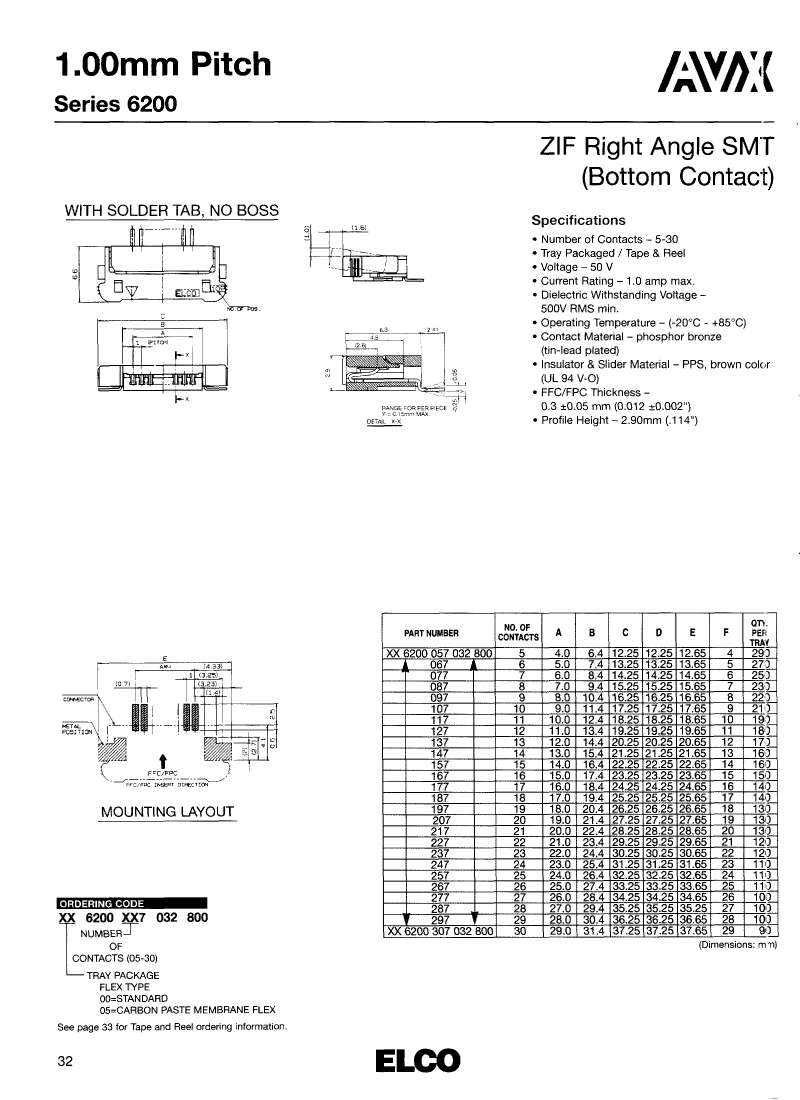

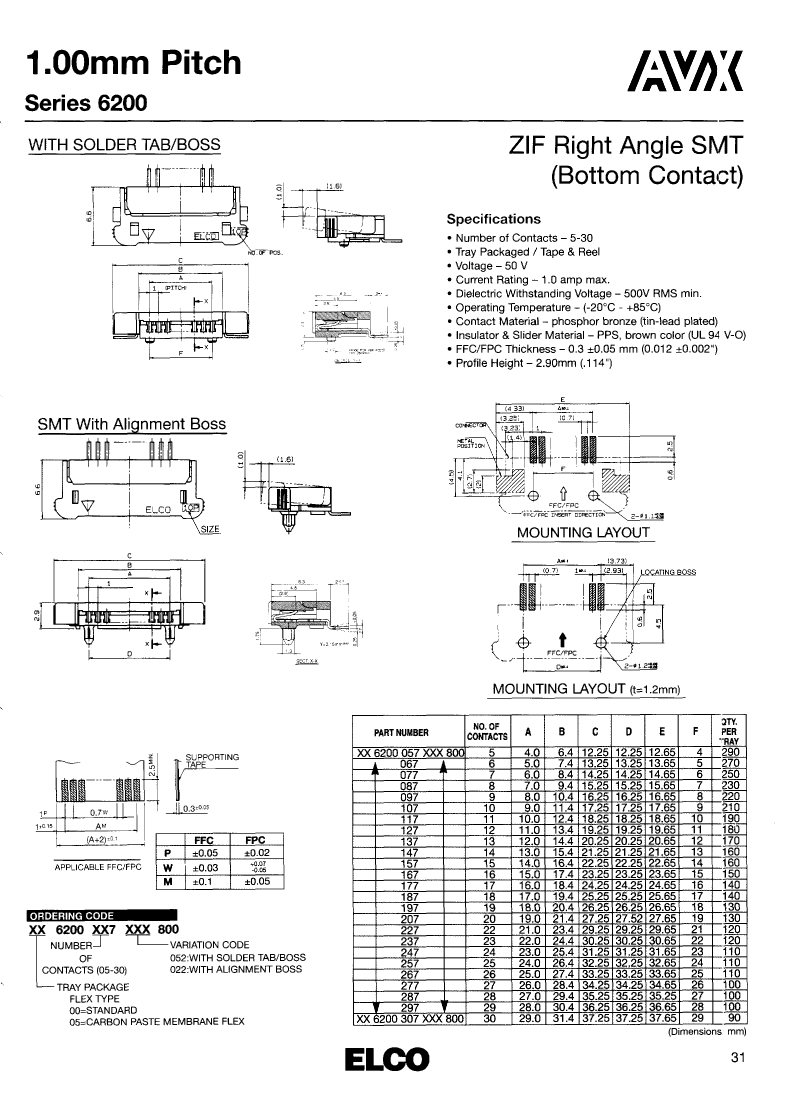

056200117052800 Overview

Card Edge Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Brown Insulator

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	NONE
Board mount options	POLARIZATION POST
body width	0.114 inch
subject depth	0.339 inch
body length	0.719 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1
