73075-UU-36: DescriptionRF cable assemblies mcx plug TO mcx plug rg178/U 36 inch; CategoryThe connector The connector; File Size140KB，2 Pages; ManufacturerPomona Electronics Inc.; Websitehttps://www.pomonaelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

73075-UU-36 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	73075-UU-36	-	-	View	Buy Now

73075-UU-36 Overview

RF cable assemblies mcx plug TO mcx plug rg178/U 36 inch

73075-UU-36 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pomona Electronics Inc.
Reach Compliance Code	unknow
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

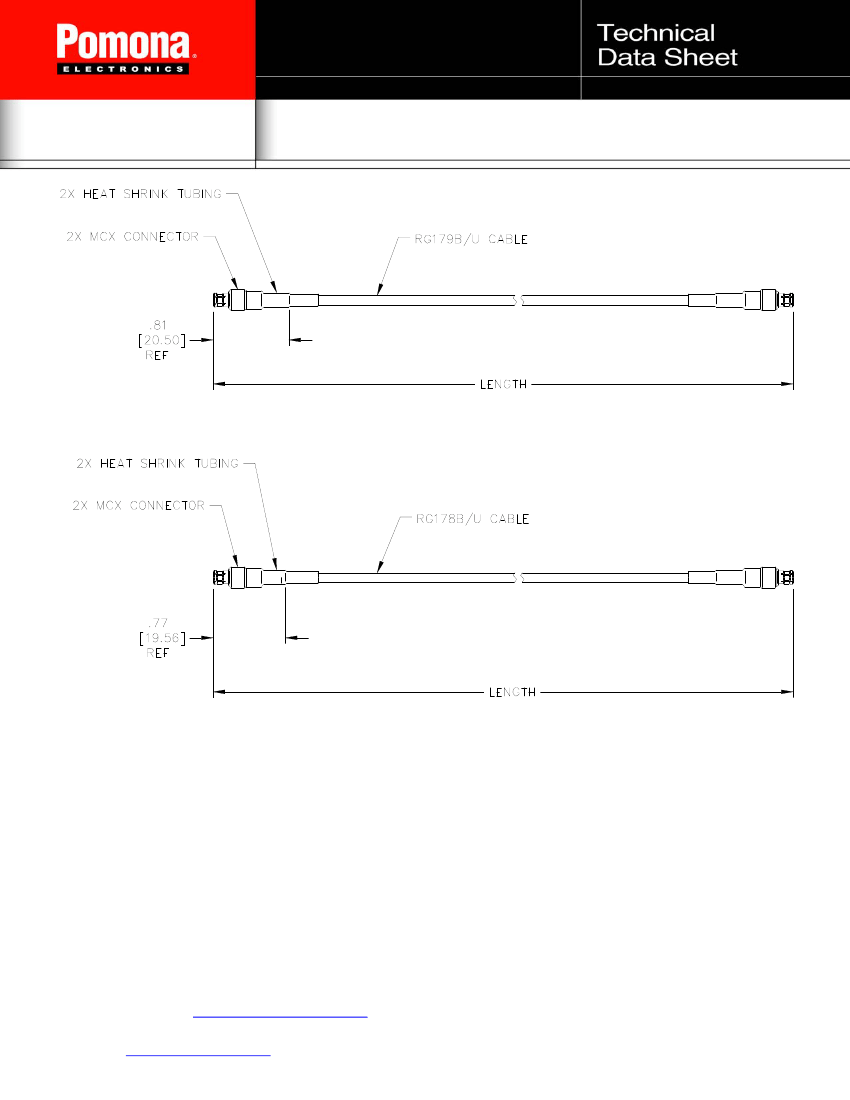

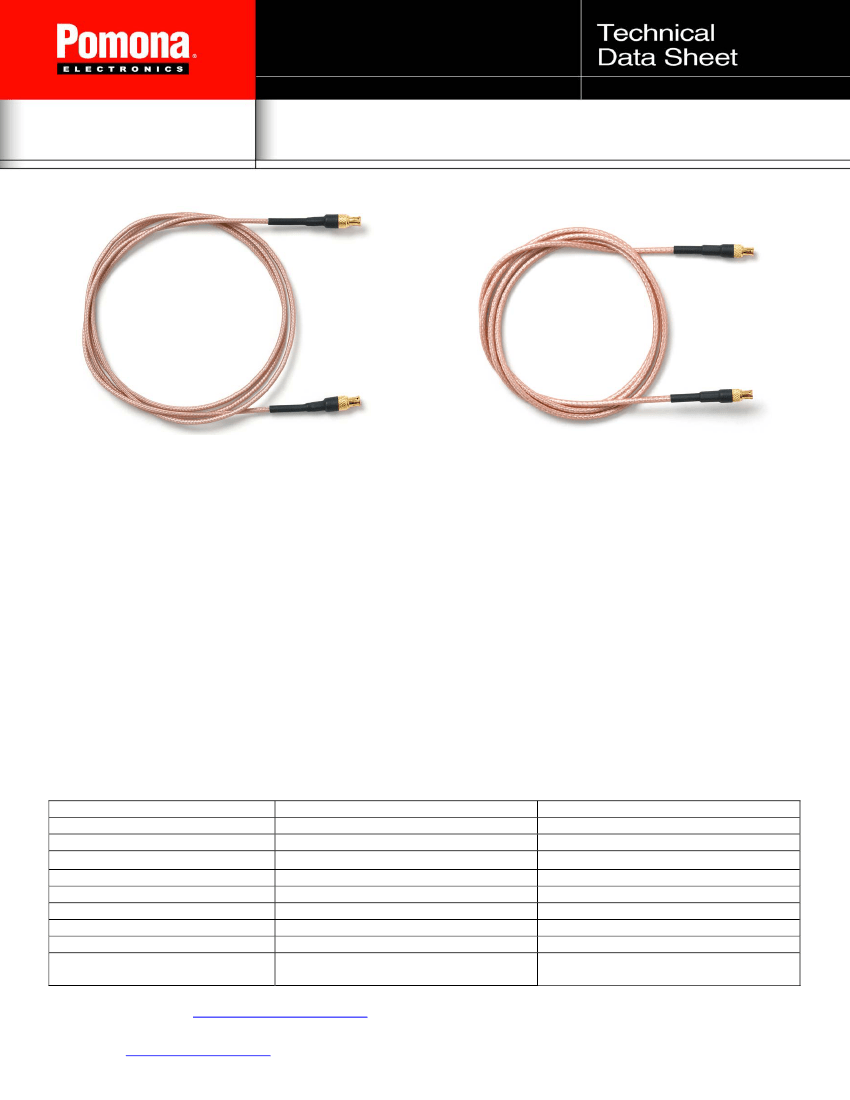

Model 73075

MCX Plug to MCX Plug, RG178B/U (50 Ohm), RG179B/U (75 Ohm)

Model 73075-UU

MCX Plug to MCX Plug, RG178B/U, 50 Ohm

Model 73075-VV

MCX Plug to MCX Plug, RG179B/U, 75 Ohm

Snap-on coupling and miniature size for fast connect and

disconnect where space is limited

Features

•

Small size and durability for confident connections.

Connectors are precision machined and gold-plated for low loss.

Perfect for applications where space, weight, performance and ease of connections are required.

Materials

MCX Male Connectors (50 Ohm):

Center Contact: Phosphor Bronze, Gold Plated

Connector Body: Brass, Gold Plated

Crimp Ferrule: Copper, Nickel Plated

Insulators: PTFE

MCX Male Connectors (75 Ohm):

Center Contact: Phosphor Bronze, Gold Plated

Connector Body: Brass, Gold Plated

Crimp Ferrule: Copper, Nickel Plated

Insulators: PTFE

Specifications

Cable Type

Impedance

Frequency Range

Capacitance per 1ft (0.305m)

Insulation Resistance

Insulator Withstand

Temperature Range

Jacket

Cable O.D. (inches)

Center Conductor (mm)

USA:

RG178B/U

50Ω

DC - 3GHz

29.0 pF

≥

1000 MΩ

750V

-55º C to +155ºC (-67ºF to +311ºF)

FEP

0.071” (1.8mm))

7 x .1 silver coated copper covered

steel

RG179B/U

75Ω

DC – 1.5GHz

19.5 pF

≥

1000 MΩ

750V

-55º C to +155ºC (-67ºF to +311ºF)

FEP

0.100” (2.54mm)

7 x .1 silver coated copper covered

steel

Sales: 800-490-2361

Technical Support:

technicalsupport@pomonatest.com

Fax: 425-446-5844

Europe:

31-(0) 40 2675 150

International:

425-446-5500

Where to Buy:

www.pomonaelectronics.com

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),

.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.

Specifications are subject to change without notice. Registered trademarks are

the property of their respective companies.

D2018872 Rev. 001

Page 1 of 2
