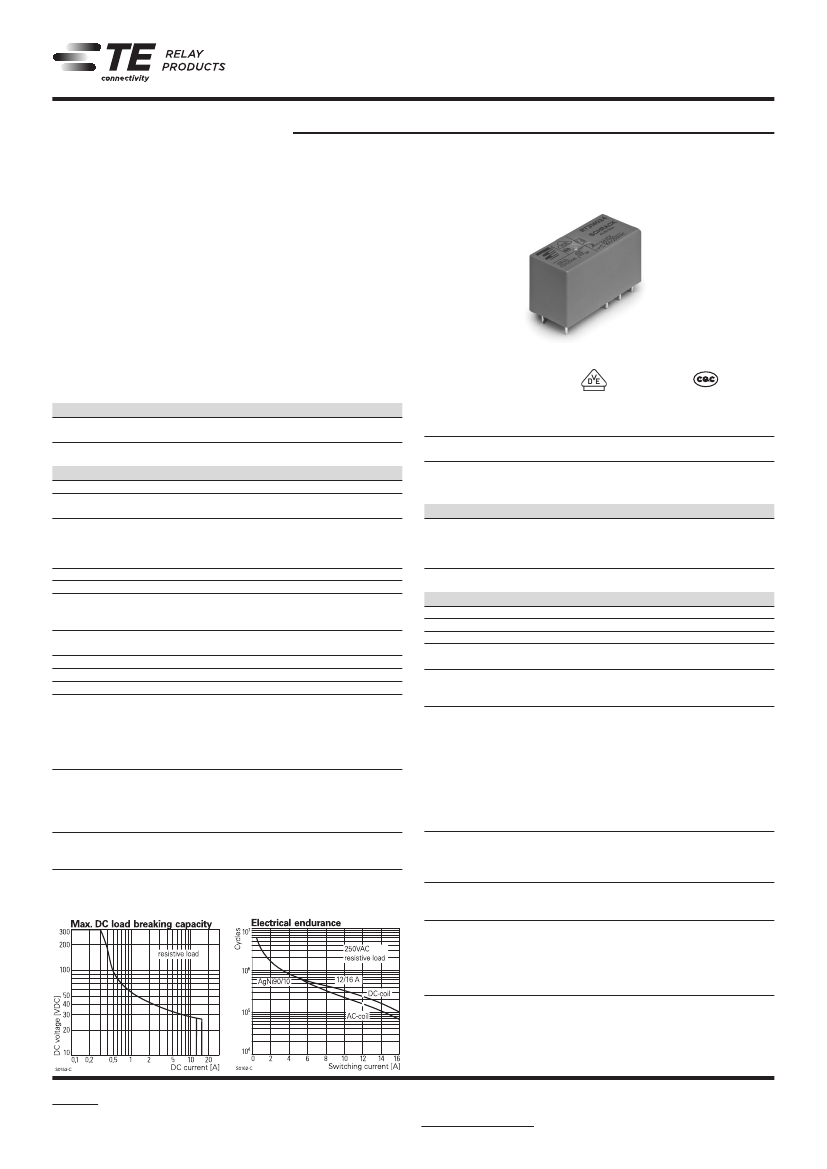

General Purpose Relays
PCB Relays
Power PCB Relay RT1
n
n
n
n
n
n
SCHRACK
1 pole 12A/16A, 1 form C (CO) or 1 form A (NO) contact
DC or AC coil
5kV/10mm coil-contact, reinforced insulation
Ambient temperature 85°C (DC coil)
WG version: product in accordance to IEC 60335-1
Reflow version: for THR (Through-Hole Reflow) soldering process
Typical applications
Boiler control, timers, garage door control, POS automation, interface
modules
F0144-C
Zb
EN60947-5-1
RT314 DC-coil A/B (NO/NC) 2A, 24VDC, DC13
RT314
A (NO)
250/3A, AC-15
EN60730-1
RT314 DC-coil A (NO)
12(2)A, 250VAC, 85°C
6.050
6.050
100x10
3
Approvals
VDE Cert. No. 40007571, cULus E214025, cCSAus 1142018;
CQC 18002197247
Technical data of approved types on request
Contact Data
Contact arrangement
1 form C (CO) or 1 form A (NO)
Rated voltage
250VAC
Max. switching voltage
400VAC
Rated current
12A
16A
Limiting continuous current
12A
16A, UL: 20A
Limiting making current
max. 4s, duty factor 10%
25A
30A
Breaking capacity max.
3000VA
4000VA
Contact material
AgNi 90/10, AgNi 90/10 gold plated
Frequency of operation, with/without load
DC coil
360/72000h
-1
AC coil
360/36000h
-1
Operate/release time max., DC coil
8/6ms
Bounce time max., DC coil, form A/form B
4/6ms
Electrical endurance
see electrical endurance graph
1)
Contact ratings
Type
Contact
Load
Cycles
IEC 61810
RT314 DC-coil A (NO)
16A, 250VAC, cosφ=1, 85°C
30x10
3
RT314 DC-coil C (CO)
16A, 250VAC, cosφ=1, 85°C
10x10
3
RT314 DC-coil A (NO)
10A, 400VAC, cosφ=1, 85°C
150x10
3
RT114 DC-coil A (NO)
12A, 250VAC, cosφ=1, 85°C
50x10
3
RT114 AC-coil A (NO)
12A, 250VAC, cosφ=1, 70°C
100x10
3
UL 508
RT314
A/B (NO/NC) 20A, 250VAC, general purpose, 85°C 6x10
3
RT334
A (NO)
16A, 250VAC, gen. purpose, 85°C
50x10
3
RT314
A (NO)
1hp, 240VAC, 40°C
1x10
3
RT314
A (NO)
FLA/LRA, 4.5/13.1A, 480VAC, 70°C 100x10
3
EN60947-4-1
RT314 DC-coil A (NO)
250V/6A, AC-3
6.050
RT314 AC-coil A (NO)
250V/2A, AC-3
6.050
12A
16A
1) For reflow solderable versions: actual contact performance may be influenced by the
reflow soldering process.
Contact Data
(continued)
Mechanical endurance
DC coil
AC coil
AC coil, reflow version
>30x10
6
operations
>10x10
6
operations
>5x10
6
operations
Coil Data
Coil voltage range, DC coil/ AC coil
Operative range, IEC 61810
Coil insulation system according UL
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
005
5
3.5
006
6
4.2
009
9
6.3
012
12
8.4
018
18
12.6
020
20
14.0
024
24
16.8
048
48
33.6
060
60
42.0
110
110
77.0
5 to 110VDC / 24 to 230VAC
2
class F
Release
voltage
VDC
0.5
0.6
0.9
1.2
1.8
2.0
2.4
4.8
6.0
11.0
Coil
resistance
Ω±10%
2)
62
90
200
360
770
952
1440
5520
8570
2)
28800
2)
Rated coil
power
mW
403
400
400
400
420
420
400
417
420
420
2) Coil resistance ±12%.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
Coil versions, AC coil 50/60 Hz
Coil
Rated
Operate
code
voltage
voltage
VAC
VAC
524
24
18.0
548
48
36.0
615
115
86.3
620
120
90.0
700
200
150.0
730
230
172.5
Release
voltage
VAC
3.6
7.2
17.3
18.0
30.0
34.5
Coil
resistance
Ω±15%
3)
350
3)
1420
8100
8800
24350
32500
Rated coil
power
VA
0.76
0.74
0.76
0.75
0.76
0.74
3) Coil resistance ±10%.
All figures are given for coil without pre-energization, at ambient temperature +23°C, 50 Hz.
01-2020, Rev. 0120
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
PCB Relays
Power PCB Relay RT1
(Continued)
form A/form B contact, 30 to 500Hz
Shock resistance (destructive)
SCHRACK
20g/5g
100g
Other Data
(continued)
Other coil voltages on request.
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
Clearance/creepage
between contact and coil
Material group of insulation parts
Tracking index of relay base
reflow version
Terminal type
standard version
PCB-THT, plug-in
reflow version
PCB-THR
Mounting distance
AC coil: ≥2.5mm
Weight
14g
Resistance to soldering heat THT, IEC 60068-2-20
RTII
270°C/10s
RTIII
260°C/5s
Resistance to soldering heat THR
reflow soldering (for reflow version)
forced gas convection
4)
or
vapour phase
5)
temperature profile
according EN61730
Packaging/unit
tube/20 pcs., box/500 pcs.
1000V
rms
5000V
rms
≥10/10mm
IIIa
PTI 250V
PTI 175V
4) infrared heating not allowed
5) recommended fluid LS/230
Accessories
For details see datasheet
Accessories Industrial Power Relay RT
NOTE: indicated contact ratings and electrical endurance data for direct
wiring of relays (according IEC 61810-1); for relays mounted on sockets
deratings may apply.
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Resistance to heat and fire
WG version or Reflow version
according EN60335, par30
Ambient temperature
DC coil
-40 to 85°C
AC coil
-40 to 70°C
Category of environmental protection, IEC 61810
standard version
RTII - flux proof, RTIII - wash tight
reflow version
RTII - flux proof
Vibration resistance (functional)

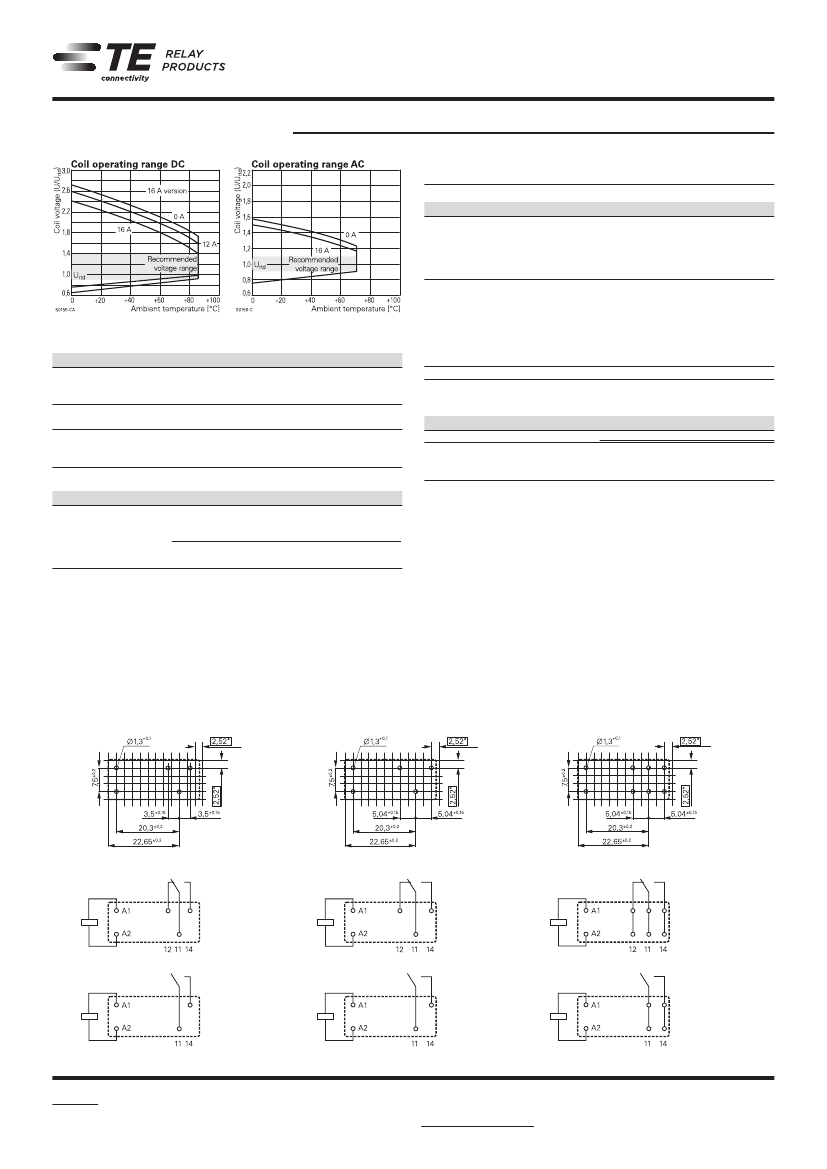

PCB layout / terminal assignment
Bottom view on solder pins
*) With the recommended PCB hole sizes a grid
pattern from 2.5mm to 2.54mm can be used.
12A, pinning 3.5mm
12A, pinning 5mm
16A, pinning 5mm
S0418-CB
S0418-CN
S0418-CA
1 form C (CO) contact
1 form C (CO) contact
1 form C (CO) contact
S0163-BG
S0163-BC
S0163-BE
1 form A (NO) contact
1 form A (NO) contact
1 form A (NO) contact
S0163-BH
S0163-BD
S0163-BF
2
01-2020, Rev. 0120
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
General Purpose Relays
PCB Relays
Power PCB Relay RT1
(Continued)

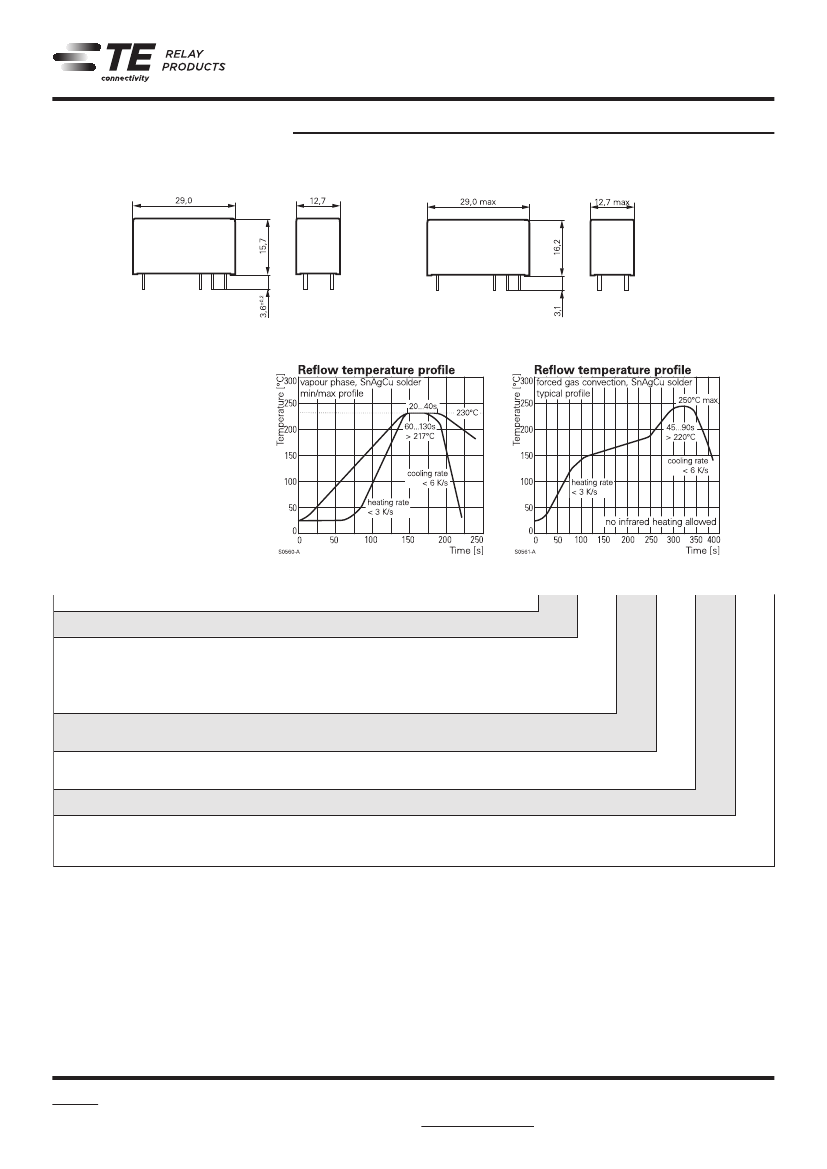

Dimensions
SCHRACK
THT version
THR version (reflow solderable)
S0272-BB
S0272-BRB
Process conditions for Reflow soldering
according to EN61760-1
Product code structure
Type
RT
Power PCB Relay RT1
Version
1
12A, pinning 3.5mm, flux proof
2
12A, pinning 5mm, flux proof *)
3
16A, pinning 5mm, flux proof
B
12A, pinning 3.5mm, wash tight
D
16A, pinning 5mm, wash tight
Contact arrangement
1
1 form C (CO) contact
3
1 form A (NO) contact
Contact material
4
AgNi 90/10
5
AgNi 90/10 gold plated (for type RT31.)
Coil
Coil code: please refer to coil versions table
Version
Blank
Standard version
WG
Product in accordance with IEC 60335-1 (domestic appliances)
R
Reflow solderable
*) Wash tight version on request
Typical product code
RT
3
1
4
024
01-2020, Rev. 0120
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
General Purpose Relays
PCB Relays
Power PCB Relay RT1
(Continued)
Product code
RT114009
RT114012
RT114012WG
RT114024
RT114024WG
RT114730
RT115024
RT134012
RT134024
RT214012
RT214024
RT214524
RT214730
RT314005
RT314006
RT314009
RT314012
RT314012R
RT314012WG
RT314018
RT314024
RT314024WG
RT314048
RT314060
RT314110
RT314524
RT314548
RT314615
RT314730
RT314730WG
RT315024
RT334009WG
RT334012
RT334012WG
RT334024
RT334048
RTB14005
RTB14012
RTB14024
RTB14524
RTB34012
RTD14005
RTD14012
RTD14024
RTD14048
SCHRACK
12A,
pinning 3.5mm,
flux proof
Version
12A,
pinning 5mm,
flux proof
16A,
pinning 5mm,
flux proof
12A,
pinning 3.5mm,
wash tight
16A,
pinning 5mm,
wash tight
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form A (NO)
1 form A (NO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form A (NO)
1 form A (NO)
1 form A (NO)
1 form A (NO)
1 form A (NO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form A (NO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
1 form C (CO)
Contacts
Contact material
AgNi 90/10
AgNi 90/10 gold pl.
AgNi 90/10
AgNi 90/10 gold pl.
AgNi 90/10
9VDC
12VDC
12VDC
24VDC
24VDC
230VAC
24VDC
12VDC
24VDC
12VDC
24VDC
24VAC
230VAC
5VDC
6VDC
9VDC
12VDC
12VDC
12VDC
18VDC
24VDC
24VDC
48VDC
60VDC
110VDC
24VAC
48VAC
115VAC
230VAC
230VAC
24VDC
9VDC
12VDC
12VDC
24VDC
48VDC
5VDC
12VDC
24VDC
24VAC
12VDC
5VDC
12VDC
24VDC
48VDC
Coil
Version
Standard
IEC60335-1 compliant
Standard
IEC60335-1 compliant
Standard
Part number
1393239-9
1419108-1
7-1415538-6
1-1393239-3
1415539-4
1-1393239-9
2-1393239-1
2-1393239-6
3-1393239-0
5-1393239-4
5-1393239-5
5-1393239-9
1419108-6
9-1393239-1
9-1393239-3
9-1393239-4
9-1393239-5
4-1415543-6
8-1415535-6
9-1393239-7
9-1393239-8
1415538-7
1393240-1
1-1649328-7
1393240-3
1393240-4
1393240-5
1393240-6
1393240-7
4-1415538-0
1-1393240-4
3-1415538-1
4-1393240-5
1-1415527-1
4-1393240-8
5-1393240-0
1-1393238-2
1-1393238-5
1-1393238-9
2-1393238-4
3-1393238-0
5-1393238-9
6-1393238-2
6-1393238-8
6-1393238-9
Reflow solderable
IEC60335-1 compliant
Standard
IEC60335-1 compliant
Standard
IEC60335-1 compliant
Standard
IEC60335-1 compliant
Standard
IEC60335-1 compliant
Standard
This list represents the most common types and does not show all variants covered by this datasheet.
Other types on request
4
01-2020, Rev. 0120
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
京公网安备 11010802033920号
EEWORLD
