20-8477-032-008-097 datasheet, PDF

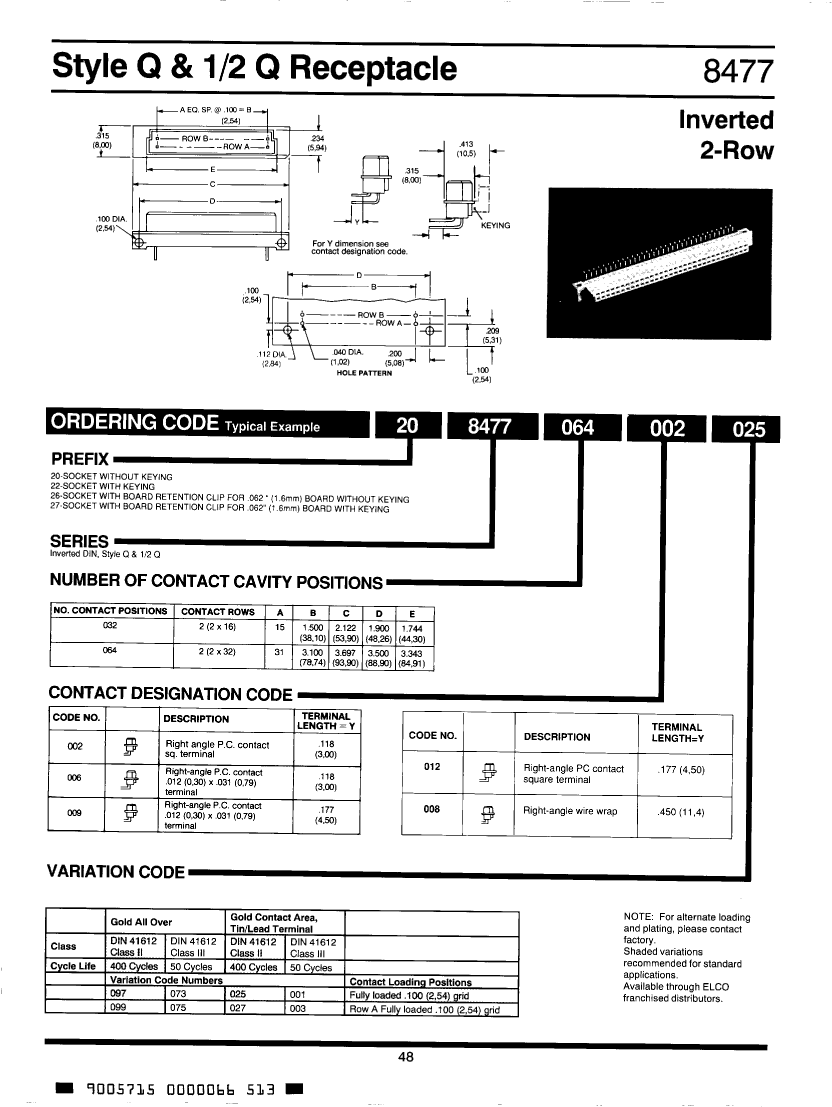

20-8477-032-008-097: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Plug; CategoryThe connector The connector; File Size205KB，3 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

20-8477-032-008-097 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Wire Wrap Terminal, Hole .099-.111, Plug

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
body width	0.315 inch
body length	2.122 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
maximum insertion force	89.8496 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8477
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	HOLE .099-.111
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.45 inch
Termination type	WIRE WRAP
Total number of contacts	32
Evacuation force-minimum value	.139 N
Base Number Matches	1
