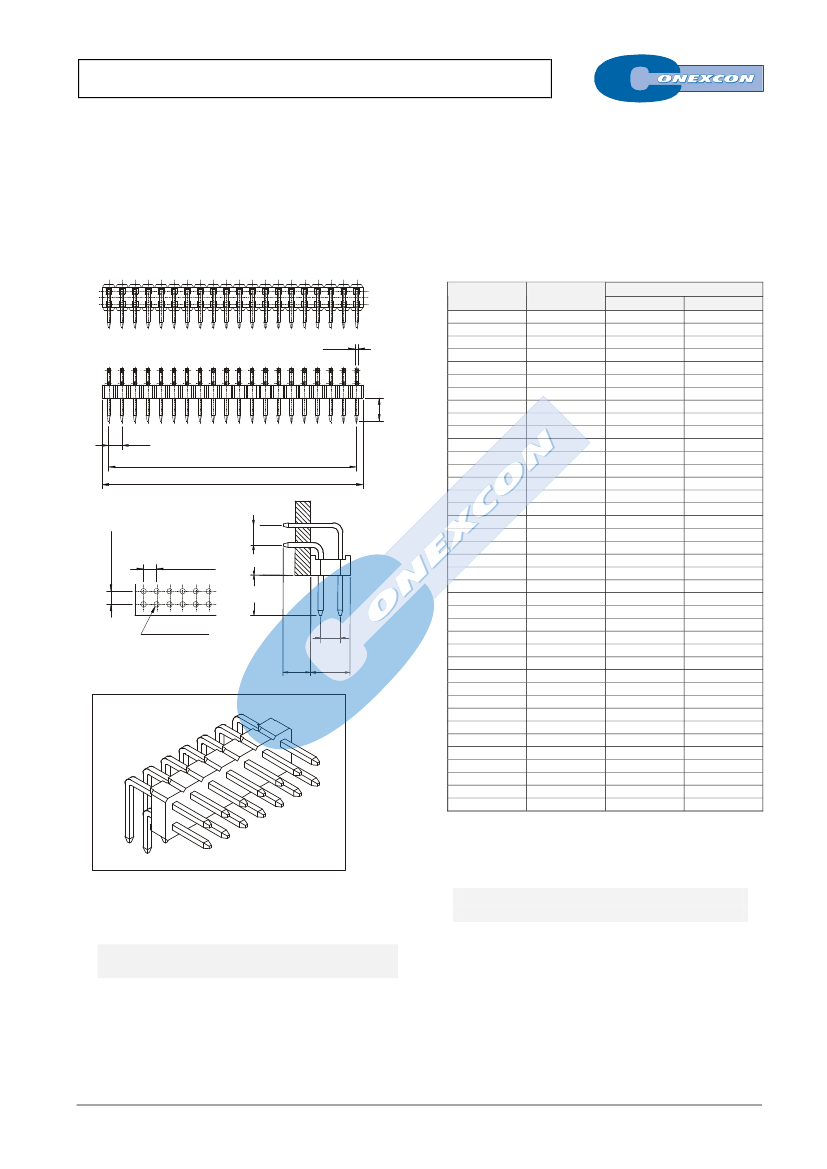

DUAL ROW RIGHT ANGLE HEADER
2027 SERIES.
2.00mm(0.079”). For PCB Solder
Features
Available in 4 through 80 circuits
Mates with 2.00mm(.079”) dual row sockets
Material: Glass filled polyester UL 94V-0. Colour: Black
0.50mm(.020”) square pin in copper alloy
Dimensional Information
Different pin length and plating options are available
Without polarisation
Easy breakaway to desired circuit size
For other options consult the Sales Office
Ordering and Dimensional Information
Dimensions
A
2,00(0,079)
4,00(0,157)
6,00(0,236)
8,00(0,315)
10,00(0,394)
12,00(0,472)
14,00(0,551)
16,00(0,630)
18,00(0,709)
20,00(0,787)
22,00(0,866)
24,00(0,945)
26,00(1,024)
28,00(1,102)
30,00(1,181)
32,00(1,260)
34,00(1,339)
36,00(1,417)
38,00(1,496)
40,00(1,575)
42,00(1,654)
44,00(1,732)
46,00(1,811)
48,00(1,890)
50,00(1,969)
52,00(2,047)
54,00(2,126)
56,00(2,205)
58,00(2,283)
60,00(2,362)
62,00(2,441)
64,00(2,520)
66,00(2,598)
68,00(2,677)
70,00(2,756)
72,00(2,835)
74,00(2,913)
76,00(2,992)
78,00(3,071)
B
4,00(0,157)
6,00(0,236)
8,00(0,315)
10,00(0,394)
12,00(0,472)
14,00(0,551)
16,00(0,630)
18,00(0,709)
20,00(0,787)
22,00(0,866)
24,00(0,945)
26,00(1,024)
28,00(1,102)
30,00(1,181)
32,00(1,260)
34,00(1,339)
36,00(1,417)
38,00(1,496)
40,00(1,575)
42,00(1,654)
44,00(1,732)
46,00(1,811)
48,00(1,890)
50,00(1,969)
52,00(2,047)
54,00(2,126)
56,00(2,205)
58,00(2,283)
60,00(2,362)
62,00(2,441)
64,00(2,520)
66,00(2,598)
68,00(2,677)
70,00(2,756)
72,00(2,835)
74,00(2,913)
76,00(2,992)
78,00(3,071)
80,00(3,150)
Circuit Size
04
06
Part Number
2027
-
T04C
2027
-
T06C
2027-
T08C
2027-
T10C
2027-
T12C
2027-
T14C
2027-
T16C
2027-
T18C
2027-
T20C
2027-
T22C
2027-
T24C
2027-
T26C
2027-
T28C
2027-
T30C
2027-
T32C
2027-
T34C
2027-
T36C
2027-
T38C
2027-
T40C
2027-
T42C
2027-
T44C
2027-
T46C
2027-
T48C
2027-
T50C
2027-
T52C
2027-
T54C
2027-
T56C
2027-
T58C
2027-
T60C
2027-
T62C
2027-
T64C
2027-
T66C
2027-
T68C
2027-
T70C
2027-
T72C
2027-
T74C
2027-
T76C
2027-
T78C
2027-
T80C
0.50
.020
08
10
12
14
16
H
2.00
.079
TYP.
18
20
22
24
A
B
26
28
30
32
34
36
2.00
.079
2.00±0.05
.079±.002
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
2.00±0.05
.079±.002
D
H
0.80±0.10
.031±.004
2.00
.079
2.80
.110
4.00
.157
RECOMMENDED HOLE PATTERN
T = Contact Plating
T =
2.
Tinplated
T =
3.
Gold flash over 50µ" nickel
Recommended Finish
C = Pin Length
C =
1.
Dim.
H
= 4.00 mm. ;
D=3.15
mm.
Recommended Option
C =
2.
Dim.
H
= 3.50 mm. ;
D=3.15
mm.
C =
3.
Dim.
H
= 4.00 mm. ;
D=2.25
mm.
C =
4.
Dim.
H
= 4.00 mm. ;
D=1.50
mm.
T =
5.
15µ” gold over 50µ” nickel
T =
6.
30µ” gold over 50µ” nickel
T =
13.
Selective gold flash over 50µ” nickel
T =
15.
15µ” selective gold over 50µ” nickel
T =
16.
30µ” selective gold over 50µ” nickel
