204513: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal, M3, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size116KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

204513 Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, M3, Plug, ROHS COMPLIANT

204513 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.523 inch
body length	1.212 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	M3
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	5.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

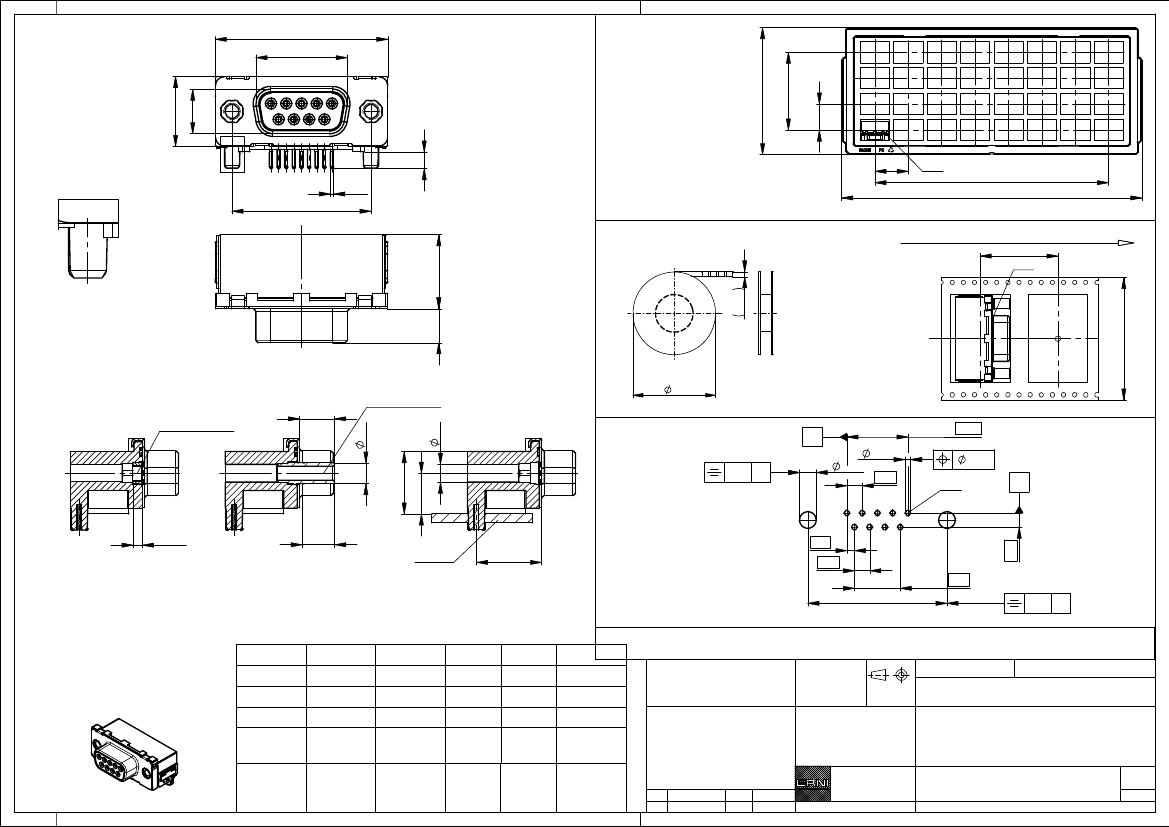

-0,4

+0,2

16,4

-0,2

12,6

±0,3

-0,2

DETAIL X

M5:1

Bestückung kraftlos

tray packaging

packaging unit 32 pcs

3 x 28 = 84

138

max.

Verpackt in Tray

Verpackungseinheit 32 Stück

powerless assembly

0,6

±0,2

Pin 1

7 x 36 = 252

325

max.

Sonstige Angaben siehe Zeichnung 204629 /

additional indications according to drawing 204629

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

13,3

Abspulrichtung -

Reel off Direction

Pin 1

6,3

-0,25

17,6

Mutter /

nut

Gewinde /

thread

M3 /

#4-40

Bolzen /

bolt

6,4

3,7

Gewinde /

thread

M3 /

#4-40

3,2

ohne / without

330

Sonstige Angaben siehe Zeichnung 204655 /

additional indications according to drawing 204655

Layoutvorschlag

recommended layout

11,2

0,05

7,3

±0,1

4 x 2,74 = 10,96

-0,06

+0,09

0,05

Pin 1

2,74

Gewindetiefe /

depth of thread

Gewindetiefe /

depth of thread

LP /

PCB

11,7

2,74

3 x 2,74 = 8,22

±0,05

Anschlussbereich verzinnt

2,54

1,65

1,37

terminal area tin plating

Anforderungsstufe: 2

0,05

Sonstige Angaben siehe Zeichnung 204626 /

additional indications according to drawing 204626

class: 2

Proprietary notice pursuant to ISO 16016 to be observed.

454999

224845

Ident-Nr.

204515

204514

204513

204512

*204511

Ident-Nr.

3,2

#4-40

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to production documentation

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

*AA-TMC

BA8Trayversiegelung

part-no.

Gurt

part-no.

Tray

tape on reel

tray

without

ohne

Mutter

nut

Bolzen

bolt

Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

25.11.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S-09-THR OM-Standard-BA8

remark

www.ERNI.com

Class

204510

TMCS
