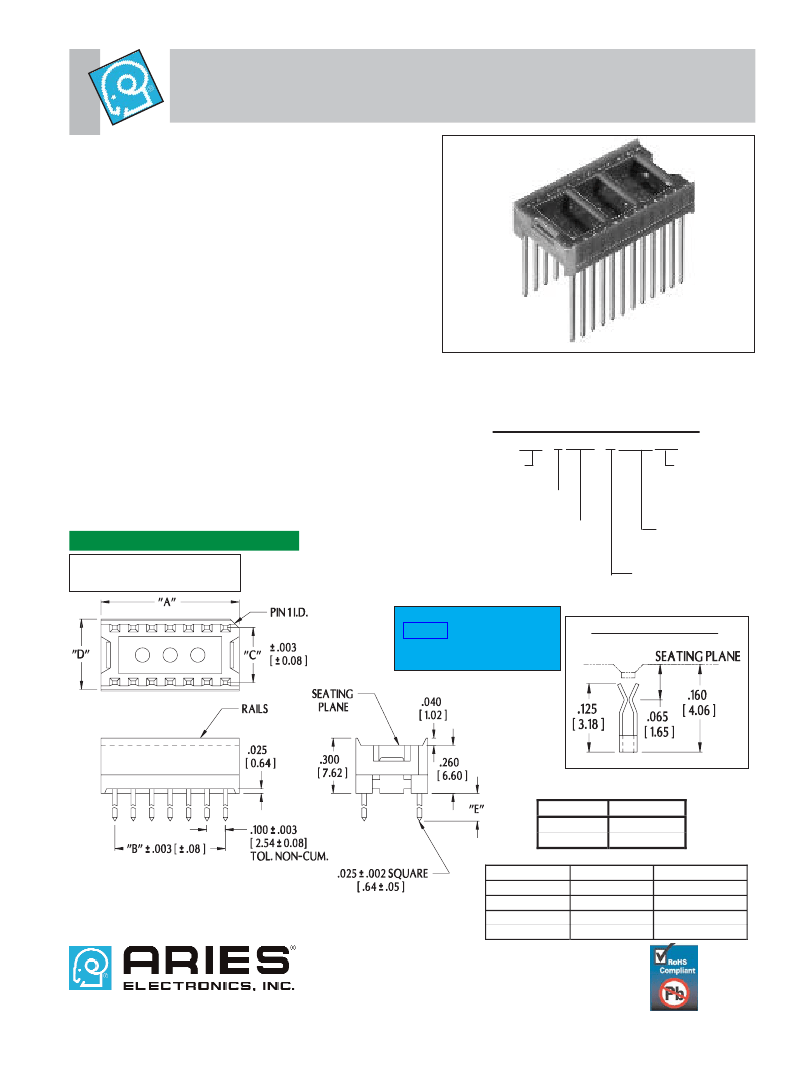

Series 501 Standard DIP Sockets
with Wire Wrap Bifurcated Contacts
FEATURES:
• Standard DIP Sockets are available with solder t ail or wire
wrap pins, all with bifurcated cont acts. Consult Data
Sheet No. 12004 for solder t ail pins.
• Aries offers these standard DIP sockets in more sizes
than any other manufacturer.
SPECIFICATIONS:
• Standard body material is black UL 94 V-0 Glass-filled 4/6
Nylon.
• Bifurcated contacts are Grade A spring-tempered
Phosphor Bronze per QQ-B-750.
• Pin plating is:
1 = 10μ” [.25μm] min. Gold per MIL-G-45204 over 50
μ”
[1.27μm] min. Nickel per SAE-AMS-QQ-N-290.
0 = 200μ” min Matte Tin per ASTM B545-97 over 50μ”
min Nickel per SAE-AMS-QQ-N-290.
0TL = 200μ” min. 90/10 Tin/Lead per MIL-T-10727 Type
1 over 50μ” min. Nickel per SAE-AMS-QQ-N-290.
• Contact current rating=1.5 Amps.
• Insertion Force=110 grams/pin average; Withdrawal
Force=75 grams/pin average.
• Operating Temp. =-67°F to 221°F [-55°C to 105°C] Tin
=-67°F to 257°F [-55°C to 125°C] Gold
• Accepts flat leads up to .014 thk. x .020 wide [.36-.51],
round leads up to .020 [.51] in diameter .
• Socket accepts lead lengths from seating plane from
.075-.160 [1.91-4.06].
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.045 ± .002 [1.12 ± .05]. dia.
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-X501-XXXXXX
No. of pins
(see table)
Row-to-row spacing:
2: ”C”=.200 [5.08]
3: “C”=.300 [7.62]
Series
4: “C”=.400 [10.16]
6: “C”=.600 [15.24]
Optional Suffix:
WR=Without
rails
Plating:
0=Tin
1=Gold
0TL=Tin/Lead
2=2 level wire wrap
3=3 level wire wrap
All tolerances ± .005 [.13]
unless otherwise specified
Consult Data Sheet No.
12004 for standard DIP
sockets with solder tail
bifurcated contacts.
CONTACT DETAIL
Wire wrap
2 le vel
3 le vel
Centers “C ”
.200 [5.08]
.300 [7.62]
.400 [10.16]
.600 [15.24]
Length “ E ”
.410 [1 0.41]
.690 [1 7.52]
Available Sizes
8, 10
8, 14-20
22
8-24, 28-40, 48
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Width “D ”
.290 [7.36]
.390 [9.90]
.490 [12.45]
.690 [17.54]
http://www.arieselec.com • info@arieselec.com
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
abc
12005
REV. D
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
