NOTES:
1.
2.
PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX,
335104-14-XXXX AND DATE CODE".
335104-14-XXXX
DRAWING NO.
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECO
APPR
A
RELEASE TO MFG.
24-Sep-10
--
KR
CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT, CONTINUITY, SHORTS AND OPEN.
LENGTH XXXX MM (SEE TABLE)
ORIENT MICRO-COAXIAL INTERFACE WITH
RESPECT TO MICRO-COAXIAL INTERFACE
AS SHOWN WITH IN #
10 $
CONNEX NUMBER
335104-14-0050
335104-14-0100
335104-14-0150
335104-14-0200
335104-14-0250
335104-14-0300
CABLE LENGTH (IN)
1.968
3.936
5.905
7.873
9.842
11.810
#
0.150
#
0.150
#
0.150
#
0.200
#
0.200
#
0.200
CABLE LENGTH (MM)
50
100
150
200
250
300
#
3.81
#
3.81
#
3.81
#
5.08
#
5.08
#
5.08
* ADDITIONAL LENGTHS CAN BE PROVIDED
BY CHANGING XXXX TO DESIRED LEGNTH IN MM
CONTACT CONNEX MARKETING FOR QUOTE
DESIGN REQUIREMENTS:
FREQUENCY____________ TO ________________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
X
CONTINUITY
X
HI-POT : 250 VRMS
OTHER
MATERIAL
DRAWN
DATE
TITLE
UNLESS OTHERWISE SPECIFIED, DIMENSIO
NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#
.015 (0,381 mm)
#
.005 (0,127 mm)
#1 $
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
KARTHIK R
ENGINEER
REFERENCE
24-Sep-10
DATE
KARTHIK R
APPROVED
24-Sep-10
DATE
TASK - 432
CAD FILE

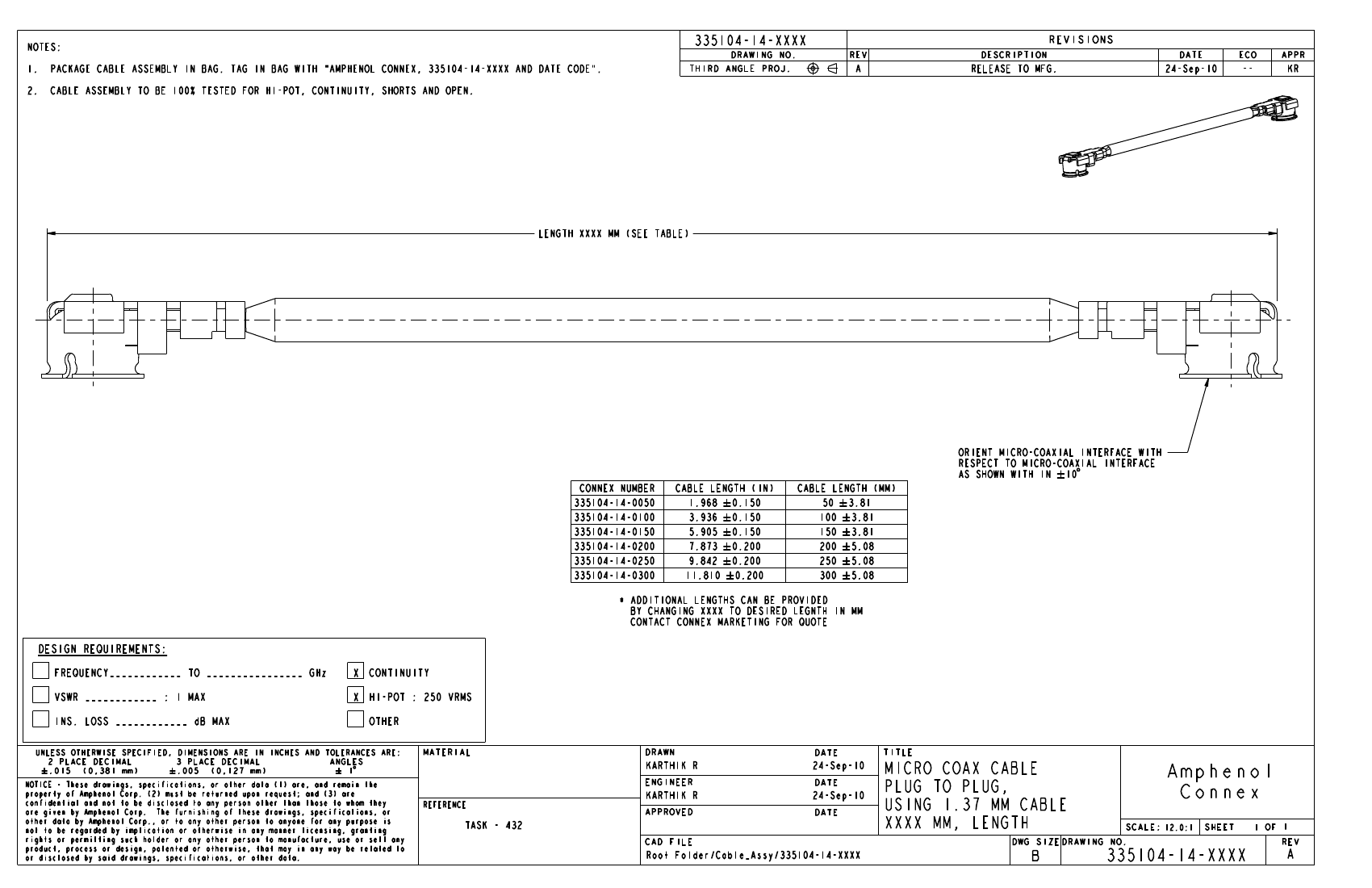

MICRO COAX CABLE
PLUG TO PLUG,
USING 1.37 MM CABLE
XXXX MM, LENGTH
DWG SIZE
DRAWING NO.
Amphenol
Connex
SCALE:
12.0:1
SHEET
OF
1
1
REV
Root Folder/Cable_Assy/ 335104-14-XXXX
B
335104-14-XXXX
A
