31-71062: DescriptionRF connectors / coaxial connectors bnc pcb receptacle; CategoryThe connector; File Size238KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

31-71062 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-71062	-	-	View	Buy Now

31-71062 Overview

RF connectors / coaxial connectors bnc pcb receptacle

31-71062 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	PCB Connectors
RF Series	BNC
Gende	Jack
Polarity	Standard
Impedance	75 Ohms
Maximum Frequency	4 GHz
Body Material	Zinc Die Cas
Body Finish	Nickel
Contact Material	Beryllium Coppe
Contact Plating	Gold
Contact Terminati	Solde
Mounting Type	-
Termination Style	PCB - Through Hole
Coupling Mechanism	Bayone
Orientati	Straigh
Mating Cycles	500
Operating Temperature Range	- 65 C to + 165 C

Preview

Download Datasheet

View All

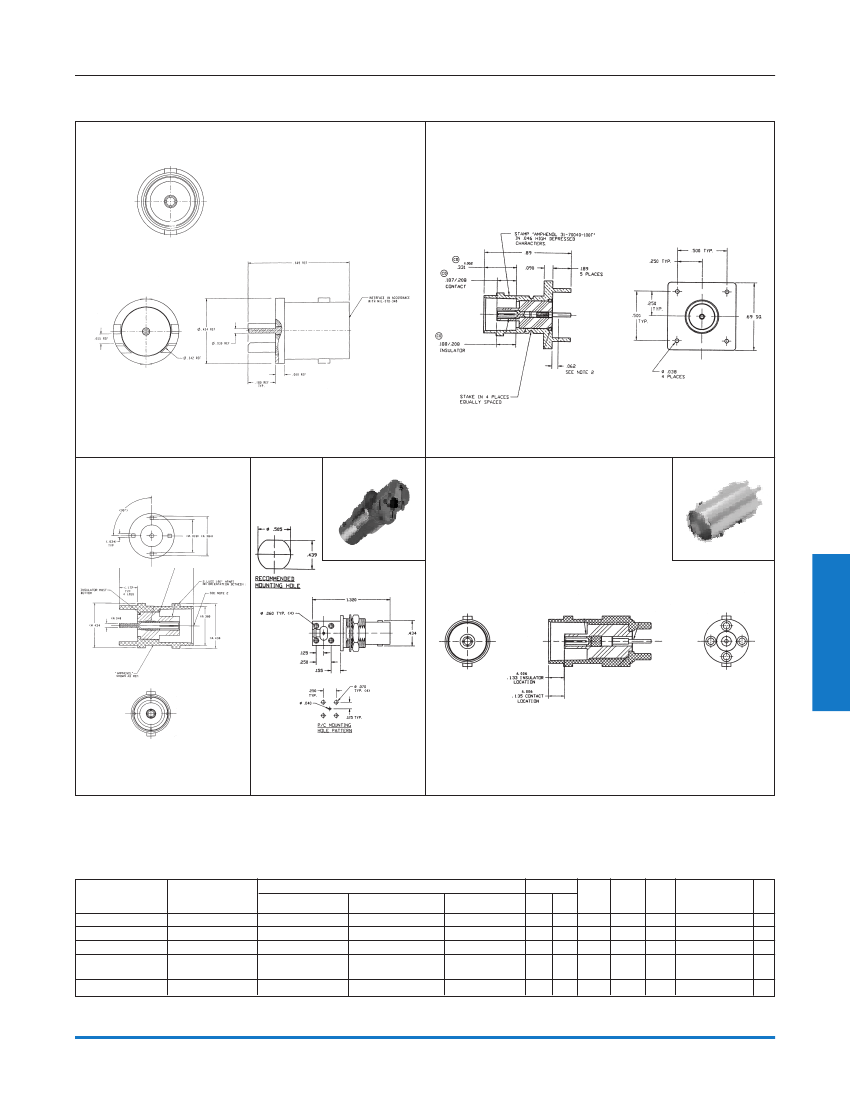

BNC 75 ohm

Jacks - Printed Circuit Board

Fig. 1

Fig. 2

Amphenol

®

BNC

BNC End Launch

31-6009

Fig.3

Fig. 4

Fig. 5

BNC Receptacle

31-70040-100T

BNC

BNC PCB Vertical Mount

31-5716-4050

BNC Right Angle PCB

Receptacle Bulkhead

31-70221

BNC Receptacle PCB Bulkhead

31-71062

75Ω BNC JACKS

Description

PCB Vertical Mount

End Launch Rec.

Receptacle

Rt. Angle PCB Rec

Bulkhead

Rec. PCB Bulkhead

L

distributor stocked

Terminal

Type

Blunt Post

a

Dimensions, inches (millimeters)

b

.434(11.0)

.380(9.7)

.434(11.0)

.380(9.7)

c

Notes

Plt. Ins.

P17

D1

Mtg.

Hole

—

UG

No.

—

75Ω

Amphenol

Number

31-5716-4050

31-6009

31-70040-100T

31-70221

31-71062

Fig.

3

1

2

4

5

.716(18.2)

.668(17.0)

.890(22.6)

1.32(33.5)

.880(22.4)

.177(4.5)

.060(1.5)

.189(4.8)

.158(4.0)

.160(4.1)

T2

T1

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

131

31-71062 Related Products

	31-71062
Description	RF connectors / coaxial connectors bnc pcb receptacle
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	PCB Connectors
RF Series	BNC
Gende	Jack
Polarity	Standard
Impedance	75 Ohms
Maximum Frequency	4 GHz
Body Material	Zinc Die Cas
Body Finish	Nickel
Contact Material	Beryllium Coppe
Contact Plating	Gold
Contact Terminati	Solde
Termination Style	PCB - Through Hole
Coupling Mechanism	Bayone
Orientati	Straigh
Mating Cycles	500
Operating Temperature Range	- 65 C to + 165 C
