318012: DescriptionElectric Fuse, Fast Blow, 12A, 32VAC, 32VDC, Through Hole; CategoryCircuit protection Circuit protection; File Size87KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

318012 Overview

Electric Fuse, Fast Blow, 12A, 32VAC, 32VDC, Through Hole

318012 Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	FAST
body height	32.39 mm
Body length or diameter	6.99 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e0
Manufacturer's serial number	318
Installation features	THROUGH HOLE
physical size	6.99mm x 32.39mm
Rated current	12 A
Rated voltage (AC)	32 V
Rated voltage (DC)	32 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	TIN LEAD
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Contents

Chart

Electronic Overcurrent Protection

Glossary

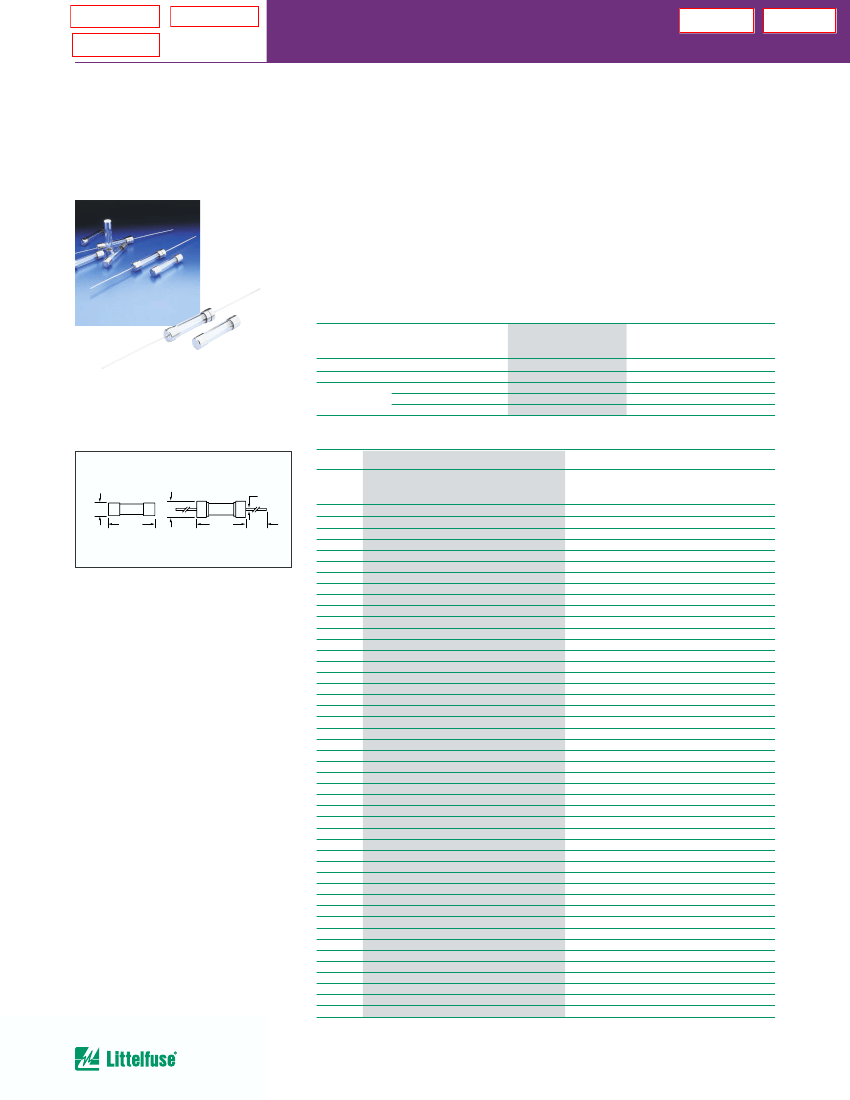

Glass Body Axial Lead and Cartridge Fuses

3AG Fast-Acting Series

312/318 Series Fast-Acting Fuses, 313/315

Series Slo-Blo Fuses. 3AG fuses satisfy a

broad range of application requirements

and are a standard for cost-effective and

reliable circuit protection.

Electrical Characteristics

% of Ampere

Rating

110%

135%

200%

Ampere

Rating

1/32 - 35

1/32 - 10

12 - 30

313/315 Slo-Blo

Opening Time

Min / Max

4 hrs. / —

— / 1 hr.

5 sec. / —

312/318 Fast-Acting

Opening Time

Min / Max

4 hrs. / —

— / 1 hr.

— / 5 sec.

— / 10 sec.

— / 20 sec.

Dimensions

Ordering Information

313/315 Slo-Blo

Nominal

Melting I

Sec.)

312/318 Fast-Acting

Nominal

Catalog

Melting I

Voltage

Number

Sec.)

Rating

—

0.00003

—

0.000249

0.00102

0.00289

0.0055

0.0096

0.0128

0.0165

0.0355

0.0689

0.185

—

0.483

0.880

—

1.84

—

0.760

—

1.45

2.35

2.80

3.60

3.85

5.20

7.20

9.54

—

28.5

50.0

81.1

—

118.0

166.0

298.0

—

250

312/313 Series

.25"

1.25"

.275"

315/318 Series

.032"

Ampere

Rating

Catalog

Number

Voltage

Rating

1.275"

1.50"

TYP.

Axial Lead Material: Solder coated copper.

Specifications

Approvals:

(312/318 Series)

1/100 to 10A: Listed to UL 248-14

12 to 30A: Listed to UL 275

CSA approved

(313/315 Series)

0 to 8A: UL Listed

MITA approved from 1A to 5A (313)

CSA approved

1/100

313.010

0.000121

250

—

1/32

313.031

0.00303

250

312.031

1/25

313.040

0.00630

250

—

1/16

313.062

0.0210

250

312.062

1/10

313.100

0.0850

250

313.100

1/8

313.125

0.152

250

312.125

3/20

313.150

0.270

250

312.150

7/40

313.175

0.177

250

312.175

3/16

313.187

0.230

250

312.187

1/5

313.200

0.270

250

312.200

1/4

313.250

0.385

250

312.250

3/10

313.300

0.730

250

312.300

3/8

313.375

1.23

250

312.375

2/5

313.400

1.35

250

—

1/2

313.500

2.55

250

312.500

3/5

313.600

4.00

250

312.600

7/10

313.700

5.90

250

—

3/4

313.750

7.16

250

312.750

4/5

313.800

8.00

250

—

313001

14.0

250

312001

1-1/5

31301.2

21.5

250

—

1-1/4

3131.25

24.0

250

3121.25

1-1/2

31301.5

38.0

250

31201.5

1-3/5

31301.6

49.6

250

31201.6

1-3/4

—

250

3121.75

1-4/5

31301.8

58.0

250

31201.8

313002

77.0

250

312002

2-1/4

3132.25

121.0

250

3122.25

2-1/2

31302.5

130.0

250

31202.5

2-4/5

31302.8

170.0

250

—

313003

200.0

250

312003

3-1/5

31303.2

209.0

250

—

313004

76.1

250

312004

313005

140.0

250

312005

—

250

312006

6-1/4

3136.25

242.0

250

—

6-3/10

3136.30

242.0

250

—

313007

347.0

250

312007

313008

445.0

250

312008

313010

760.0

312010

313012

1200.0

312012

313015

1870.0

312015

313020

9560.0

312020

313025

16500.0

312025

313030

26900.0

312030

—

312035

Note: For axial leads in the 313 Series, change catalog number from 313 to 315.

For axial leads in the 312 Series, change catalog number from 312 to 318.

Consult Littelfuse web site for more information

www.littelfuse.com
