Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
USA: -20°C to +105°C
Flammability Rating:
USA: VW-1
Canada: -20°C to +80°C
Canada: FT1
UL File No.: E42769, Style No: 20462
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

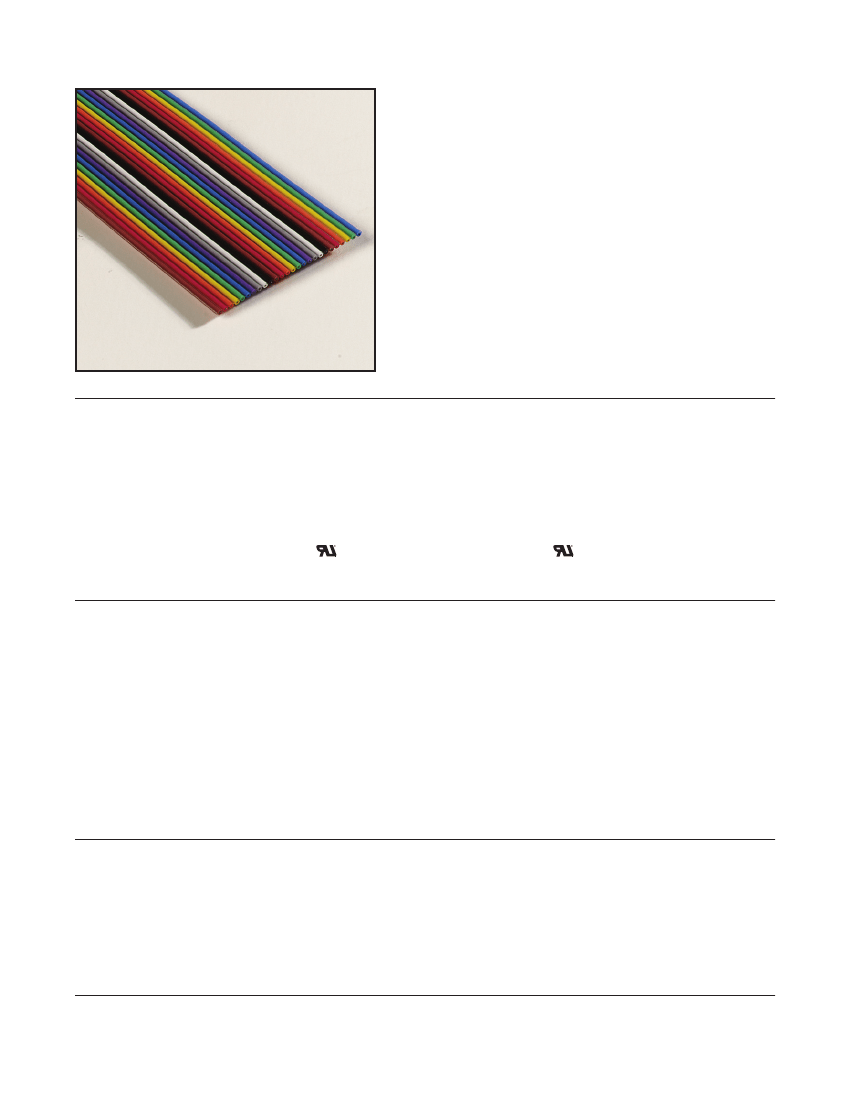

Color Coded Flat Cable
.050" 28 AWG Stranded, PVC
C
(OPTIONAL)
3302 Series
Number of
Conductors
09
10
14
15
16
18
3M Part
Number
3302/09
3302/10
3302/14
3302/15
3302/16
3302/18
3302/20
3302/24
3302/25
3302/26
3302/30
3302/34
3302/36
3302/37
3302/40
3302/50
3302/60
3302/64
Dimension A
0.450 ± .015 [ 11.43 ]
0.500 ± .015 [ 12.70 ]
0.700 ± .015 [ 17.78 ]
0.750 ± .015 [ 19.05 ]
0.800 ± .020 [ 20.32 ]
0.900 ± .020 [ 22.86 ]
1.000 ± .020 [ 25.40 ]
1.200 ± .020 [ 30.48 ]
1.250 ± .020 [ 31.75 ]
1.300 ± .020 [ 33.02 ]
1.500 ± .025 [ 38.10 ]
1.700 ± .025 [ 43.18 ]
1.800 ± .025 [ 45.72 ]
1.850 ± .025 [ 46.99 ]
2.000 ± .025 [ 50.80 ]
2.500 ± .025 [ 63.50 ]
3.000 ± .025 [ 76.20 ]
3.200 ± .025 [ 81.28 ]
Dimension B
0.400 ± .010 [ 10.18 ]
0.450 ± .010 [ 11.43 ]
0.650 ± .010 [ 16.51 ]
0.700 ± .010 [ 17.78 ]
0.750 ± .015 [ 19.05 ]
0.850 ± .015 [ 21.59 ]
0.950 ± .015 [ 24.13 ]
1.150 ± .015 [ 29.21 ]
1.200 ± .015 [ 30.48 ]
1.250 ± .015 [ 31.75 ]
1.450 ± .020 [ 36.83 ]
1.650 ± .020 [ 41.91 ]
1.750 ± .020 [ 44.45 ]
1.800 ± .020 [ 45.72 ]
1.950 ± .020 [ 49.53 ]
2.450 ± .020 [ 62.23 ]
2.950 ± .020 [ 74.93 ]
3.150 ± .020 [ 80.01 ]
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
20
24
25
26
30
34
36
37
40
50
60
64
[ ] Dimensions for Reference Only
A
.050 Typ
[ 1.27 ]
.042
±
.003
[ 1.07 ]
B
* 10 Color Repeat
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown* PVC
Insulation
Clear PVC
Carrier
28 AWG 7 X 36 [ 7 X 0.127 ] Tinned
Stranged Copper Conductors
Ordering Information
3302/XX XXC
Blank = Standard
C = Canadian Certified Version
Blank = Standard
SF = Splice Free
Number of Conductors
(See Table)
TS-0123-C
Sheet 2 of 2
Note:
Available in standard lengths of 100 feet or 300 feet per roll,
please specify when ordering..
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
