NOTES:
1.
2.
PACKAGE INDIVIDUALLY IN HEAT SEALED BAG. TAG IN BAG WITH "AMPHENOL CONNEX,
CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT, CONTINUITY, SHORTS AND OPEN.
245108-01-XX.XX AND DATE CODE".
245108-01-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECO
APPR
A
RELEASE TO MFG.
08-Dec-10
--
KR
LENGTH XX.XX (SEE TABLE)
2
LENGTH Y" (SEE TABLE)
TYP (2)
3
4 TYP(2)
1
LOCK WASHER
HEX NUT
LENGTH TABLE
PART NUMBER
245108-01-06.00
245108-01-12.00
245108-01-18.00
245108-01-24.00
LENGTH INCHES (X)
06.000 #
0.150
12.000 #
0.150
18.000 #
0.150
24.000 #
0.250
HST LENGTH INCHES (Y)
0.750 MIN
0.750 MIN
0.750 MIN
2.000 MIN
ORIENT R/A MMCX SHOWN WITH
RESPECT TO R/A SMA 'D FLAT'
WITHIN #
10 $
* ADDITIONAL LENGTHS CAN BE PROVIDED
BY CHANGING XX.XX TO DESIRED LENGTH IN INCHES
CONTACT CONNEX MARKETING FOR QUOTE
DESIGN REQUIREMENTS:
FREQUENCY____________ TO ________________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
X
CONTINUITY
X
HI-POT : 500 VRMS
OTHER
009-954-341
009-881-205
132245
262103
PART NUMBER
A/R
A/R
1
1
QTY
4
3
2
1
ITEM
HEAT SHRINK TUBE
RG 316 CABLE
SMA R/A BLKHD JACK
MMCX R/A CRIMP PLUG
DESCRIPTION
FINISH
UNLESS OTHERWISE SPECIFIED, DIMENSIO
NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#
.015 (0,381 mm)
#
.005 (0,127 mm)
#1 $
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
DATE
TITLE
KARTHIK R
ENGINEER
REFERENCE
08-Dec-10
DATE
KARTHIK R
APPROVED
08-Dec-10
DATE
TASK - 508
CAD FILE

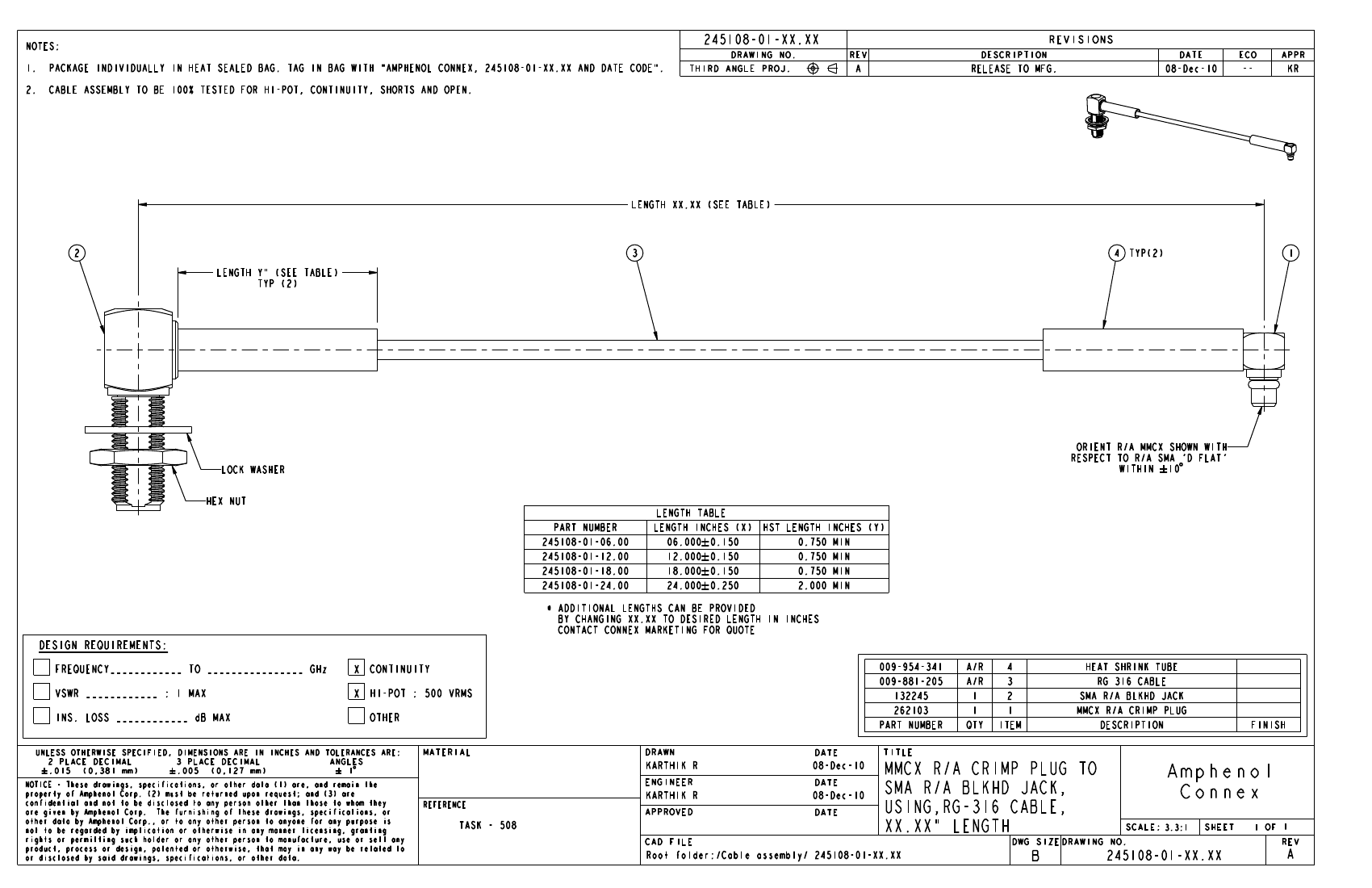

MMCX R/A CRIMP PLUG TO
SMA R/A BLKHD JACK,
USING,RG-316 CABLE,
XX.XX" LENGTH
DWG SIZE
DRAWING NO.
Amphenol
Connex
SCALE:
3.3:1
SHEET
OF
1
1
REV
Root folder:/Cable assembly/ 245108-01-XX.XX
B
245108-01-XX.XX
A
