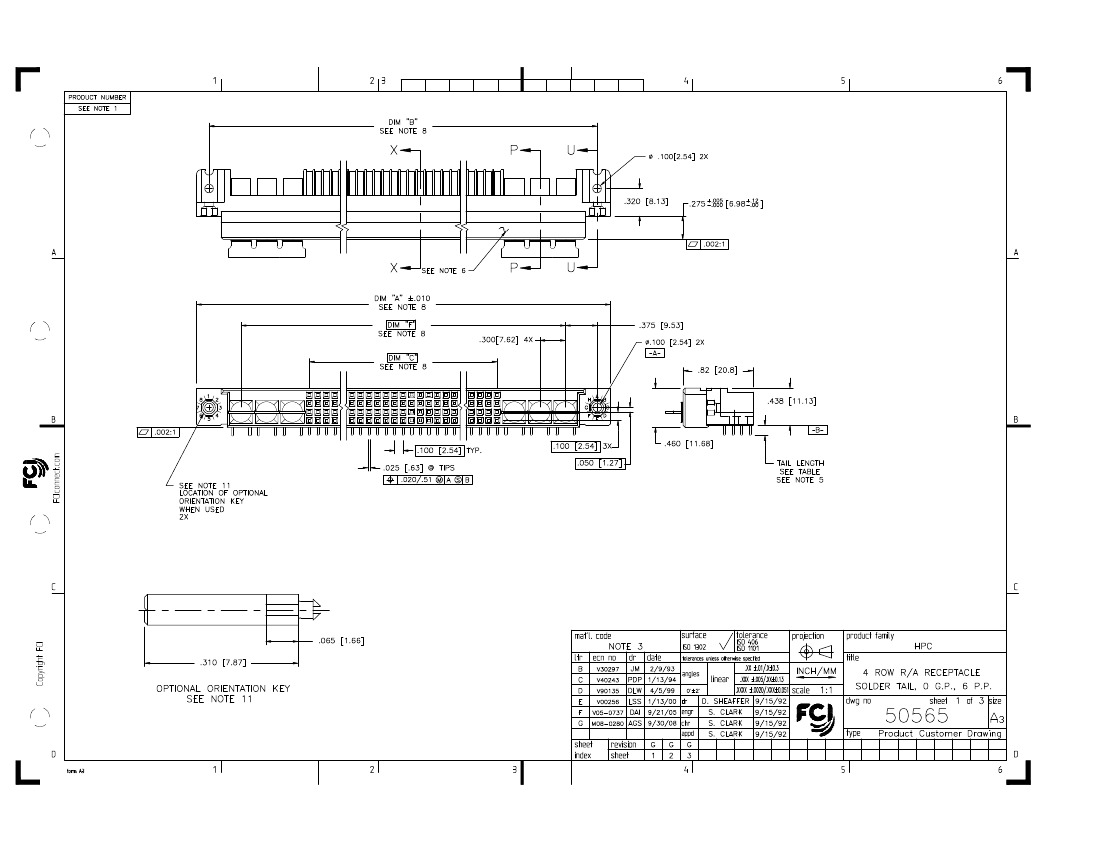

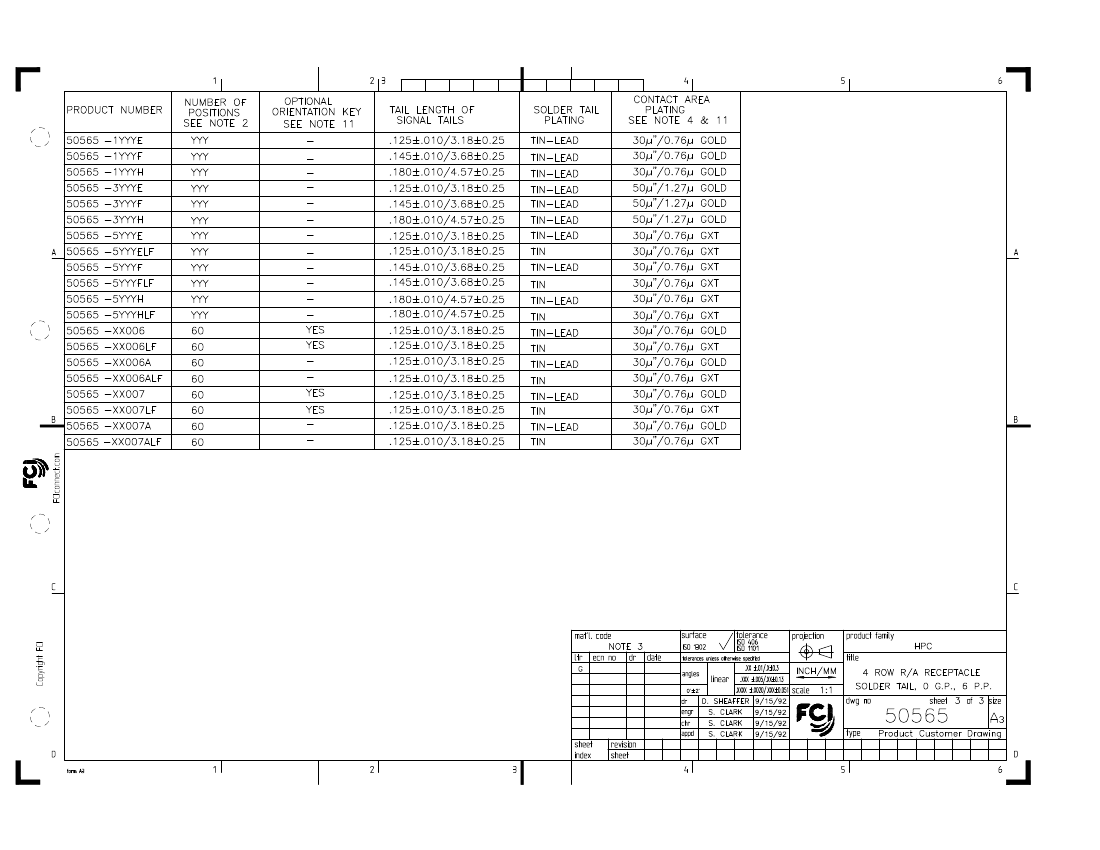

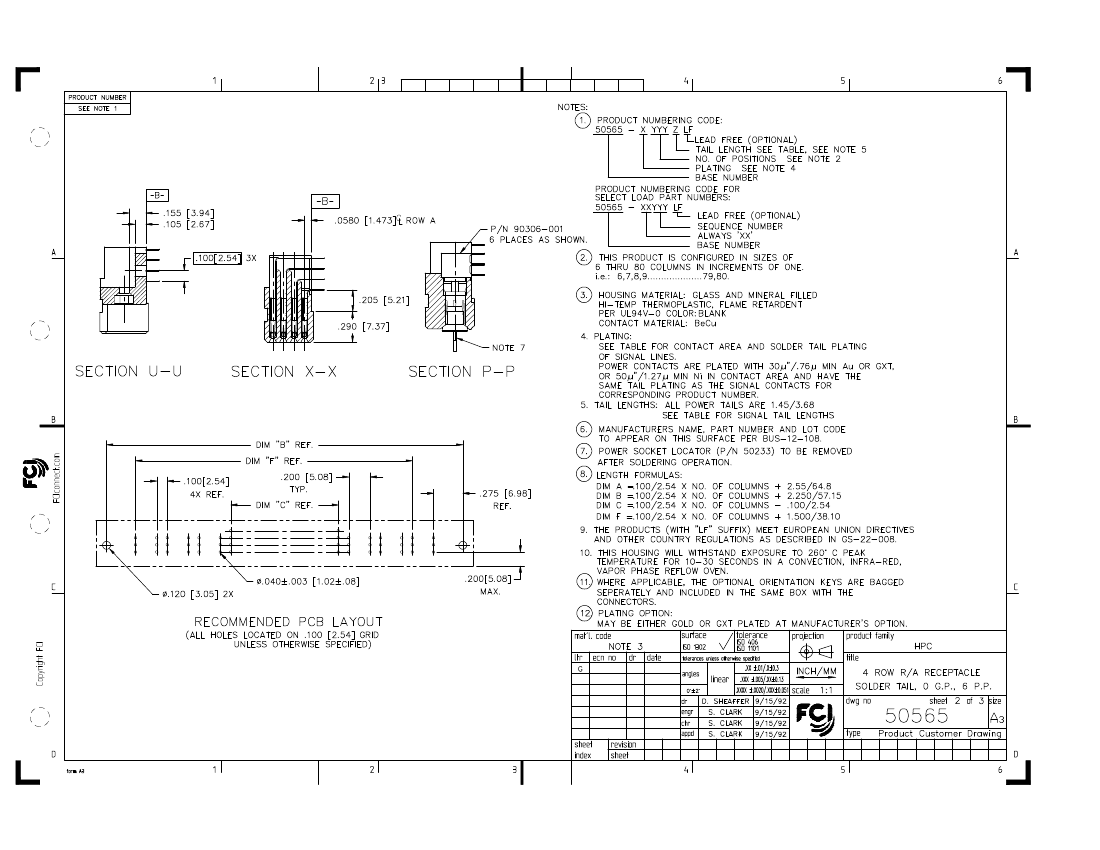

50565-5028FLF: DescriptionBoard Connector, 28 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size277KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

50565-5028FLF Overview

Board Connector, 28 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACT: 7.62
Board mount options	HOLE .112-.124
body width	0.46 inch
subject depth	0.82 inch
body length	5.35 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S84P6
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Contact style	HYBRID
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	50565
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.145 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
UL Flammability Code	94V-0
Base Number Matches	1

PDM: Rev:G

STATUS:

Released

Printed: May 13, 2011
