Part Number

Search

54F125/BCA

Description
Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,
Categorylogic    logic
File Size97KB,3 Pages
ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.)
Websitehttps://www.nxp.com/
Download Datasheet Parametric View All

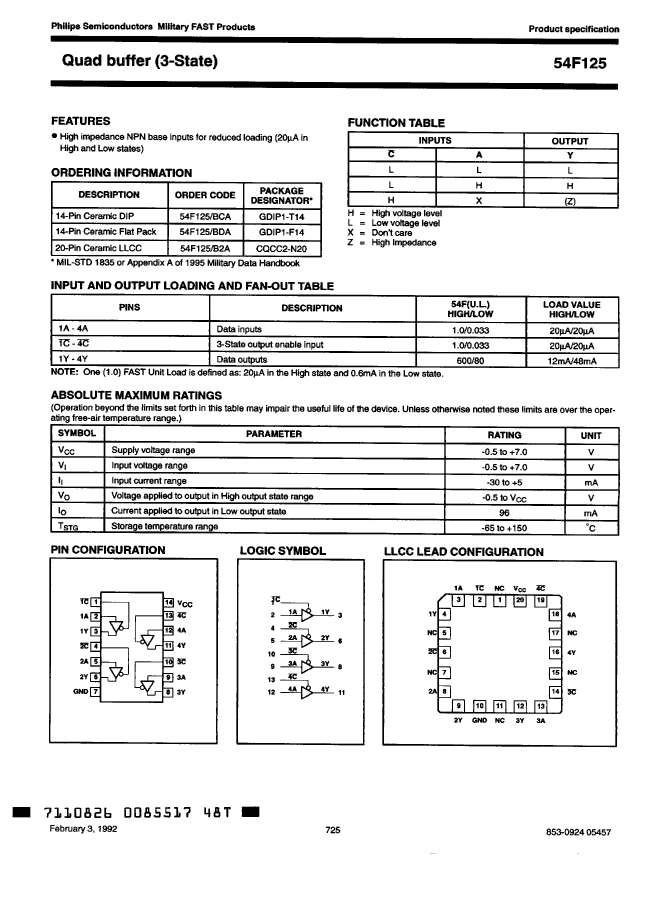

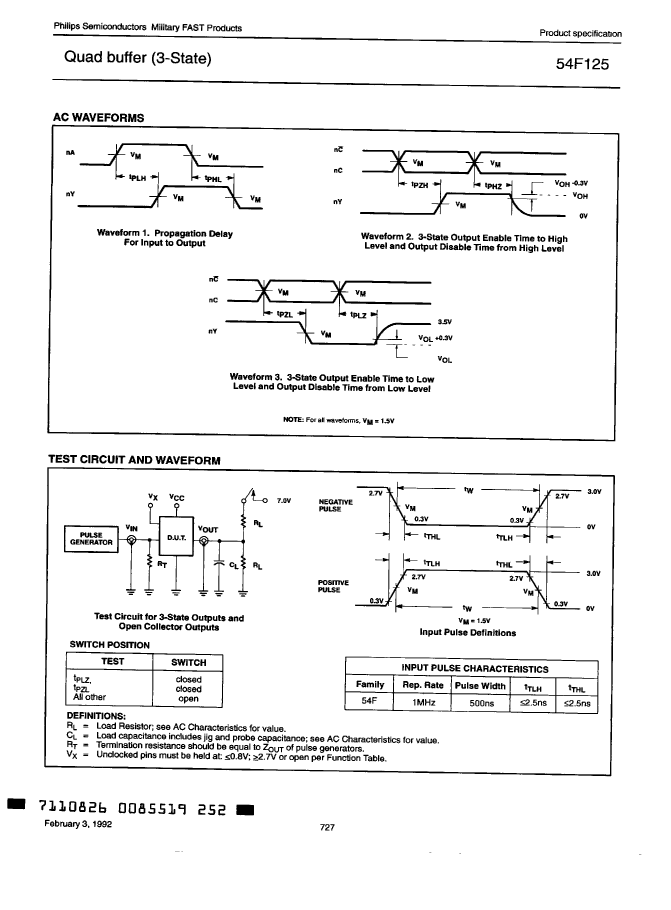

54F125/BCA Overview

Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,

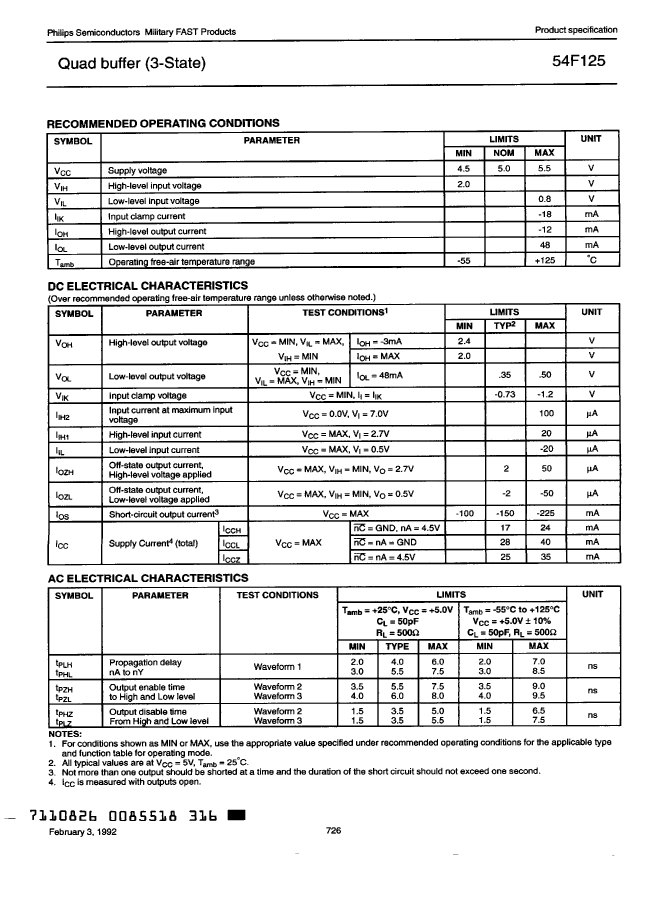

54F125/BCA Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPhilips Semiconductors (NXP Semiconductors N.V.)
package instructionDIP, DIP14,.3
Reach Compliance Codeunknown
Control typeENABLE LOW
JESD-30 codeR-XDIP-T14
JESD-609 codee0
Logic integrated circuit typeBUS DRIVER
MaximumI(ol)0.048 A
Number of digits4
Number of functions1
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Maximum supply current (ICC)40 mA
Prop。Delay @ Nom-Sup8.5 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Base Number Matches1
This Material Copyrighted By Its Respective Manufacturer
