Technical Data Sheet
FAKRA - HF
STRAIGHT JACK
59K13O-102A4
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

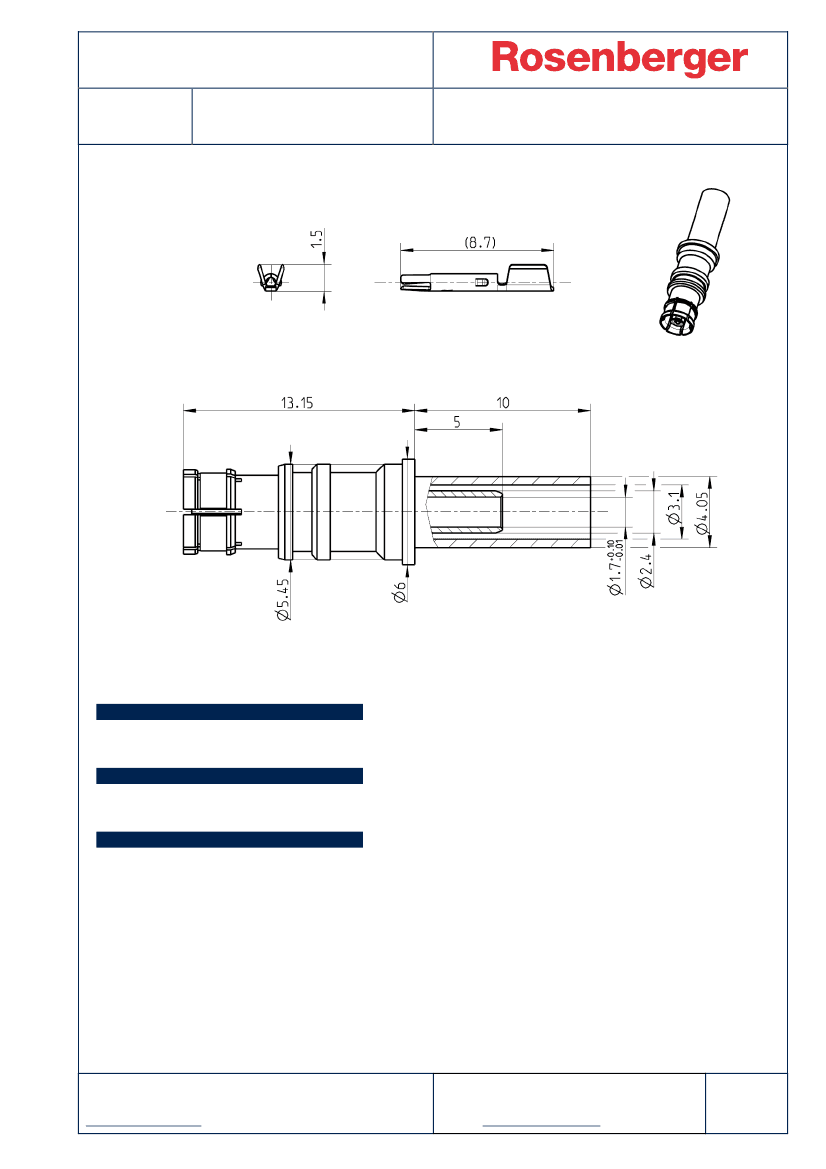

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
DIN 72594-1
Documents
Assembly instruction
MA_59V059
Material and plating
Connector parts
Center contact
Outer contact
Contact spring
Dielectric
Crimping ferrule
Material
Spring bronze
Brass
Stainless steel
PA 12
Copper
Plating
Gold, min. 0.8 µm, over nickel
Nickel, 3-6 µm
N/A
Nickel, 2.5-5 µm
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
FAKRA - HF
STRAIGHT JACK
59K13O-102A4
Electrical data
Impedance
Frequency
Return loss
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power current
RF-leakage
- Limitations are possible due to the used cable type -
50
Ω
DC to 6 GHz
≥
30 dB, DC to 1 GHz
≥
26 dB, DC to 3 GHz
≥
20 dB, DC to 6 GHz
≤
0.1 x
f(GHz)
dB
≥
1x10
3
MΩ
≤
5 mΩ
≤
5 mΩ
750 V rms
335 V rms
≤
1 A DC
≥
65 dB up to 1 GHz
Mechanical data
Mating cycles
Engagement force
Disengagement force
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
2002/95/EC (RoHS)
- Limitations are possible due to the used cable type -
≥
25
≤
25 N
≥
2N
-40° to +105°
C
C
DIN 72594-2 clause 6.2
DIN 72594-2 clause 6.3
DIN 72594-2 clause 6.1
DIN 72594-2 clause 6.4
compliant
Tooling
Crimping tool
Crimp insert outer contact
Crimping tool -
Incl. Crimp insert center contact
Suitable cables
Cable type
Packing
Standard
Weight
11W150-000
11W150-302
(“double crimp”)
11W150-402
(“flat crimp”)
11W161-800
RG 174; RG 316
10 / 500 / 5.000 / 20.000 pcs in box; center contact on reel
1.84 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
T. Höfling
Date
12/01/05
Approved
J. Ermel
Date
09/01/13
Rev.
e00
Engineering change number
13-0021
Name
M. Müller
Date
09/01/13
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
2/2
