NOTES:
1. ELECTRICAL:
A. IMPEDANCE: 50
(NOMINAL)
B. FREQUENCY RANGE: 0-6 GHz
C. CONTACT RESISTANCE: CENTER: 20m
MAX.: MEASURED AT 10mA MAX. 25 m
MAX AFTER CYCLING
OUTSIDE: 10m
MAX. 15 m MAX AFTER CYCLING
D. INSULATION RESISTANCE: 500M
MIN.: MEASURED AT 100 VDC.
E. WITHSTANDIN VOLTAGE: NO LINE OR INSULATION BREAKDOWN: 200 VAC FOR 1 MIN.
F. V.S.W.R. : 1.3 MAX. AT DC TO 3GHz, 1.4 MAX. AT 3 TO 6GHz
2. PHYSICAL:
A.
B.
C.
D.
E.
F.
FEMALE CONTACT HOLDING FORCE: .15N MIN. : MEASURED WITH A
.475MM PIN GAUGE.
DURABILITY: 30 CYCLES
TEMPERATURE RANGE: -40 C TO +90 C.
$
$
AMC CONNECTOR MATING FORCE: 15N TYPICAL
AMC CONNECTOR DEMATING FORCE: 10N TYPICAL
AMC INTERFACE IS FULLY COMPATIBLE WITH "U.FL" SERIES PRODUCT.

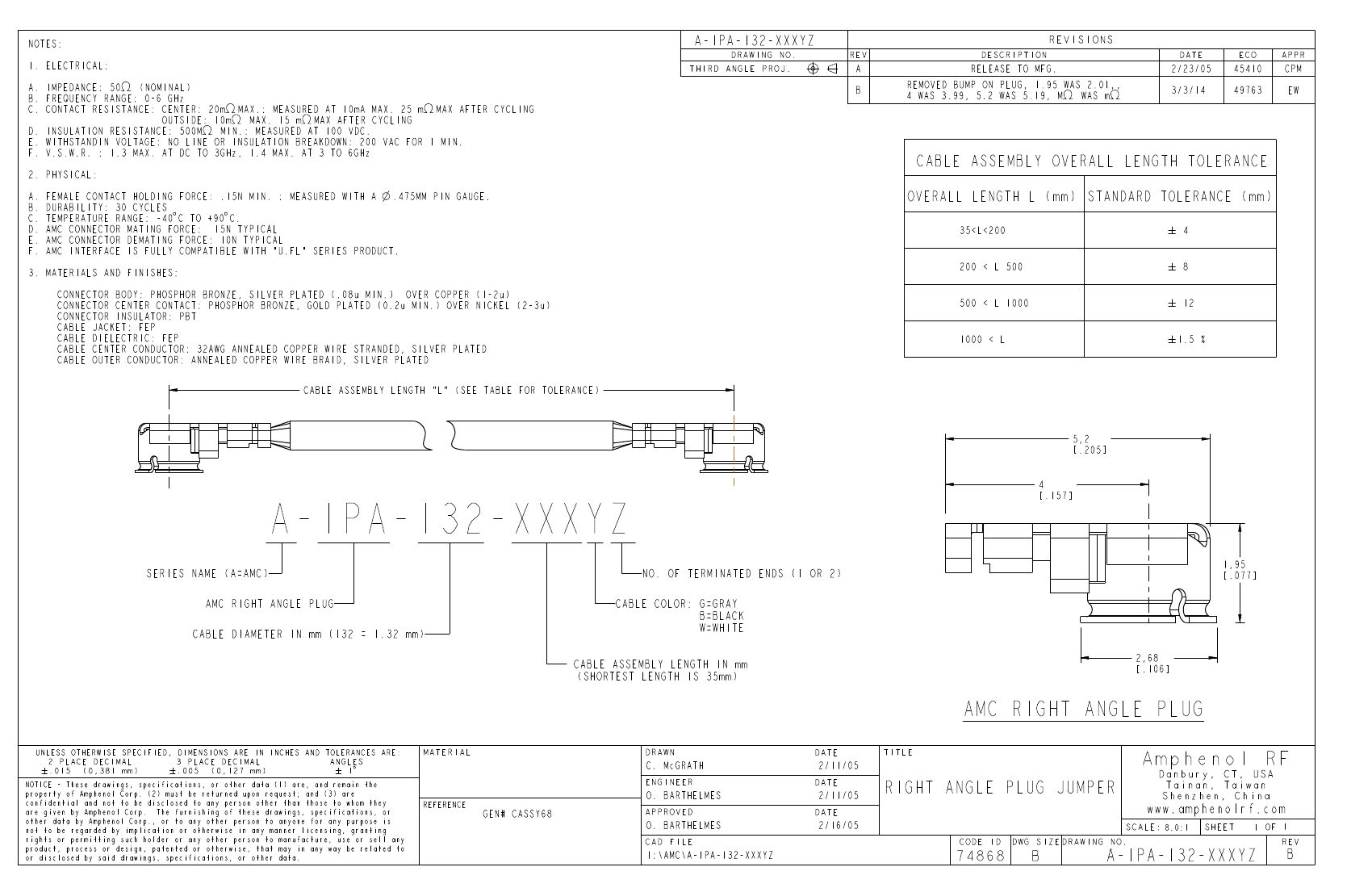

A-1PA-132-XXXYZ
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
A
B
REMOVED BUMP ON PLUG, 1.95 WAS 2.01,,
4 WAS 3.99, 5.2 WAS 5.19, M
WAS m
RELEASE TO MFG.
DESCRIPTION
2/23/05
3/3/14
DATE
45410
49763
ECO
APPR
CPM
EW
CABLE ASSEMBLY OVERALL LENGTH TOLERANCE
OVERALL LENGTH L (mm)
35<L<200
200 < L 500
500 < L 1000
1000 < L
STANDARD TOLERANCE (mm)
#4
#8
# 12
#
1.5 %
3. MATERIALS AND FINISHES:
CONNECTOR BODY: PHOSPHOR BRONZE, SILVER PLATED (.08u MIN.) OVER COPPER
(1-2u)
CONNECTOR CENTER CONTACT: PHOSPHOR BRONZE, GOLD PLATED (0.2u MIN.) OVER
NICKEL (2-3u)
CONNECTOR INSULATOR: PBT
CABLE JACKET: FEP
CABLE DIELECTRIC: FEP
CABLE CENTER CONDUCTOR: 32AWG ANNEALED COPPER WIRE STRANDED, SILVER PLATED
CABLE OUTER CONDUCTOR: ANNEALED COPPER WIRE BRAID, SILVER PLATED
CABLE ASSEMBLY LENGTH "L" (SEE TABLE FOR TOLERANCE)
5,2
[.205]
4
[.157]
A-1PA-132-XXXYZ
SERIES NAME (A=AMC)
AMC RIGHT ANGLE PLUG
CABLE DIAMETER IN mm (132 = 1.32 mm)
NO. OF TERMINATED ENDS (1 OR 2)
CABLE COLOR: G=GRAY
B=BLACK
W=WHITE
CABLE ASSEMBLY LENGTH IN mm
(SHORTEST LENGTH IS 35mm)
1,95
[.077]
2,68
[.106]
AMC RIGHT ANGLE PLUG
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015
(0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
C. McGRATH
O. BARTHELMES
O. BARTHELMES
I:\AMC\A-1PA-132-XXXYZ
DATE
DATE
DATE
2/11/05
2/11/05
2/16/05
TITLE
ENGINEER
REFERENCE
RIGHT ANGLE PLUG JUMPER
CODE ID
DWG SIZE DRAWING NO.
Amphenol RF
www.amphenolrf.com
SCALE: 8.0:1
SHEET
Danbury, CT, USA
Tainan, Taiwan
Shenzhen, China
GEN# CASSY68
APPROVED
CAD FILE
1 OF 1
REV
74868
B
A-1PA-132-XXXYZ
B
