72V815L10PF

Description
TQFP-128, Tray
Categorystorage    storage
File Size364KB,27 Pages
ManufacturerIDT (Integrated Device Technology)
Download Datasheet Parametric View All

72V815L10PF Online Shopping

Suppliers Part Number Price MOQ In stock
72V815L10PF - - View Buy Now

72V815L10PF Overview

TQFP-128, Tray

72V815L10PF Parametric

Parameter NameAttribute value
Brand NameIntegrated Device Technology
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerIDT (Integrated Device Technology)
Parts packaging codeTQFP
package instructionTQFP-128
Contacts128
Manufacturer packaging codePK128
Reach Compliance Codenot_compliant
ECCN codeEAR99
Maximum access time6.5 ns
Maximum clock frequency (fCLK)100 MHz
period time10 ns
JESD-30 codeR-PQFP-G128
JESD-609 codee0
length20 mm
memory density9216 bit
Memory IC TypeOTHER FIFO
memory width18
Humidity sensitivity level3
Number of functions1
Number of terminals128
word count512 words
character code512
Operating modeSYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize512X18
ExportableYES
Package body materialPLASTIC/EPOXY
encapsulated codeLFQFP
Encapsulate equivalent codeQFP128,.63X.87,20
Package shapeRECTANGULAR
Package formFLATPACK, LOW PROFILE, FINE PITCH
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)225
power supply3.3 V
Certification statusNot Qualified
Maximum seat height1.6 mm
Maximum standby current0.01 A
Maximum slew rate0.06 mA
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)3 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn85Pb15)
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
width14 mm
Base Number Matches1
3.3 VOLT CMOS DUAL SyncFIFO™
DUAL 256 x 18, DUAL 512 x 18,
DUAL 1,024 x 18, DUAL 2,048 x 18
and DUAL 4,096 x 18
LEAD FINISH (SnPb) ARE IN EOL PROCESS - LAST TIME BUY EXPIRES JUNE 15, 2018
IDT72V805
IDT72V815
IDT72V825
IDT72V835
IDT72V845
FEATURES:
The IDT72V805 is equivalent to two IDT72V205 256 x 18 FIFOs
The IDT72V815 is equivalent to two IDT72V215 512 x 18 FIFOs
The IDT72V825 is equivalent to two IDT72V225 1,024 x 18 FIFOs
The IDT72V835 is equivalent to two IDT72V235 2,048 x 18 FIFOs
The IDT72V845 is equivalent to two IDT72V245 4,096 x 18 FIFOs
Offers optimal combination of large capacity (8K), high speed,
design flexibility, and small footprint
Ideal for the following applications:
– Network switching
– Two level prioritization of parallel data
– Bidirectional data transfer
– Bus-matching between 18-bit and 36-bit data paths
– Width expansion to 36-bit per package
– Depth expansion to 8,192 words per package
10 ns read/write cycle time
5V input tolerant
IDT Standard or First Word Fall Through timing
Single or double register-buffered Empty and Full Flags
Easily expandable in depth and width
Asynchronous or coincident Read and Write Clocks
Asynchronous or synchronous programmable Almost-Empty
and Almost-Full flags with default settings
Half-Full flag capability
Output enable puts output data bus in high-impedance state
High-performance submicron CMOS technology
Available in a 128-pin thin quad flatpack (TQFP)
Industrial temperature range (–40°C to +85°C) is available
Green parts available, see ordering information
DESCRIPTION:
The IDT72V805/72V815/72V825/72V835/72V845 are dual 18-bit-wide
synchronous (clocked) First-in, First-out (FIFO) memories designed to run
off a 3.3V supply for exceptionally low power consumption. One dual
IDT72V805/72V815/72V825/72V835/72V845 device is functionally equiva-
lent to two IDT72V205/72V215/72V225/72V235/72V245 FIFOs in a single
package with all associated control, data, and flag lines assigned to
independent pins. These devices are very high-speed, low-power First-In,

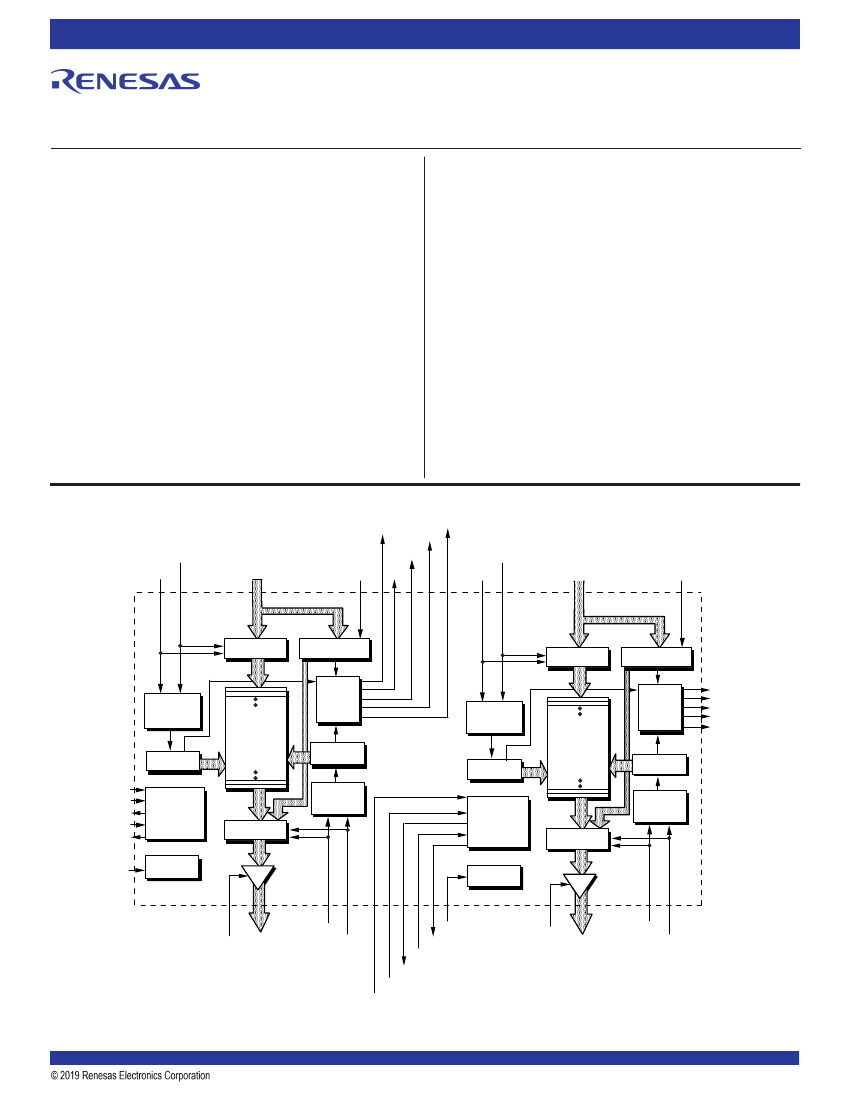

FUNCTIONAL BLOCK DIAGRAM
FFA/IRA
WCLKA
WENA
HFA/(WXOA)
PAEA
EFA/
ORA
WCLKB
WENB
PAFA
DA
0
-DA
17
LDA
DB0-DB17
LDB
INPUT
REGISTER
OFFSET
REGISTER
INPUT
REGISTER
OFFSET
REGISTER
FFB/IRB
PAFB
EFB/ORB
PAEB
HFB/(WXOB)
WRITE
CONTROL
LOGIC
WRITE
POINTER
FLA
WXIA
(HFA)/WXOA
RXIA
RXOA
RSA
RAM
ARRAY
256 x 18
512 x 18
1,024 x 18
2,048 x 18
4,096 x 18
FLAG
LOGIC
WRITE
CONTROL
LOGIC
READ
POINTER
READ
CONTROL
LOGIC
WRITE
POINTER
RAM
ARRAY
256 x 18
512 x 18
1,024 x 18
2,048 x 18
4,096 x 18
FLAG
LOGIC
READ
POINTER
READ
CONTROL
LOGIC
EXPANSION
LOGIC
OUTPUT
REGISTER
EXPANSION
LOGIC
OUTPUT
REGISTER
RESET
LOGIC
RESET
LOGIC
OEA
QA
0
-QA
17
RCLKA
RENA
RSB
RXOB
RXIB
(HFB)/WXOB
WXIB
FLB
OEB
QB
0
-QB
17
RCLKB
RENB
4295 drw 01
IDT and the IDT logo are registered trademarks of Integrated Device Technology, Inc. The SyncFIFO is a trademark of Integrated Device Technology, Inc.
COMMERCIAL AND INDUSTRIAL TEMPERATURE RANGES
1
©
2018 Integrated Device Technology, Inc. All rights reserved. Product specifications subject to change without notice.
MARCH 2018
DSC-4295/7
