DC-133-015-125-THNB datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> DC-133-015-125-THNB

DC-133-015-125-THNB: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size1MB，1 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

DC-133-015-125-THNB Overview

Connector Accessory

DC-133-015-125-THNB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AirBorn
Reach Compliance Code	compli
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	DC
Base Number Matches	1

Preview

Download Datasheet

View All

CALL 512-863-5585

x6464

DIMENSIONS

(metric table below)

CONTACT CUSTOMER SERVICE

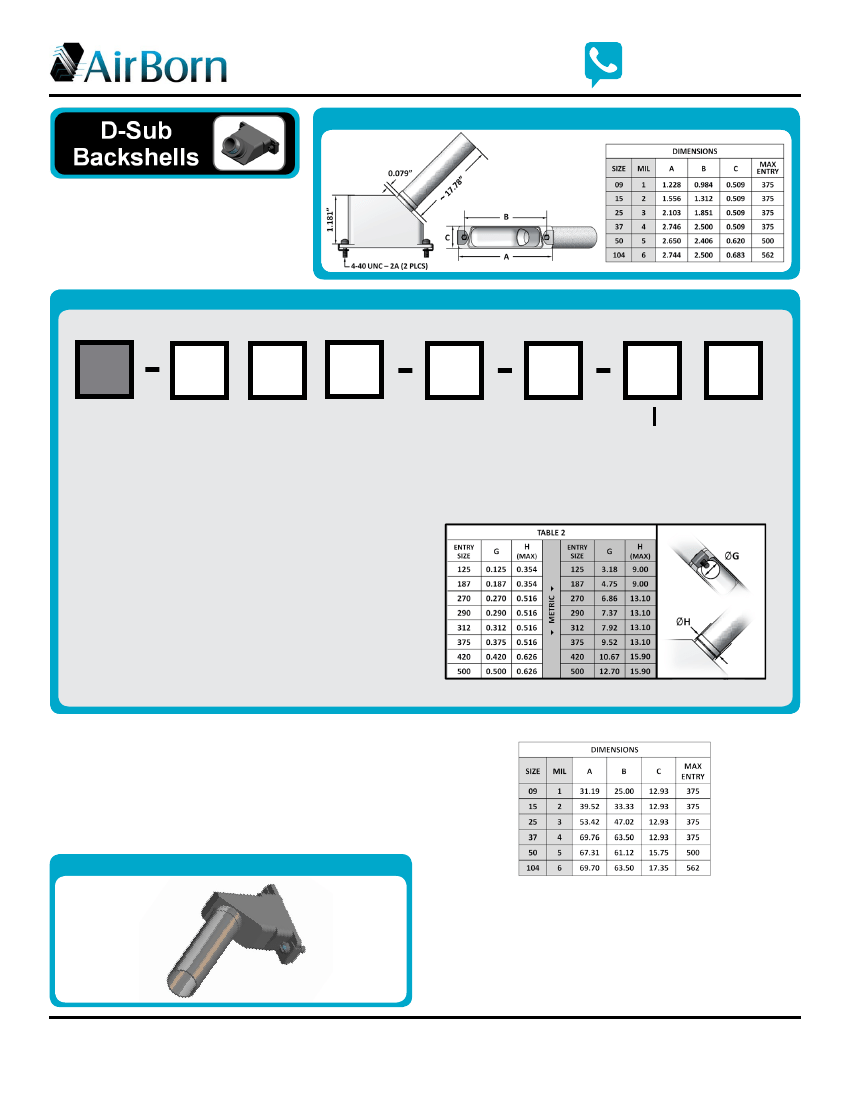

DC 3 – Braid Tail Backshell with

Circular, 45° Right End Entry

For use with D-Subminiature and

MIL-DTL-24308 connectors.

ORDER FORM

ENTER

CODE

ENTER

CODE

ENTER

CODE

Sample Part Number Format: DC-132-009-XXX-SHTB

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

SERIES

Braid Tail*

Backshells for

D-Subminiature

Connectors

MATERIAL

1 – Aluminum

alloy

STYLE

3 – 45° circular,

right end

entry

PLATING

2 – Nickel-plated

aluminum

3 – Cadmium-plated

aluminum ‡

D – Cadmium, olive

drab ‡

Z – Zinc cobalt over

nickel

SIZE

009 – 9 Contacts

015 – 15 Contacts

025 – 25 Contacts

037 – 37 Contacts

050 – 50 Contacts

104 – 104 Contacts

ENTRY SIZE

See Table 2 below

OPTIONS

NB – Nickel-plated

braid

TB – Tin-plated braid

HARDWARE

00 – None

SH – Slot head screw with clip

AH – Allen head screw with clip

AE – Allen head screw with E-clip

JP – Jackpost

TH – Threaded hole

NOTES

* Pre-installed braid tail (min 93% coverage)

‡ Option not RoHS-compliant

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

MATERIALS and FINISHES

Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy

Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½

Electrodeposited cadmium per SAE AMS-QQ-P-416, Type II, Class 2

Cadmium, olive drab, SAE AMS-QQ-P-316, Type II, Class 3 over elelctroless nickel

Zinc cobalt over electroless nickel with olive drab chromate conversion

Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640, Type 1 or

AISI-303 or EN 10088-3 1½4305, passivated per SAE AMS-2700, Method 2

Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M

Passivated per SAE AMS-2700, Method 2

METRIC

(for reference, only)

DC-132-009-XXX-SHTB

DC3-PNB-1

www.airborn.com

(512 ) 863-5585
