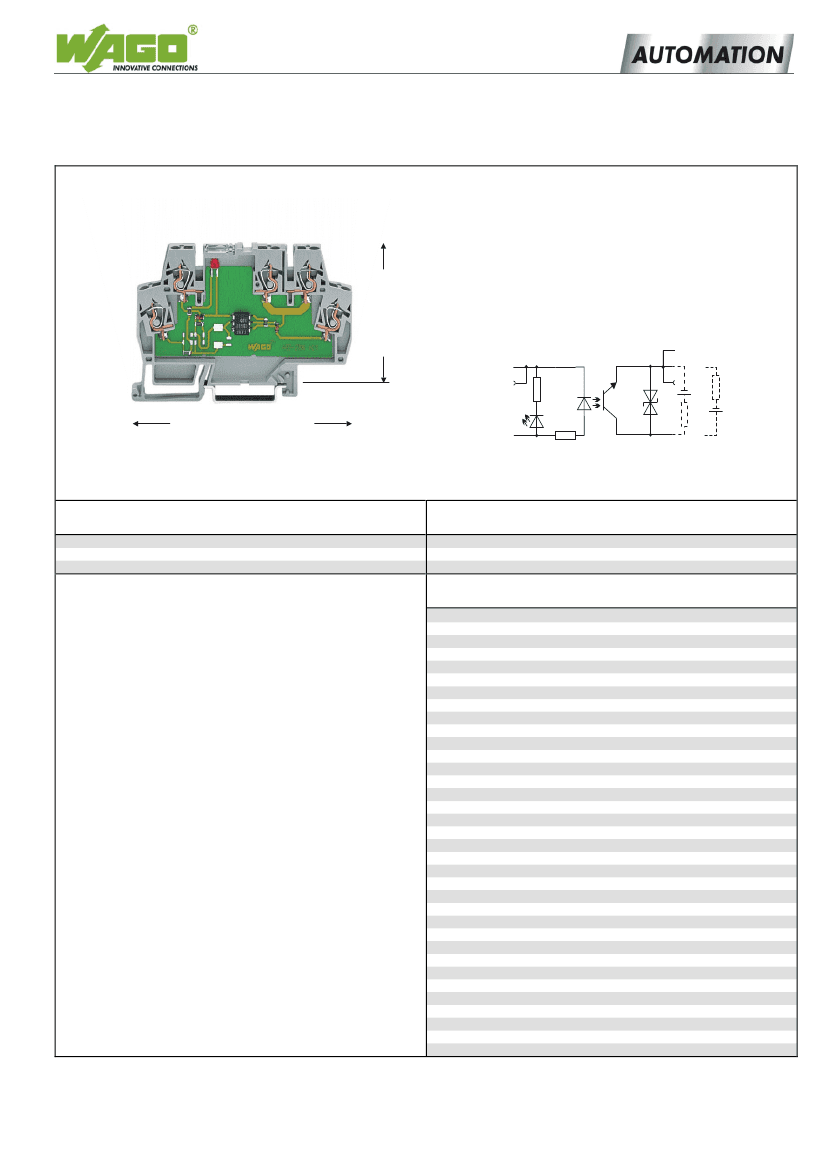

Electronic Terminal Block with Optocoupler

Optocoupler for DIN 35 rail

1/2

Data sheet

56 mm / 2.2 in

-2

91 mm / 3.58 in

Description

Input DC 5 V ; TTL , Output DC 3-30V ; 100 mA

Item-No.

859-795

Pack.-unit

pcs



Optocoupler for small switching powers.

TTL capable input.

Extended input voltage and temperature range for

railway applications.

Extended output voltage range DC 3-30 V.

Mounting side by side without derating.

Input with reverse voltage protection.

Output with reverse voltage protection.

Mounting on DIN 35 rail.

Technical Data

Input nominal voltage U

Input voltage range

0-level

1-level

Input current range

Current at nominal voltage

DC 5 V

0-0.8 V

2-6.25 V

DC 3.8-23 mA

DC 17.5 mA

Output nominal voltage

DC 24 V

Output voltage range

DC 3-30 V

Max.continuous current (20 °C) 100 mA

(40 °C) 80 mA

(70 °C) 50 mA

Reverse voltage transistor

DC 65 V

Switch on / Switch off time

10 µs / 50 µs

Max. frequency

10 kHz

Leakage current

at nominal voltage

25 µA

Voltage drop output

≤

Test voltage

input / output

2.5 kV

rms

Operating at normal rating

100 % continuous duty

Ambient operating temperature -25 °C...+40 °C

Max. operating temperature

at reduced current

+70 °C

Storage temperature

-40 °C...+70 °C

Module width

6 mm / 0.236 in

Wire connection

CAGE CLAMP®

0.08-2.5 mm / AWG 28-14

Stripped length

5-6 mm / 0.22 in

The optocoupler modules meet the requirements for an

extended input voltage and temperature range in accordance

with DIN EN 50155 / VDE 0115 part 200 / 5.96, “Railway

applications. Electronical traction equipment”.

They can be used on vehicles operated with alternating

current having a supply from the catenary via a transformer

with battery charger and battery. The constant deviation from

the operating voltage can, in this case, vary between –30 %

and +25 %.

The temperature range extended to 70 °C corresponds to the

maximum air temperature range in inner rooms of vehicles

and housings located unprotected in the open air.

WAGO Kontakttechnik GmbH & Co. KG

Subject to design changes

09.02.2011 / d679500e.doc
