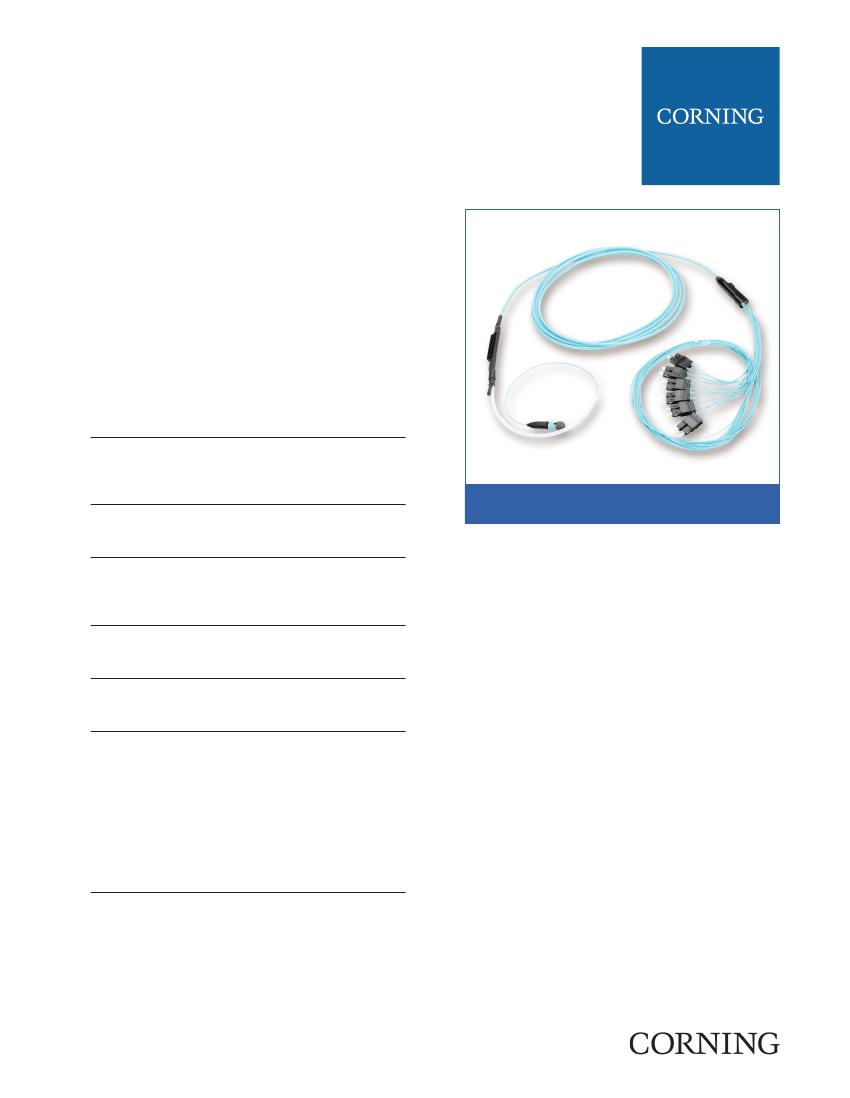

Plug & Play™ Universal Hybrid Trunk
Single-mode (OS2), MTP
®
(non-pinned) to SC Duplex, 48 F, 24-in
MTP legs and 36-in SC legs, pulling grip one side, 100 ft
Plug and Play™ Universal System Hybrid Connector
trunks are terminated with MTP
®
connectors on one
end of the trunk and SC connectors on the other end for
applications requiring one end of the trunk to connect di-
rectly into system equipment or patch panels. Both Plug
and Play Universal System trunks and extender trunks
are available in hybrid connector options.
Features and Benefits
Factory-terminated solutions
Provide consistent quality, ensure system performance,
and reduce installation time
Universal-wired modular system components
Enable moves, adds and changes without polarity con-
cerns; provide a simple migration path between 2-fiber
and parallel optics applications
Low insertion loss performance
Allows for more connections in a link when deploying a
TIA-942-compliant system
Corning
®
ClearCurve
®
50 μm optical fiber
Offers enhanced bend performance, allowing tighter
cable routing without negatively impacting system perfor-
mance
100G ready performance
Ensures product will meet the requirements of 100G
Ethernet applications
Maximum skew of 0.75 ns
Product is assured to work in parallel optic applications
for Ethernet, Fiber Channel and InfiniBand
Protective pulling grips
Protects both ends of assembly during installation
Part Number: A907248GADALW100F
Standards
Design and Test Criteria
NFPA 262 (for plenum, riser
and general building appli-
cations)
National Electrical Code
®
(NEC
®
) OFCP, CSA FT-6
Approvals and Listings
Product Specification A907248GADALW100F_NAFTA_AEN
Page 1 | Revision date 2016-02-13
Plug & Play™ Universal Hybrid Trunk
Single-mode (OS2), MTP
®
(non-pinned) to SC Duplex, 48 F, 24-in
MTP legs and 36-in SC legs, pulling grip one side, 100 ft
Specifications
General Specifications
Application
Cable Assembly Type
Cable Type
Number of Pulling Grips
Fiber Category
Flame Rating
Data Center LAN/SAN
Plug & Play™ Extender Trunk
Indoor; ANSI/ICEA S-83-596
1
Single-mode (OS2)
Plenum (OFCP)
Temperature Range
Operation
-10 °C to 60 °C (14 °F to 140 °F)
Design - Connector A
Connector Type
Ferrule Material
MTP
®
(non-pinned)
Composite
Optical Specifications - Connector A
Insertion Loss, Max.
Reflectance
0.75 dB
< -55 dB
Design - Connector B
Connector Type
Ferrule Material
SC duplex
Ceramic
Optical Specifications - Connector B
Insertion Loss, Max.
Reflectance
0.5 dB
< -58 dB
Product Specification A907248GADALW100F_NAFTA_AEN
Page 2 | Revision date 2016-02-13
Plug & Play™ Universal Hybrid Trunk
Single-mode (OS2), MTP
®
(non-pinned) to SC Duplex, 48 F, 24-in
MTP legs and 36-in SC legs, pulling grip one side, 100 ft
Cable Design
Fiber Count
Outer Jacket Color
Polarity
48
Yellow
Universal; TIA-568 Type-C
Mechanical Characteristics Cable
Nominal Outer Diameter
Min. Bend Radius Installation
Min. Bend Radius Operation
Max. Tensile Strength for Installation
Weight
17.3 mm (± 1.5 mm) (0.68 in (± 0.06 in))
173 mm (6.8 in)
260 mm (10.2 in)
660 N
209 kg/km (140 lb/1000 ft)
Optical Characteristics (cabled)
Fiber Compliance
Wavelengths
Maximum Attenuation
Serial 1 Gigabit Ethernet
Serial 10 Gigabit Ethernet
Induced Attenuation @ 10 mm Radius
ITU-T G.652.D and ITU-T G.657.A1
1310 nm / 1550 nm
0.4 dB/km / 0.3 dB/km
5000 m / - / -
10000 m / - / 40000 m
< 0.5 dB (1 turn; 10 mm radius; 1550 nm)
Furcation - Connector A
Leg Length
Leg Color
Leg Diameter
Furcation Type - A
610 mm [Shortest Leg = (+76 mm/-0 mm), Others Vary] (24 in
[Shortest Leg = (+3 in/-0 in), Others Vary])
Yellow
2.0 mm
PnP Size 2
Furcation - Connector B
Leg Length
Leg Color
Leg Diameter
Furcation Type - B
914 mm [Shortest Leg = (+76 mm/-0 mm), Others Vary] (36 in
[Shortest Leg = (+3 in/-0 in), Others Vary])
Yellow
2.0 mm
PnP Size 2
Product Specification A907248GADALW100F_NAFTA_AEN
Page 3 | Revision date 2016-02-13
Plug & Play™ Universal Hybrid Trunk
Single-mode (OS2), MTP
®
(non-pinned) to SC Duplex, 48 F, 24-in
MTP legs and 36-in SC legs, pulling grip one side, 100 ft
Pulling Grip - Connector A
Pulling Grip - Connector A
Pulling Grip Outer Diameter
Min. Duct Size Diameter
Tensile Strength
Yes
44 mm (1.75 in)
57 mm (2.25 in)
440 N (100 lb)
Pulling Grip - Connector B
Pulling Grip - Connector B
No
Chemical Characteristics
RoHS
Free of hazardous substances according to RoHS 2002/95/
EG
Fiber Specifications
Optical Characteristics (cabled)
Fiber Type
Fiber Core Diameter
Fiber Category
Fiber Compliance
Fiber Code
Wavelengths
Maximum Attenuation
Serial 1 Gigabit Ethernet
Serial 10 Gigabit Ethernet
Induced Attenuation @ 10 mm Radius
Single-Mode Ultra-Bendable Fiber
8.2 µm
OS2
ITU-T G.652.D and ITU-T G.657.A1
G
1310 nm / 1383 nm / 1550 nm
0.4 dB/km / 0.4 dB/km / 0.3 dB/km
5000 m / - / -
10000 m / - / 40000 m
0.5 dB (1 turn; 10 mm radius; 1550 nm)
*
ITU-T G.652 D compliant.
*
Meets 0.75 ns optical skew when used in all Corning Plug and Play™/EDGE
™
systems solutions.
Notes:
1)
Improved attenuation and bandwidth options available.
2)
Bend-insensitive single-mode fibers available on request.
3)
Contact a Corning Customer Care Representative for additional information.
Product Specification A907248GADALW100F_NAFTA_AEN
Page 4 | Revision date 2016-02-13
Plug & Play™ Universal Hybrid Trunk
Single-mode (OS2), MTP
®
(non-pinned) to SC Duplex, 48 F, 24-in
MTP legs and 36-in SC legs, pulling grip one side, 100 ft
Ordering Information
Part Number
Product Description
EAN Code
Length
Weight
A907248GADALW100F
Plug & Play™ Universal Hybrid Trunk, Armored, Single-mode
(OS2), MTP
®
(non-pinned) to SC Duplex, 48 F, 24-in MTP legs
and 36-in SC legs, pulling grip one side, 100 ft
4056418671376
100 ft (+8.5 ft/-0 ft) (30 m (+2.59 m/-0 m))
62 lb (28 kg)
Shipping Information
Units per Delivery
1/1
Corning Optical Communications LLC • PO Box 489 • Hickory, NC 28603-0489 USA
800-743-2675 • FAX: 828-325-5060 • International: +1-828-901-5000 • www.corning.com/opcomm
A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/trademarks.
All other trademarks are the properties of their respective owners. Corning Optical Communications is ISO 9001 certified.
© 2016 Corning Optical Communications. All rights reserved.
Product Specification A907248GADALW100F_NAFTA_AEN
