NOTES:
1.
2.
PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX,
CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS AND OPEN.
336203-12-XXX AND DATE CODE".
336203-12-XXXX
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
A
RELEASE TO MFG
DESCRIPTION
08-Feb-11
DATE
ECO
--
APPR
RAK
SCALE
1.000
XXXX MM LENGTH
2
D'FLAT
3
1
0.75" MAX
[19.05]MM MAX
HEX NUT
LOCK WASHER
GASKET
336203-12-0100
336203-12-0150
336203-12-0250
336203-12-0300
336203-12-0200
336203-12-0050
CONNEX NUMBER
CABLE LENGTH IN MM
100 #3.81
150 #3.81
250 #5.08
300 #5.08
200 #5.08
50 #3.81
LENGTH TABLE
CABLE LENGTH IN INCHES
1.96 #0.15
3.93 #0.15
5.90 #0.15
7.87 #0.20
9.84 #0.2
ORIENT AMC INTERFACE
WITH RESPECT TO TNC BLKHD 'D FLAT'
AS SHOWN WITH IN #
10 $
11.81 #0.20
DESIGN REQUIREMENTS:
FREQUENCY___________ TO ______________ GHz
VSWR ____________ :
MAX
* ADDITIONAL LENGTHS CAN BE PROVIDED
BY CHANGING XX.XX TO DESIRED LEGNTH IN MM
CONTACT CONNEX MARKETING FOR QUOTE
X
CONTINUITY
X
HI-POT : 250 VRMS
OTHER
009-954-458
100901-02
122526
A/R
1
1
3
2
ITEM
TITLE
INS. LOSS ____________ dB MAX
PART NUMBER
MATERIAL
DRAWN
QTY
1
MICRO COAX PLUG TERMINATED TO 1.13MM CABLE
DESCRIPTION
TNC BLKHD CRIMP JACK
HEAT SHRINK TUBING
FINISH
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015
(0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
ABHAYA KISHORE
ABHAYA KISHORE
08-Feb-11
08-Feb-11
DATE
DATE
DATE
ENGINEER
REFERENCE
APPROVED
CAD FILE
TASK - 561

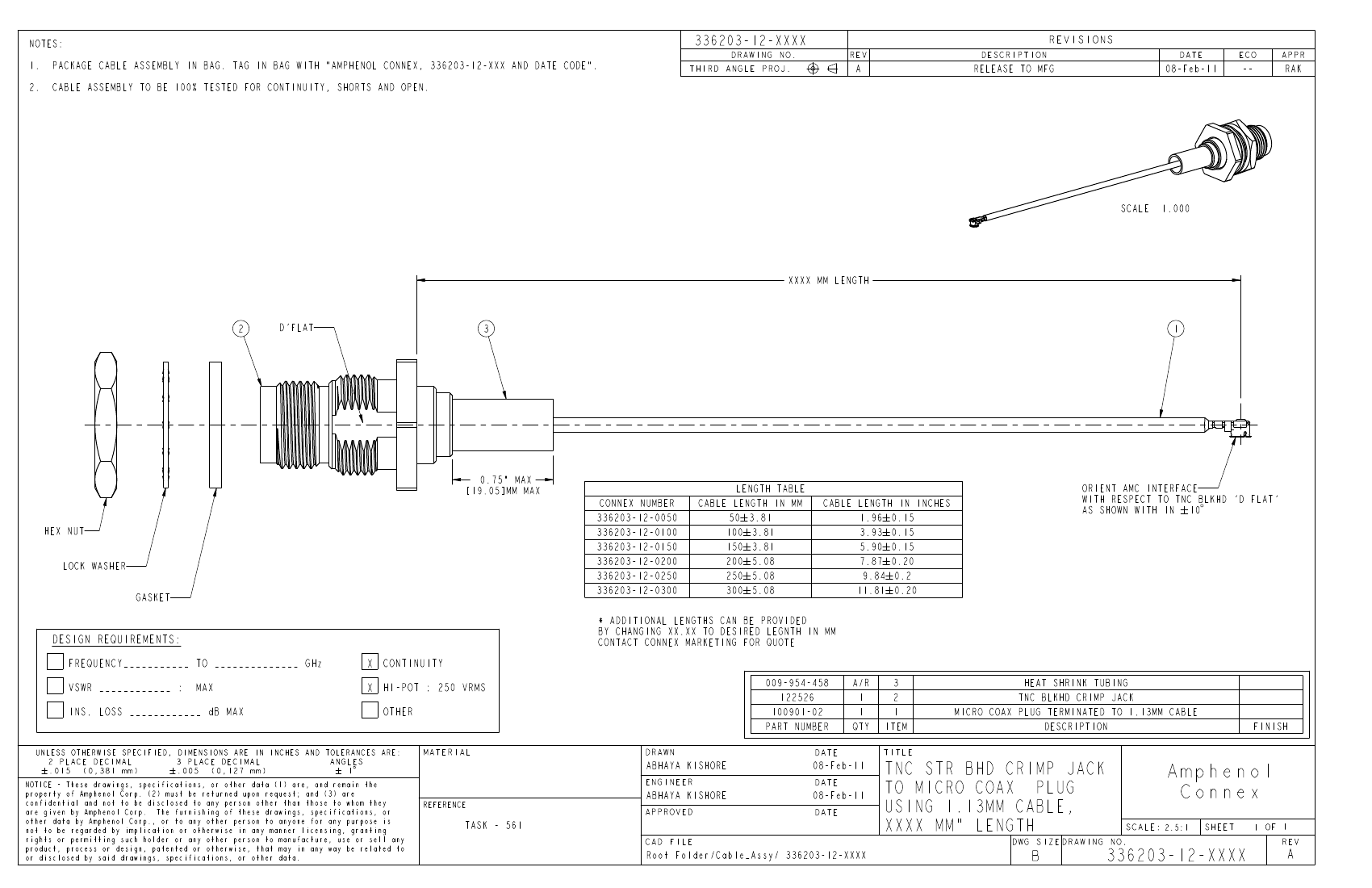

TNC STR BHD CRIMP JACK
TO MICRO COAX PLUG
USING 1.13MM CABLE,
XXXX MM" LENGTH
B
Amphenol
Connex
SCALE: 2.5:1
SHEET
1 OF 1
REV
Root Folder/Cable_Assy/ 336203-12-XXXX
DWG SIZE DRAWING NO.
336203-12-XXXX
A
