901-9244-2: DescriptionRF connectors / coaxial connectors sma type panel jacke - gold; CategoryThe connector; File Size48KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

901-9244-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	901-9244-2	-	-	View	Buy Now

901-9244-2 Overview

RF connectors / coaxial connectors sma type panel jacke - gold

901-9244-2 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	Connectors
RF Series	SMA
Gende	Jack
Polarity	Standard
Impedance	50 Ohms
Maximum Frequency	18 GHz
Body Material	Stainless Steel
Body Finish	Gold
Contact Material	Beryllium Coppe
Contact Plating	Gold
Contact Terminati	Solde
Mounting Type	2-Hole Flange
Termination Style	Solder Cu
Coupling Mechanism	Threaded
Orientati	Straigh
Mating Cycles	100
Operating Temperature Range	- 65 C to + 165 C

Preview

Download Datasheet

View All

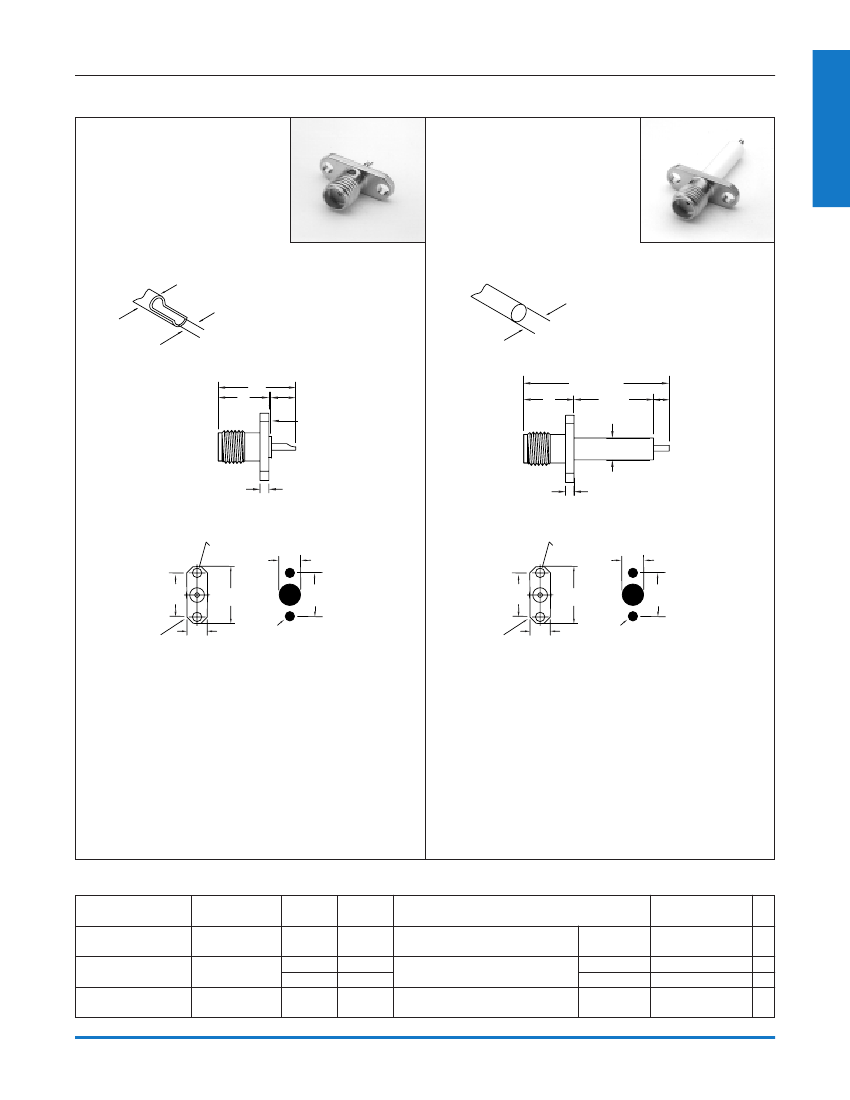

SMA

Panel Jack Receptacles – 2-hole Flange

Fig. 1

Fig. 2

Amphenol

®

SMA

.050(1.3)

o.d.

.030(0.8)

i.d.

solder cup

.050(1.3)

o.d.

.575(14.6)

.375

(9.5)

.175(4.4)

a

TFE

.375

(9.53)

1.08(27.5)

a

TFE

d

.065(1.65)

.065

(1.65)

.162(4.1)dia. (TFE)

.102

(2.6)

dia.

.270

(6.8)

.481

(12.2)

.102(2.6)dia.

2 holes

.102

(2.6)

dia.

.270

(6.8)

.481

(12.2)

.102(2.6)dia.

2 holes

.481(12.2)

.625(15.9)

.481(12.2)

.625(15.9)

.233(5.7)

.065(1.7)

thick

.233(5.7)

.065(1.7)

thick

SMA Panel Jack Receptacles

2-Hole Trimline Flange Mount

Solder Cup Terminal

901-9244-2

Gold Plated

SMA Panel Jack Receptacles

2-Hole Trimline Flange Mount

Exposed TFE

Blunt Post Terminal

901-9000-CC

Gold Plated

901-9000-CCSF

Passivated Finish

901-9185-CCSF

Passivated Finish

SMA PANEL JACK RECEPTACLES –

2-hole trimline flange

Description

Panel Jack Receptacle

Terminal

Type

Solder Cup

Blunt Post

Plt.

P10

P13

Ins.

D1

Construction Notes

Captive Contact/

a= .025" (0.6mm) Exposed TFE

Captive Contact/d=.117(3.0) Long Post

a= .590" (15.0mm) Exposed TFE

Captive Contact/d=.103(2.6) Long Post

a= .334" (8.5mm) Exposed TFE

Gold Plated

Passivated

Amphenol

Number

901-9244-2

901-9000-CC

901-9000-CCSF

901-9185-CCSF

Fig.

1

2

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

69

901-9244-2 Related Products

	901-9244-2	901-9000-CC	901-9000-CCSF	901-9185-CCSF
Description	RF connectors / coaxial connectors sma type panel jacke - gold	RF connectors / coaxial connectors 2-hole flange recep sma panel MT, AU	RF connectors / coaxial connectors sma panel jack	RF connectors / coaxial connectors sma recept assy
Manufacture	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors
RoHS	Yes	Yes	Yes	Yes
Produc	Connectors	Connectors	Connectors	Connectors
RF Series	SMA	SMA	SMA	SMA
Gende	Jack	Jack	Jack	Jack
Polarity	Standard	Standard	Standard	Standard
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Maximum Frequency	18 GHz	18 GHz	12.4 GHz	18 GHz
Body Material	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Body Finish	Gold	Gold	Passivated	Passivated
Contact Material	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe
Contact Plating	Gold	Gold	Gold	Gold
Mounting Type	2-Hole Flange	2-Hole Flange	2-Hole Flange	2-Hole Flange
Termination Style	Solder Cu	Round Pos	Round Pos	Round Pos
Orientati	Straigh	Straigh	Straigh	Straigh
