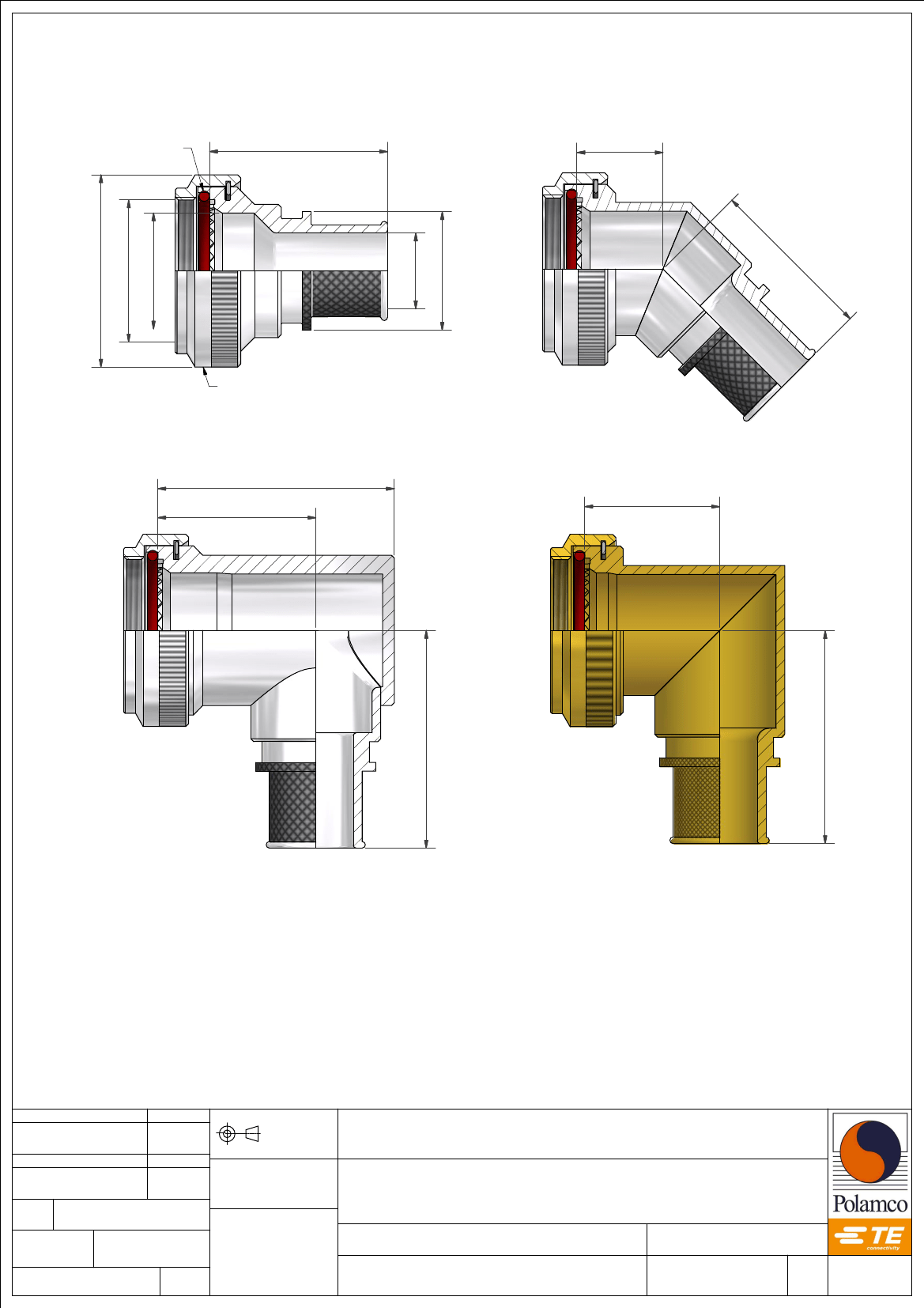

SILICONE O-RING
SEE NOTE
30,00
0,25
C
A THREAD
D
G
XXXX
PART MARK AND
BATCH NUMBER HERE
E
B
T
H
K
K
DRAWN
K.WINCZURA
DATE
18/09/2017
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
TITLE:
F
BTH SERIES
BANDING BACKSHELL
DESIGN APPROVAL
K.SHEPPARD
DATE
25/02/2008
DOC
TYPE
Customer Drawing
DCR
ISSUE/REV
AA
6624
WEIGHT
N/A
MATERIAL
SEE PART NUMBER
BREAKDOWN
FINISH
SEE PART NUMBER
BREAKDOWN
ASSY USED ON:
MIL-DTL-38999 SERIES III & IV
RESTRICTED TO:
NCAGE CODE U5792
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
SHT DRAWING NO:
1 P10744
F
TABLE 1
SHELL
SIZE
09
11
13
15
17
19
21
23
25
A
THREAD
M12 x 1.0
M15 x 1.0
M18 x 1.0
M22 x 1.0
M25 x 1.0
M28 x 1.0
M31 x 1.0
M34 x 1.0
M37 x 1.0
B
MAX
18,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
T
MIN
6,7
10,2
13,5
16,2
19,4
21,8
25,1
28,2
31,4
C
MAX
13,1
13,9
14,5
15,5
16,1
16,8
17,1
17,7
18,4
D
MAX
25,7
26,9
27,3
28,2
29,0
29,3
30,1
30,5
31,4
E
MAX
25,7
26,7
31,2
37,2
40,2
44,7
49,2
51,7
53,2
F
MAX
30,5
32,2
33,7
35,2
36,9
38,5
40,1
41,6
43,1
K
0,5
17,5
17,5
20,0
24,5
26,7
27,0
30,5
31,5
28,5
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
F
MAX
32,9
34,1
35,3
37,1
39,0
40,8
42,5
43,9
45,3
K
1,0
15,9
17,3
19,1
21,2
22,8
24,9
25,6
27,1
28,6
TABLE 2
ENTRY
SIZE
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
G
MIN
4,7
6,3
7,9
9,5
11,1
12,7
14,2
15,8
17,4
19,0
20,6
22,2
23,8
25,4
27,0
28,6
30,2
31,8
33,3
35,0
36,5
38,1
H
MAX
13,9
13,9
15,5
17,2
18,7
20,3
21,9
23,5
25,1
26,7
28,3
29,9
31,5
33,1
34,7
36,3
37,9
39,5
41,1
42,7
44,3
45,9
TABLE 3
CODE
1-C
1-B
1-ZB
1-ZK
1-ZN
4-J
46-J
2-Z
MATERIAL / FINISH
ALUMINIUM / ELECTROLESS NICKEL
ALUMINIUM / CADMIUM OLIVE DRAB OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC COBALT OLIVE DRAB OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC COBALT BLACK OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC NICKEL BLACK PASSIVATE OVER ELECTROLESS NICKEL
STAINLESS STEEL 300 SERIES / PASSIVATE
STAINLESS STEEL 316 / PASSIVATE
NICKEL ALUMINIUM BRONZE / SHOT BLAST
SEE SS0076 FOR FULL RNAGE OF FINISH OPTIONS
NOTE: FPM O-RING SUPPLIED WITH STAINLESS BACKSHELL
BTH1-17-08-1-C-SB
SERIES
CONNECTOR INTERFACE
ANGLE
SHELL SIZE (TABLE 1)
ENTRY SIZE (TABLE 2)
MATERIAL AND FINISH (TABLE 3)
SB - SUPPLIED WITH STANDARD BAND
SEE P22048 FOR OPTIONS
(OMIT FOR NO BAND SUPPLIED)
DRAWN
K.WINCZURA
DATE
18/09/2017
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
TITLE:
BTH SERIES
BANDING BACKSHELL
DESIGN APPROVAL
K.SHEPPARD
DATE
25/02/2008
DOC
TYPE
Customer Drawing
DCR
ISSUE/REV
AA
6624
WEIGHT
N/A
MATERIAL
SEE PART NUMBER
BREAKDOWN
FINISH
SEE PART NUMBER
BREAKDOWN
ASSY USED ON:
MIL-DTL-38999 SERIES III & IV
RESTRICTED TO:
NCAGE CODE U5792
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
SHT DRAWING NO:
2 P10744
