NOTES:
REFERENCE STANDARD IEC60169-11
1.
ELECTRICAL PERFORMANCE -
NOMINAL IMPEDANCE
FREQUENCY RANGE
VSWR
PIM
INSERTION LOSS
INSULATION RESISTANCE
D.W.V
CONDUCTOR RESISTANCE
II. MECHANICAL PERFORMANCE -
(NUT) TORQUE
(NUT) WHORL PULL
TENSILE FORCE(CABLE-CONNECTOR)
TORSION(CABLE-CONNECTOR)
III.MATERIAL AND PLATING -
INNER CONDUCTOR : SPRING BRONZE ALLOY, PLATING = Ag (5µm MIN.)
OUTER CONDUCTOR : BRASS, PLATING = COPPER-TIN-ZINC (2µm MIN.)
NUT
: BRASS, PLATING = NI (5µm MIN. )
GASKET
: SILICONE RUBBER
INSULATOR
: PTFE
4.1/9.5
IV. ENVIRONMENTAL -
MALE INTERFACE
TEMP RANGE
WEATHER STANDARD
THERMAL SHOCK
VIBRATION
SHOCK
WATERPROOFING STANDARD
V.
: -40°C TO +85°C
: IEC 60068 40/ 085/ 21
: IEC 60068-2-14-NA
: IEC 60068-2-6-FC
: IEC 60068-2-27
: IP67
:
:
:
:
10-12 N.m
500 N
500 N
4 N-m
:
:
:
:
:
:
:
:
50 #
2
DC-3.0 GHz
1.150 MAX.
-160 dBc MAX. (2x43dBm)
0.050 dB MAX. ( @ 3.0 GHz)
5000 M
MIN.
2500 VRMS
OUTER CONDUCTOR 1.0 m
MAX.
INNER CONDUCTOR 0.5 m
MAX.
DRAWING NO.
THIRD ANGLE PROJ.
332113
REVISIONS
REV
A
RELEASE TO MFG.
DESCRIPTION
03-Jan-14
DATE
ECO
--
AAP/BG
APPR
1.496 [38.00] REF.
0.827
[21.00]
SCALE
0.700
ASSEMBLY : INNER AND OUTER CONDUCTOR INSTALLED
0.866 ON HEX
[22.00]
2.200
[55.90]
REF.
0.827
[21,00]
VI. ROHS COMPLIANT
+0.000
-0.020
+0
[9.00
]
-0.50
0.354
[
16,00
+1,00
]
0
0.630
-0.000
+0.039
0.787
[20.00]
ON FLATS
0.020 x 45 $
[0.50 x 45 ]
$
RECOMMENDED CABLE
STRIPPING DIMENSIONS
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015 (0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
0.748 ON HEX
[19.00]
MATERIAL
DRAWN
SEE NOTES
REFERENCE
A ARUN PRABU
04-Oct-13
04-Oct-13
03-Jan-14
DATE
DATE
DATE

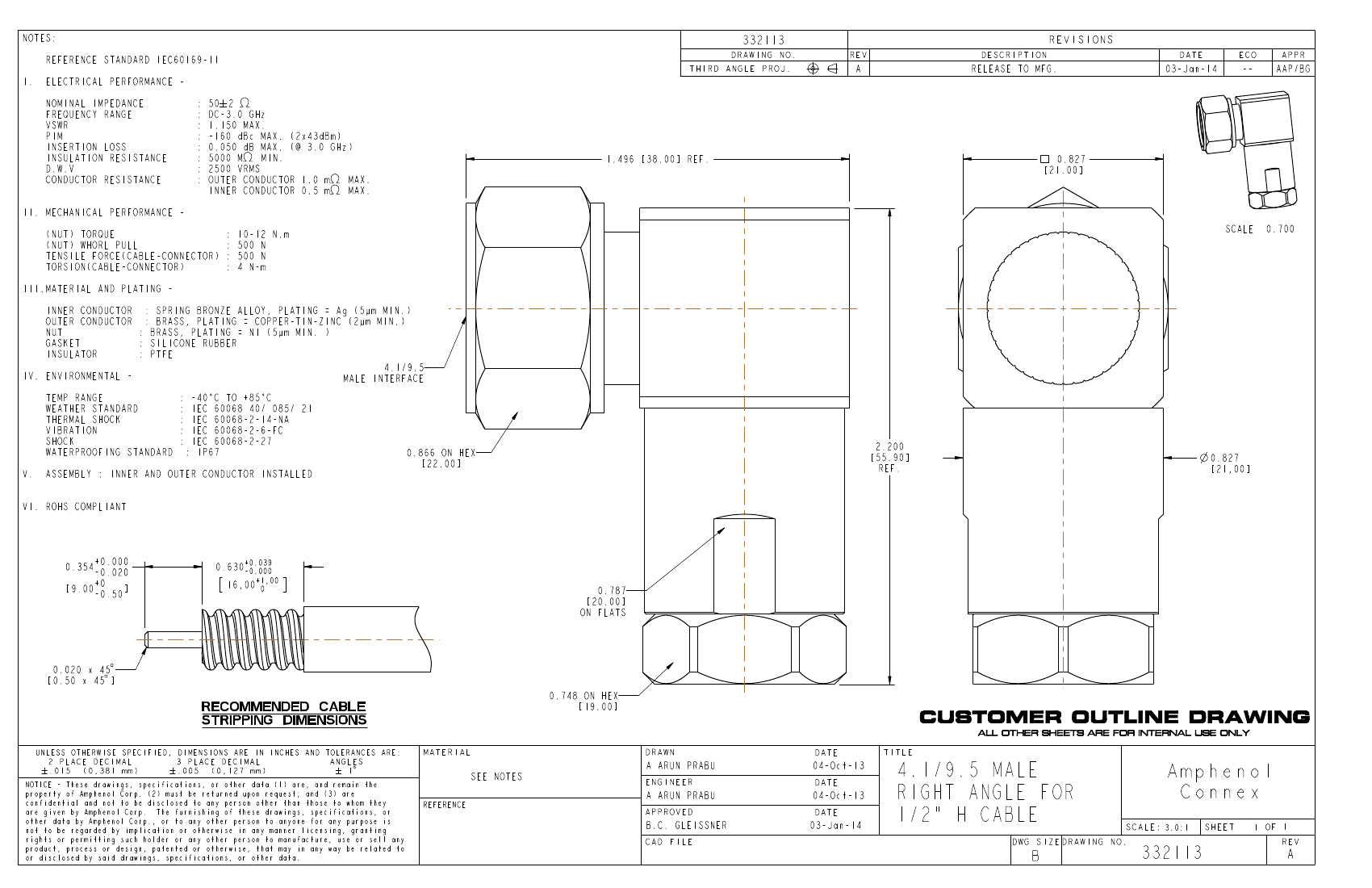

TITLE
ENGINEER
APPROVED
CAD FILE
A ARUN PRABU
B.C. GLEISSNER
4.1/9.5 MALE
RIGHT ANGLE FOR
1/2" H CABLE
B
Amphenol
Connex
SCALE: 3.0:1
SHEET
1 OF 1
REV
DWG SIZE DRAWING NO.
332113
A
