31-2242-RFX datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 31-2242-RFX

Preview

31-2242-RFX: DescriptionRF connectors / coaxial connectors plug RG-179 crimp; CategoryThe connector; File Size656KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

31-2242-RFX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-2242-RFX	-	-	View	Buy Now

31-2242-RFX Overview

RF connectors / coaxial connectors plug RG-179 crimp

31-2242-RFX Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	Connectors
RF Series	TNC
Gende	Jack
Polarity	Standard
Impedance	50 Ohms
Maximum Frequency	3 GHz
Body Material	Brass
Body Style	Straigh
Body Finish	Nickel
Contact Material	Brass
Contact Plating	Gold
Contact Terminati	Solde
Mounting Type	-
Termination Style	Cable - Crim
Coupling Mechanism	Threaded
Orientati	Straigh
Cable Type	RG-179, RG-187
Mating Cycles	500
Operating Temperature Range	- 65 C to + 165 C

Preview

Download Datasheet

View All

TNC

Plugs

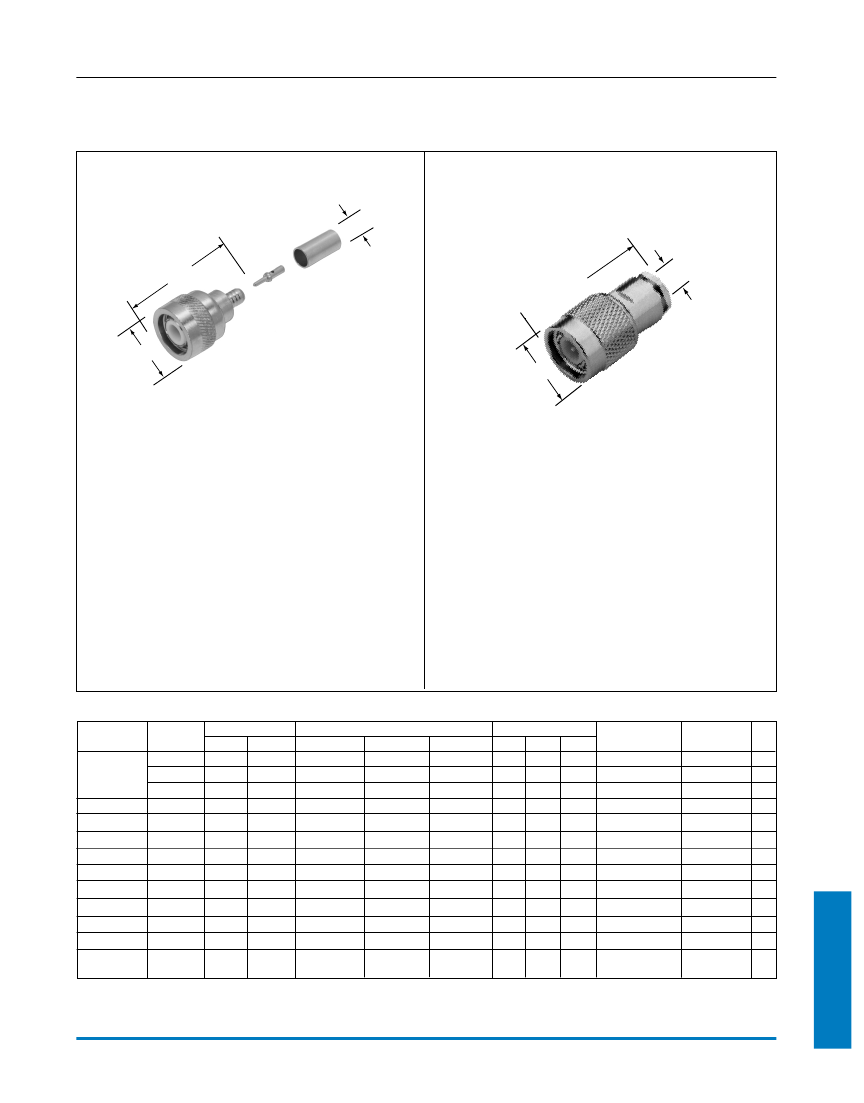

Fig. 1

Fig. 2

Amphenol

®

c•

a

■

a

c•

b

TNC Crimp Type Plugs

36825

31-2242

31-2242-RFX

31-2315

31-2315-RFX

31-2367

31-2367-RFX

31-2368

31-2368-RFX

31-2373

31-4452

TNC Clamp Type Plug

79875

79875-RFX

TNC STRAIGHT PLUGS

Cable

RG-/U

58, 141

59, 62

142, 223

142, 400

179, 187

174, 188

174, 188, 316

179, 187

59, 62

58, 142A

55, 58, 141,

142, 223, 400

Conn.

Type

Plug

Cable Attachment

Outer

Inner

Dimensions, inches (millimeters)

a

b

c

•

1.12(28.6)

■

1.12(28.6)

1.13(28.7)

1.12(28.6)

1.19(30.2)

1.17(29.7)

■

CAI

C36

Notes

Plt.

P15

Ins.

D1

Military

Number

—

M23329/4-05

Amphenol

Number

36825

31-2367-RFX

31-2368

31-4452*

31-2242

31-2315

31-2315-RFX

31-2242-RFX

31-2368-RFX

79875-RFX

79875*

Fig.

1

2

▲

Crimp

Clamp

Crimp

Solder

.610(15.5)

.610(Max.)

.500(12.7)

.610(15.5)

.517(13.1)

.827(21.0)

.610(15.5)

.206(5.2)

.261(6.6)

.220(5.6)

.120(3.0)

.115(2.9)

.106(2.7)

.260(6.6)

.212(5.4)

.224(5.7)

D1

D23

D1

M23329/4-01,4-03

31-2367

C36

P7

P15

P34

C36

C34

M23329/4-02,4-04

31-2373

M39012/26-0503

—

P7

P1

D1

D23

TNC

1.07(27.1)

■

1.06(27.0)

* recognized under the component program of U.L.,

▲

distributor stocked includes outer ferrule

Inc.

■

Amphenol Corporation Tel: 800-627-7100

141

www.amphenolrf.com
