S87L51FA-5A44 datasheet, PDF - EEWORLD Datasheet

S87L51FA-5A44: DescriptionIC 8-BIT, OTPROM, 8 MHz, MICROCONTROLLER, PQCC44, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size803KB，24 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

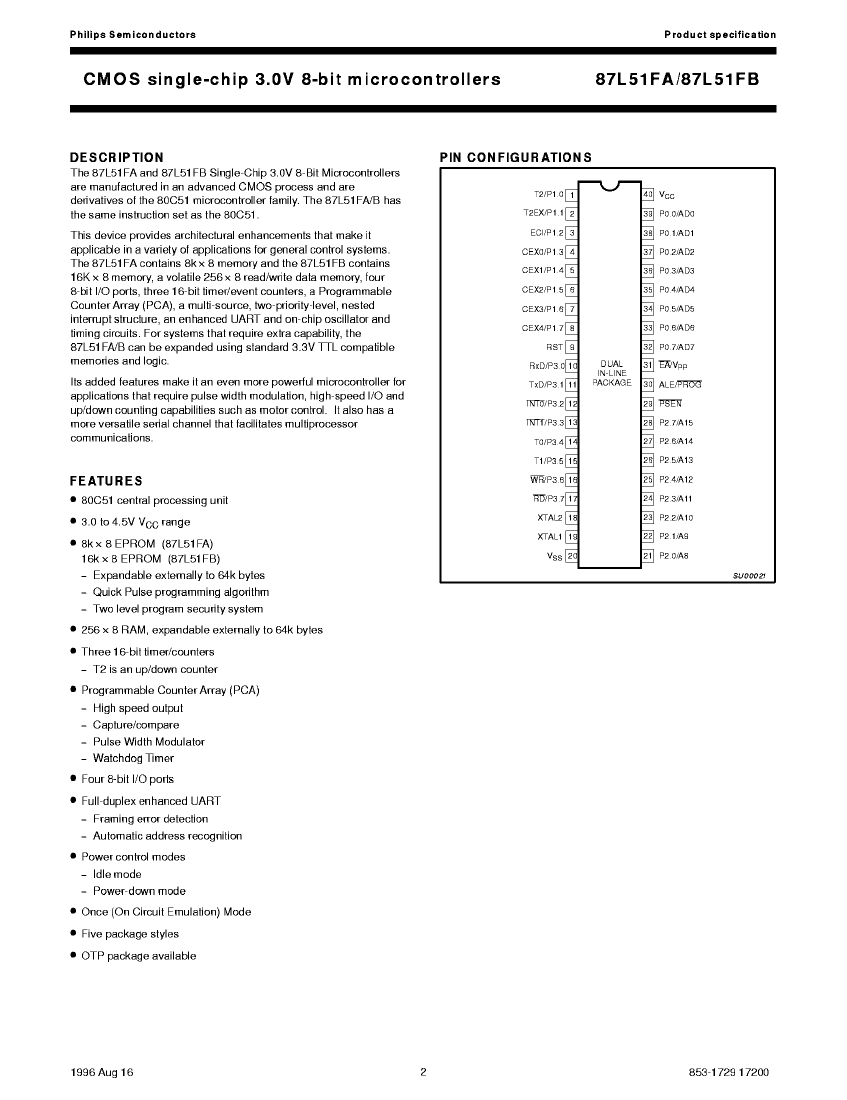

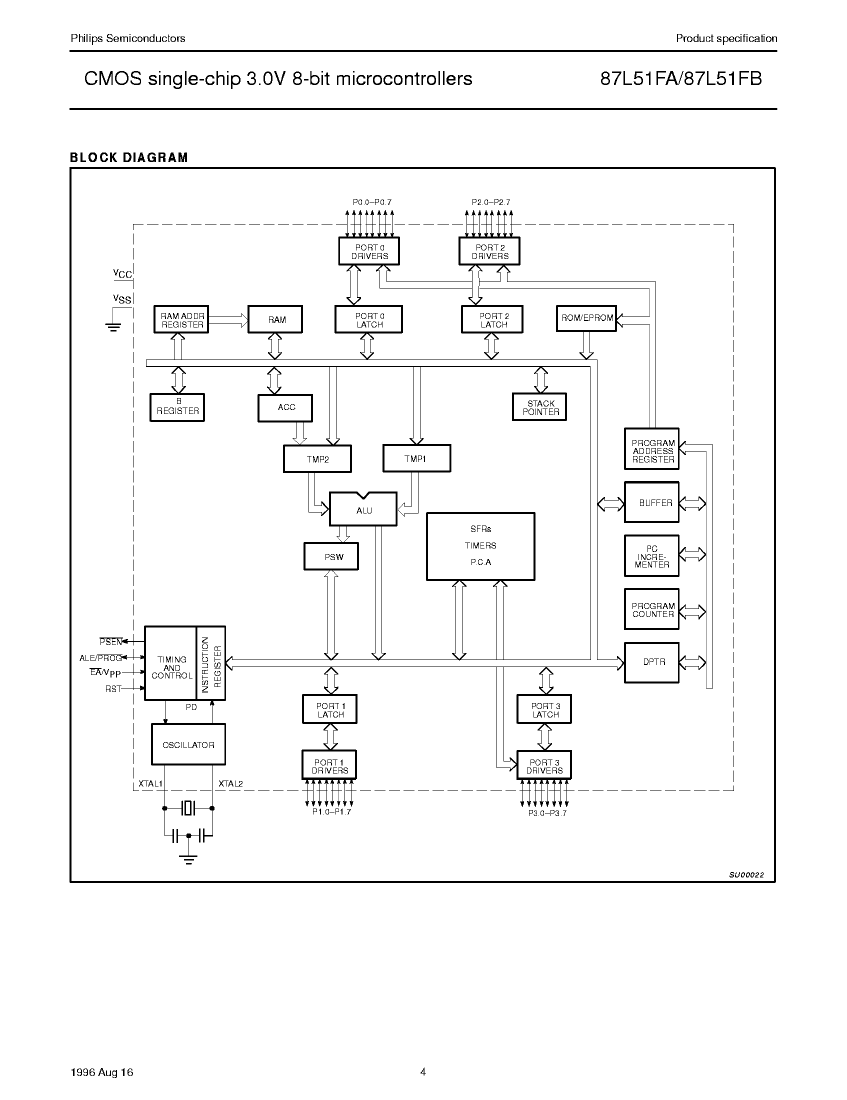

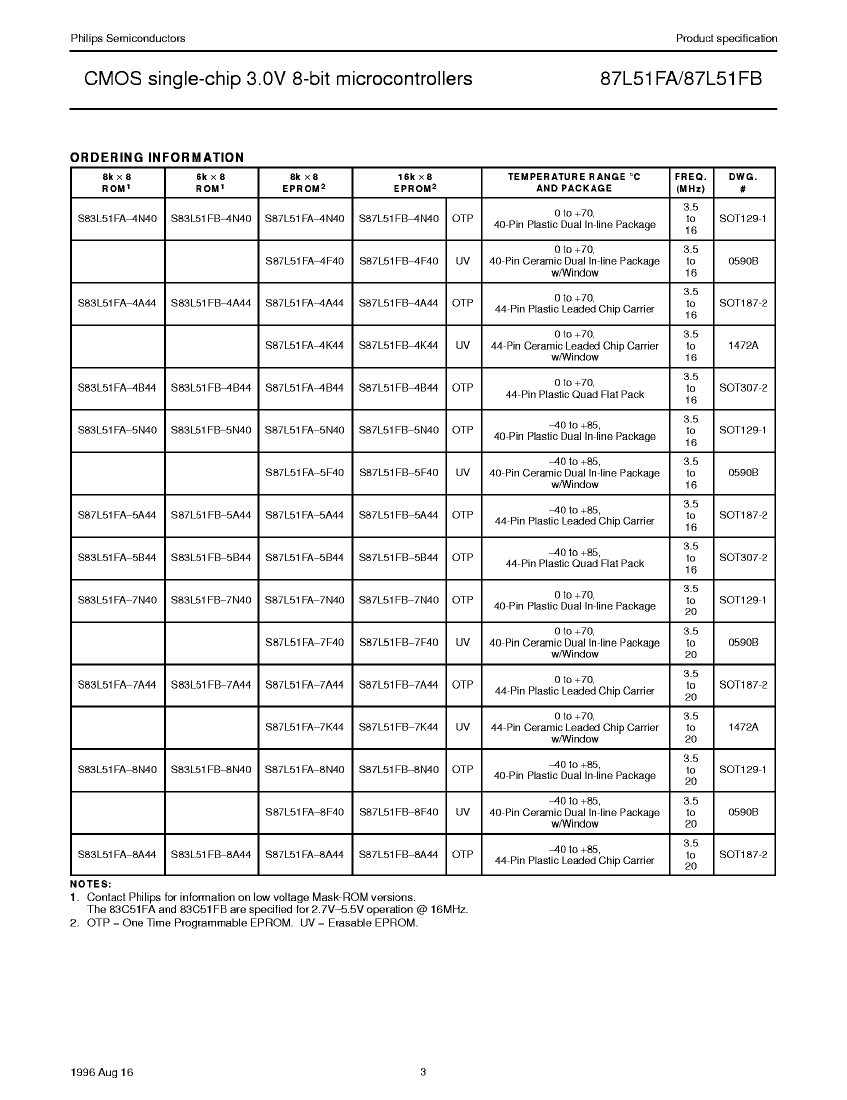

S87L51FA-5A44 Overview

IC 8-BIT, OTPROM, 8 MHz, MICROCONTROLLER, PQCC44, Microcontroller

Parameter Name	Attribute value
Maker	NXP
package instruction	QCCJ,
Reach Compliance Code	unknown
Is Samacsys	N
Has ADC	NO
Other features	PROGRAMMABLE COUNTER ARRAY; ON-CIRCUIT EMULATION
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J44
length	16.5862 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	44
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	8000
ROM programmability	OTPROM
Maximum seat height	4.57 mm
speed	8 MHz
Maximum slew rate	18.8 mA
Maximum supply voltage	4.5 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL

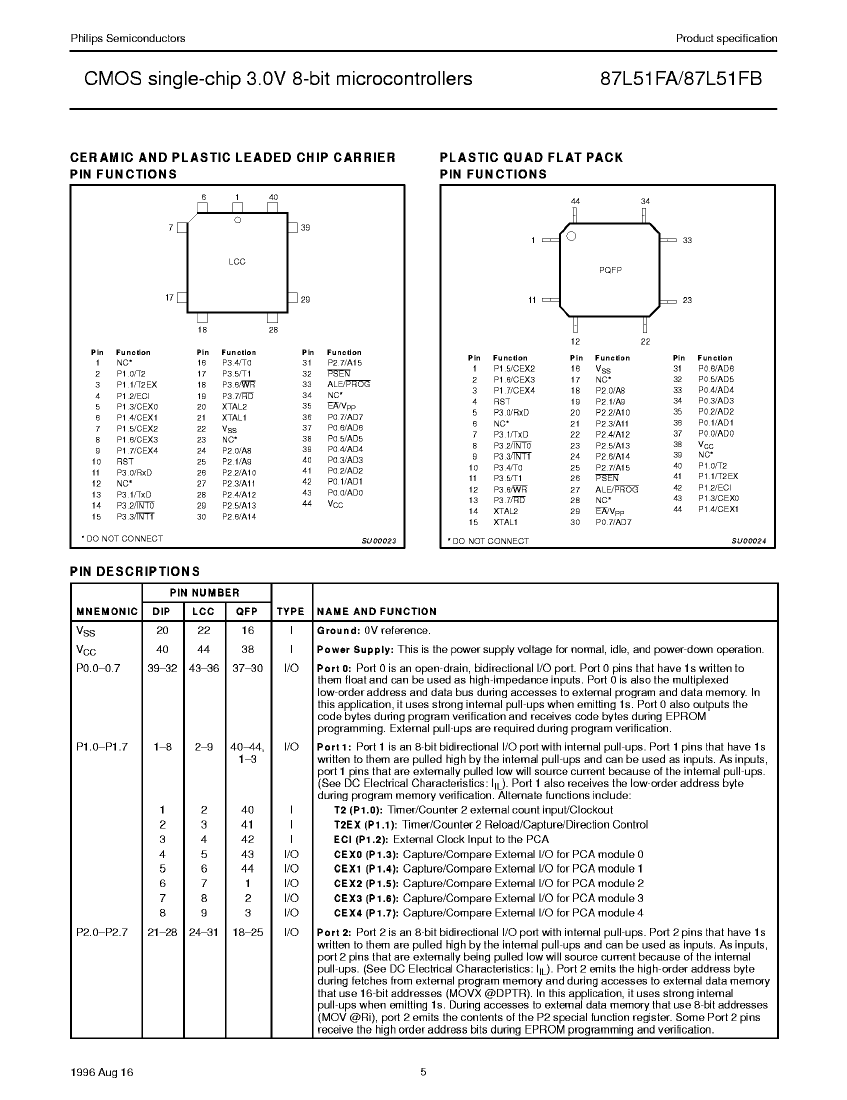

Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
