Surge arrester
3-electrode arrester
B88069X8810C203
T20-A250X
1)
2)
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
3)
Test according to ITU-T Rec. K.12
4)
Tip or ring electrode to center electrode
5)
Total current through center electrode, half value through
tip respectively ring electrode.
6)
Total current through center electrode, tip to ring shorted
Terms in accordance with ITU-T Rec. K.12 and DIN 57845/VDE0845

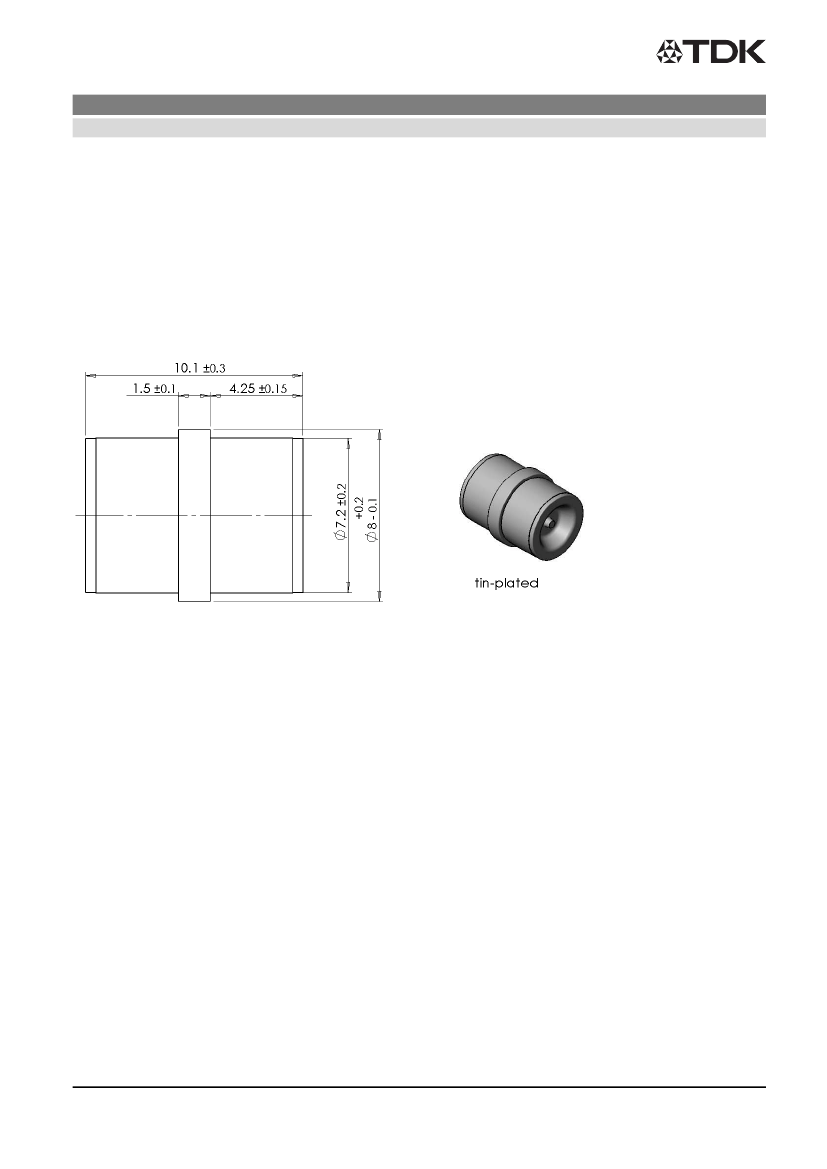

Dimensional drawing in mm
Ordering code and packing advice
B88069X8810C203 = 2000 pcs in container
Cautions and warnings
Surge arresters must not be operated directly in power supply networks.
Surge arresters may become hot in case of longer periods of current stress (danger of burning).
Surge arresters may be used only within their specified values. In case of overload, the head
contacts may fail or the component may be destroyed.
Damaged surge arresters must not be re-used.
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 4
Issue 06 / 2010-11-19
