3.3V Surface Mount 5x7mm
Stratum 3 HCMOS TCXO
T501G
Features:
TCXO
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
The Connor-Winfield T501G is a 5x7mm
Surface Mount, Temperature Compensated
Crystal Oscillator (TCXO). Operating at
3.3Vdc, the T501G will maintain ±4.6ppm
frequency tolerance over 20 years. The
T501G is offered for applications where small
size and Stratum 3 performance are required.
3.3V Operation
Low Jitter <1 pS RMS
Overall Frequency Tolerance: ±4.6ppm over 20 Years
Hold Over Stability: 0.28ppm
Temperature Range: 0 to 70°C
Tri-State Enable / Disable
Surface Mount Package
Tape and Reel Packaging
RoHS Compliant
Nominal
-
-
-
Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage (Vcc)
Enable / Disable Voltage
Minimum
-55
-0.5
-0.5
Maximum
125
7.0
7.0
Units
°C
Vdc
Vdc
Notes
Operating Specifications
Parameter
Frequency Range (Fo)
Supply Voltage (Vcc)
Supply Current (Icc)
Jitter:
(BW=10 Hz to 20 MHz)
(BW=12 kHz to 20 MHz)
SSB Phase Noise at:
10 Hz offset
100 Hz offset
1 kHz offset
≥
10 kHz offset
Minimum
12.8
3.135
-
-
-
-
-
-
-
Nominal
-
3.3
-
-
-
-85
-110
-125
-135
Maximum
20.0
3.465
6
5
1
-
-
-
-
Units
MHz
Vdc
mA
ps RMS
Notes
dBc/Hz
Hold Over Stability
Parameter
Hold Over Stability
±([Fmax-Fmin]/2*Fo)
Temperature Range
Total Hold Over Stability
Minimum
-0.28
0
-0.32
Nominal
-
-
-
Maximum
+0.28
70
+0.32
Units
ppm
°C
ppm
Notes
1
Free Run Accuracy
Parameter
Total Frequency Tolerance
Temperature Range
Minimum
-4.6
0
Nominal
-
-
Maximum
+4.6
70
Units
ppm
°C
Notes
2
Input Characteristics
Parameter
Enable Voltage (High)
or open circuit (Vih)
Disable Voltage (Low)
Output Tri-stated ((Vil)
Minimum
≥
0.6
-
Nominal
-
-
Maximum
-
≤
0.2
Units
Vdc
Vdc
Notes
3
HCMOS Output Characteristics
Parameter
US Headquarters:
630-851-4722
European Headquarters:
+353-61-472221
Bulletin
Page
Revision
Date
Minimum
-
≥
0.9 *Vcc
-
45
-
Nominal
-
-
-
50
-
Maximum
15
-
≤
0.1 *Vcc
55
9
Units
pf
Vdc
%
nS
Notes
Load
Voltage:
High (Voh)
Low (Vol)
Duty Cycle at 50% of Vcc
Rise / Fall Time 10% to 90%
Tx140
1 of 2
00
25 August 2005
Notes:
1. Inclusive of Hold Over stability, supply voltage change (±5%), aging, 24 hours
2. Inclusive of calibration @ 25°C frequency vs. change in temperature, change in supply voltage
(±5%), load change (±5%), reflow soldering process and 20 years aging.
3. Leave Pad 8 unconnected if enable / disable function is not required. When tri-stated, the output
stage is disabled but the oscillator and compensation circuit are still active (current consumption
≤
1 mA).
Ordering Information
T501G - 20.00 MHz
TCXO
SERIES
CENTER
FREQUENCY
Specifications subject to change without notice. All dimensions in inches. © Copyright 1998 The Connor-Winfield Corporation
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Package Characteristics
Package
Ceramic Surface Mount Package
Environmental Characteristics
Vibration
Shock
Soldering
Solderability:
IEC 60068-2-6 Test Fc Procedure B4, 10-60 Hz 1.5mm displacement, at 98.1 ms-2, 30 minutes
in each mutually perpendicular axes at 1 octave per minute.
IEC 60068-2-27 Test Ea, 980ms-2 acceleration for 6ms duration, 3 shocks in each direction along three mutually perpendicular.
SMD product suitable for Convection Reflow soldering. Peak temperature 260°C Maximum time above 220°C, 60 seconds.
MIL-STD-202, Method 208, Category 3

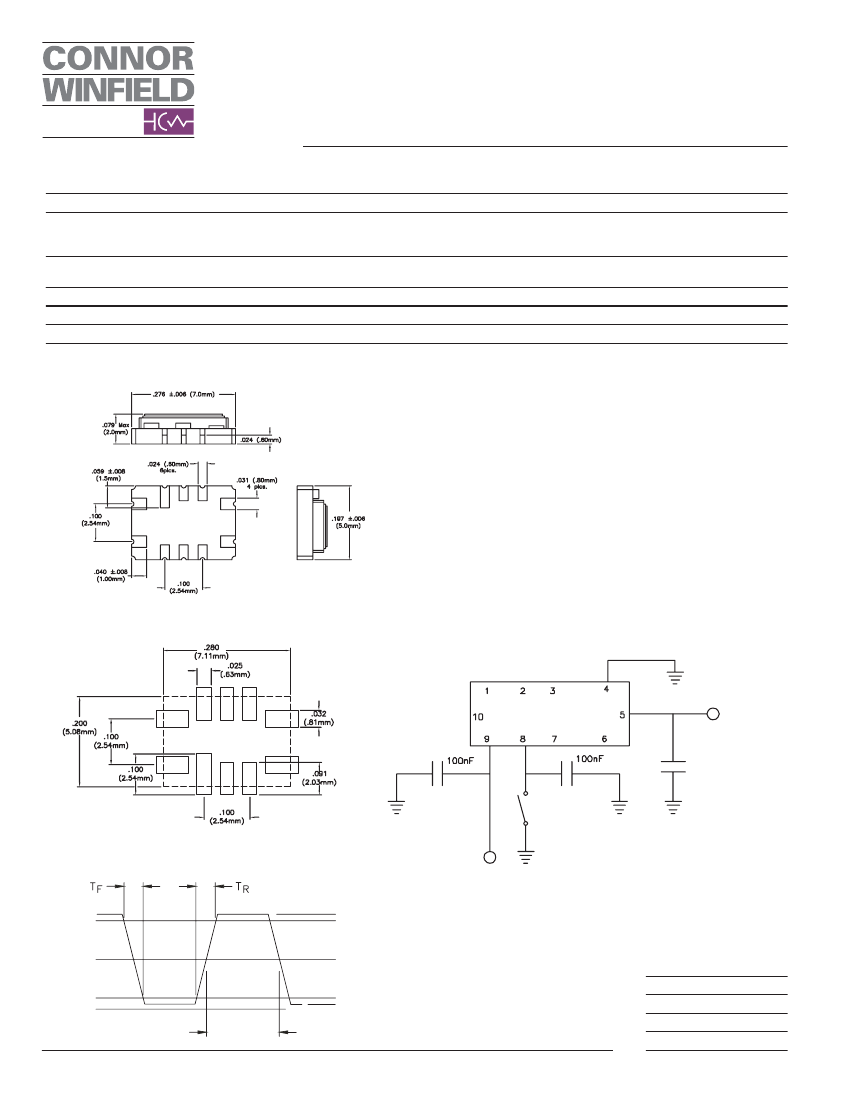

Package Drawing
2
10
1
3
4
Pin
1
2
3
4
5
6
7
8
9
10
Function
Do not connect
N/C
Do not connect
Ground
Output
N/C
N/C
Tri-state Control
Supply, Vcc
Do not connect, Or connect to Ground
8
9
7
6
5
Dimensional Tolerance: ±005 (.127mm)
Suggested Pad Layout
Test Circuit
OUTPUT
C LOAD
TRI-STATE
CONTROL
Output Waveform
"1" LEVEL
V SUPPLY
90%
50%
Bulletin
10%
"0" LEVEL
Page
Revision
SYMMETRY
Specifications subject to change without notice. All dimensions in inches. © Copyright 1998 The Connor-Winfield Corporation
Date
Tx140
2 of 2
00
25 August 2005
