Description
Body
Socket
Insulation
O-Ring
Crimp ring
Washer
Nut
Heat Shrink
Material
Brass
Brass
PTFE
Si Rubber
Brass
Brass
Brass
Polyolefin
Finish
Nickel
Gold
N/A
Rubber
Nickel
Nickel
Nickel
Black
0.098
[2.50]
0.138
[3.50]
0.177
[4.50]
REVISIONS
REV
DESCRIPTION
Updated dimensions; Added new title block
Updated socket look and dim.; Updated crimp ring dim.
DATE
10-JUL-12
29-OCT-12
APPV
SAH
SAH
RG-174 Cable
B
C
RECOMMENDED CABLE STRIPPING DIMENSIONS
Ø0.197
[5.00]
1/4-36UNS-2A
THREADS
FLAT 0.228
[5.80]
Ø0.236
[6.00]
H0.433
[11.00]
Ø0.102
[2.60]
PIN CHUCK
Ø0.020
0.2x2x2mm GROOVE [0.50]
0.310
[7.87]
SOCKET
Ø0.024 Ø0.049
[0.60]
[1.24]
0.787
[20.00]
HEAT SHRINK
Ø0.154
[3.90]
0.197
(5.00)
0.417
[10.60]
0.083
[2.10]
0.748
[19.00]
SIDE VIEW
0.055
[1.40]
O-RING
0.065
[1.65]
NUT
0.248
[6.30]
Ø0.236
(6.00)
Ø0.358
[9.10]
1/4-36UNS-2B
THREADS
H0.315
[8.00]
Ø0.402
[10.20]
0.355
[9.02]
CRIMP RING
0.234
[6.00]
0.020
[0.50]
Ø0.256
[6.50]
WASHER
CONSMA014 ASSEMBLY INSTRUCTIONS
1. Strip the cable to recommended dimensions.
2. Slip heat shrink and crimp ring onto stripped cable.
3. Insert o-ring into groove in the nut on body.
4. Solder the socket to the center conductor.
5. Insert the socket, center conductor, and insulation into the body.
6. Wrap the braid around the tail of the body and crimp the ring with
0.128" hex crimp tool (or one labeled for use with RG-174 cable)
.
7. Use heat shrink to cover crimp.
8. Use the nut and washer to secure the connector to a case.
(2.50mm maximum wall thickness)
MATERIAL:
THAT IS THE SOLE PROPERTY OF LINX TECHNOLOGIES, AND SHALL BE
TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS
DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE
EXPRESS WRITTEN PERMISSION OF LINX TECHNOLOGIES OR ITS
DESIGNATED AGENTS.
NOTES: (UNLESS OTHERWISE SPECIFIED)
1. ALL DIMENSIONS ARE IN INCHES [mm]. 3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE.
2. DIMENSIONS APPLY AFTER FINISHING. 4. SAFETY BREAK ALL SHARP CORNERS AND EDGES .02 MAXIMUM.
:
THIS DRAWING CONTAINS PROPRIETARY INFORMATION
159 ORT LANE
RECOMMENDED
MOUNTING HOLE
TITLE:
MERLIN, OR 97532

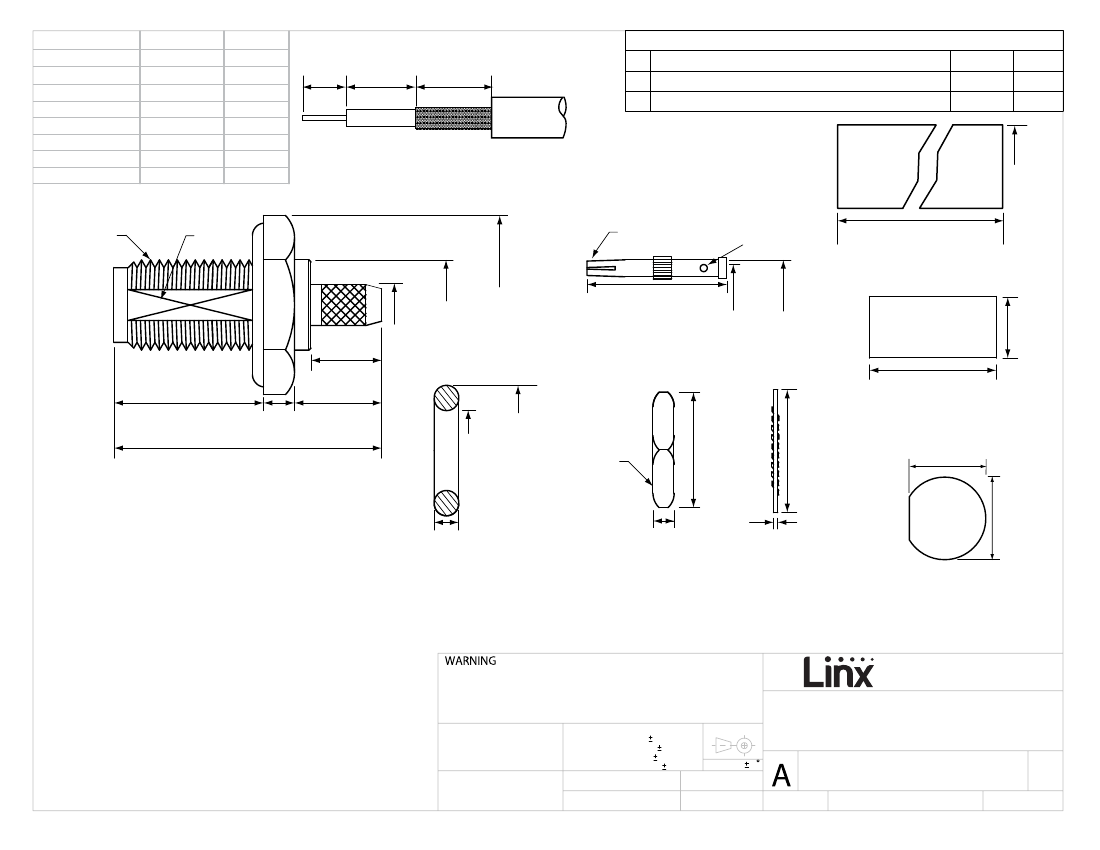

SMA FEMALE BULKHEAD MOUNT CABLE
FINISH:
PROJECTION:
TOLERANCES:
.020 [0.50]-.200 [5.00]= .008 [0.20]
.200 [5.00]-1.200 [30.00]= .016 [0.40]
1.20 [30.0]-4.75 [120.0]= .024 [0.60]
4.75 [120.0]-12.40 [315.0]= .040 [1.0]
ANGLES: 1
END CRIMP WITH O-RING FOR RG174 CABLE
SIZE
DWG. NO.
REV
DRAWN: B.MURPHY DT:
10-JUL-12
ENGR: S.HOGAN
DT:
10-JUL-12
SCALE: 2:1
CONSMA014
DO NOT SCALE DRAWING
C
SHEET 1 OF 1
LDCFDLT_B
