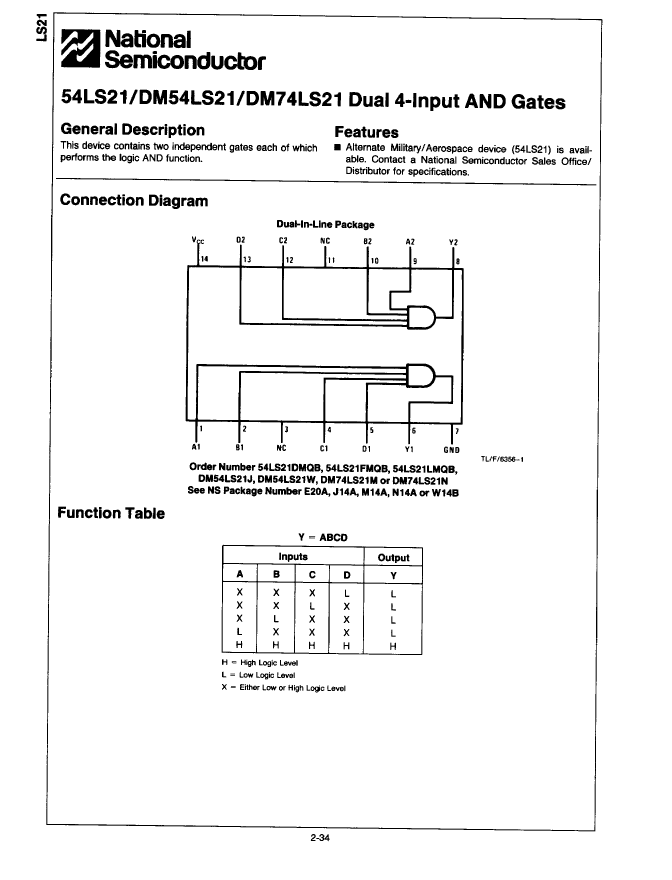

TTDM54LS21J Overview

AND Gate, TTL, CDIP14

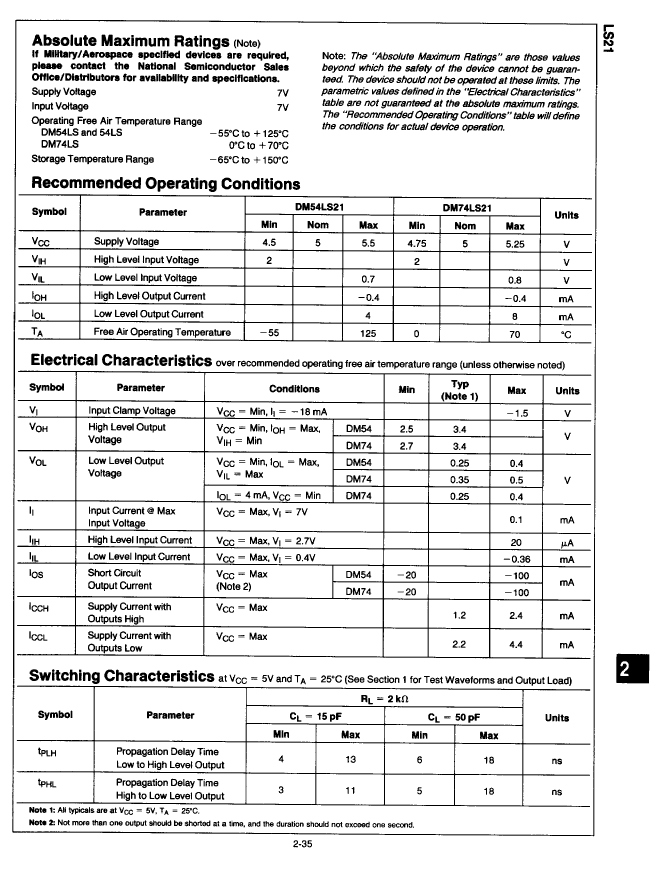

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Twilight Technology Inc.
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.004 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	4.4 mA
Prop。Delay @ Nom-Sup	18 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
