CONREVSMA015 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> CONREVSMA015

CONREVSMA015: DescriptionRF connectors / coaxial connectors rpsma fml blkhd fmnt crimp, O-ring, rg174; CategoryThe connector; File Size203KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

CONREVSMA015 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CONREVSMA015	-	-	View	Buy Now

CONREVSMA015 Overview

RF connectors / coaxial connectors rpsma fml blkhd fmnt crimp, O-ring, rg174

CONREVSMA015 Parametric

Parameter Name	Attribute value
Manufacture	Linx Technologies
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	Connectors
RF Series	SMA
Gende	Jack
Polarity	Reverse
Impedance	50 Ohms
Body Finish	Nickel
Contact Material	Beryllium Coppe
Contact Plating	Gold
Termination Style	Solde
Orientati	Straigh
Cable Type	RG-174
Packaging	Bulk
Factory Pack Quantity	100

Preview

Download Datasheet

View All

Description

Body

Insulation

Crimp Ring

O Ring

Nut

Washer

Material

Brass

BE CU

PTFE

Brass

SI Rubber

Brass

Finish

Nickel

Gold

N/A

Nickel

Rubber

Nickel

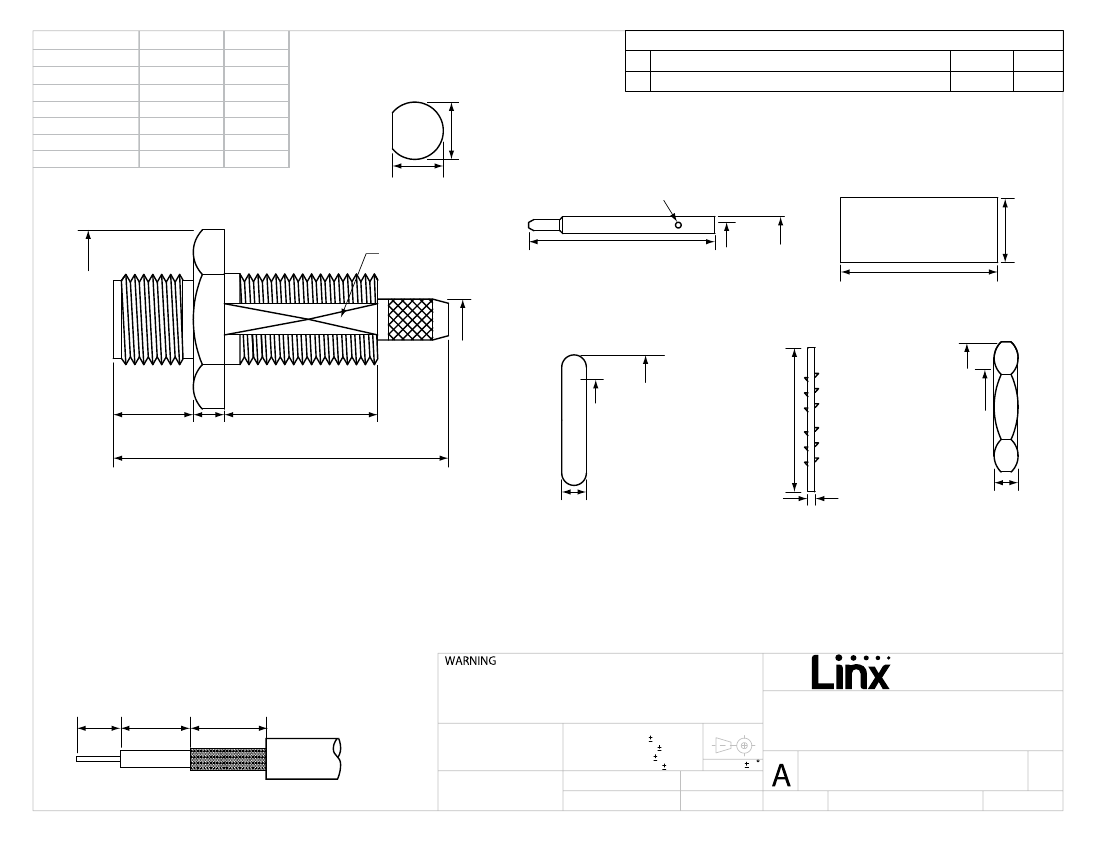

SIDE VIEW

REVISIONS

RECOMMENDED

MOUNTING HOLE

Ø0.256

(6.50)

REV

DESCRIPTION

Updated footprint and dimensions; Added new title block

DATE

11-JUL-12

APPV

SAH

0.236

(6.00)

FLAT 0.228

(5.80)

Ø0.020

(0.50)

Ø0.024

(0.60)

Ø0.049

(1.24)

CRIMP RING

Ø0.154

(3.90)

0.374

(9.50)

H0.433

(11.00)

1/4-36UNS-2A

THREADS

1/4-36UNS-2A

THREADS

0.673

(17.10)

Ø0.102

(2.60)

O-RING

Ø0.358

(9.10)

WASHER

H0.315

(8.00)

Ø0.402

(10.20)

1/4-36UNS-2B

THREADS

NUT

Ø0.236

(6.00)

0.228

(5.80)

0.083

(2.10)

0.472

(12.00)

0.980

(24.90)

0.055

(1.40)

0.020

(0.50)

0.065

(1.65)

CONREVSMA015 ASSEMBLY INSTRUCTIONS

Solder the pin to the center conductor.

Insert the pin, center conductor, and insulation into the body.

Wrap the braid around the tail of the body and crimp the ring with a

0.137" hex crimp tool (or one labeled for use with RG-174 cable).

NOTES: (UNLESS OTHERWISE SPECIFIED)

1. ALL DIMENSIONS ARE IN INCHES [mm].

2. DIMENSIONS APPLY AFTER FINISHING.

3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE.

4. SAFETY BREAK ALL SHARP CORNERS AND EDGES .02 MAXIMUM.

THIS DRAWING CONTAINS PROPRIETARY INFORMATION

THAT IS THE SOLE PROPERTY OF LINX TECHNOLOGIES, AND SHALL BE

TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS

DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE

EXPRESS WRITTEN PERMISSION OF LINX TECHNOLOGIES OR ITS

DESIGNATED AGENTS.

RECOMMENDED CABLE STRIPPING DIMENSIONS

0.098

(2.50)

0.134

(3.40)

0.177

(4.50)

TITLE:

159 ORT LANE

MERLIN, OR 97532

RG-174 Cable

MATERIAL:

FINISH:

PROJECTION:

TOLERANCES:

.020 [0.50]-.200 [5.00]= .008 [0.20]

.200 [5.00]-1.200 [30.00]= .016 [0.40]

1.20 [30.0]-4.75 [120.0]= .024 [0.60]

4.75 [120.0]-12.40 [315.0]= .040 [1.0]

ANGLES: 1

RP-SMA FEMALE BULKHEAD MOUNT CABLE

END CRIMP WITH O-RING FOR RG174 CABLE

SIZE

DWG. NO.

REV

DRAWN: B.MURPHY DT:

11-JUL-12

ENGR: S.HOGAN

DT:

11-JUL-12

SCALE: 2:1

CONREVSMA015

DO NOT SCALE DRAWING

LDCFDLT_A

SHEET 1 OF 1
