USB1035-15-P-0-W-B: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size295KB，2 Pages; ManufacturerGlobal Connector Technology

Download Datasheet Parametric View All

USB1035-15-P-0-W-B Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,

USB1035-15-P-0-W-B Parametric

Parameter Name	Attribute value
Maker	Global Connector Technology
Reach Compliance Code	compliant
Board mount options	MOUNTING FLANGE
body width	0.603 inch
subject depth	0.669 inch
body length	0.591 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
Contact resistance	30 mΩ
Contact style	USB, SER B SQ
Dielectric withstand voltage	500VAC V
Durability	1500 Cycles
Insulation resistance	1000000000 Ω
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.6162 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.8 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

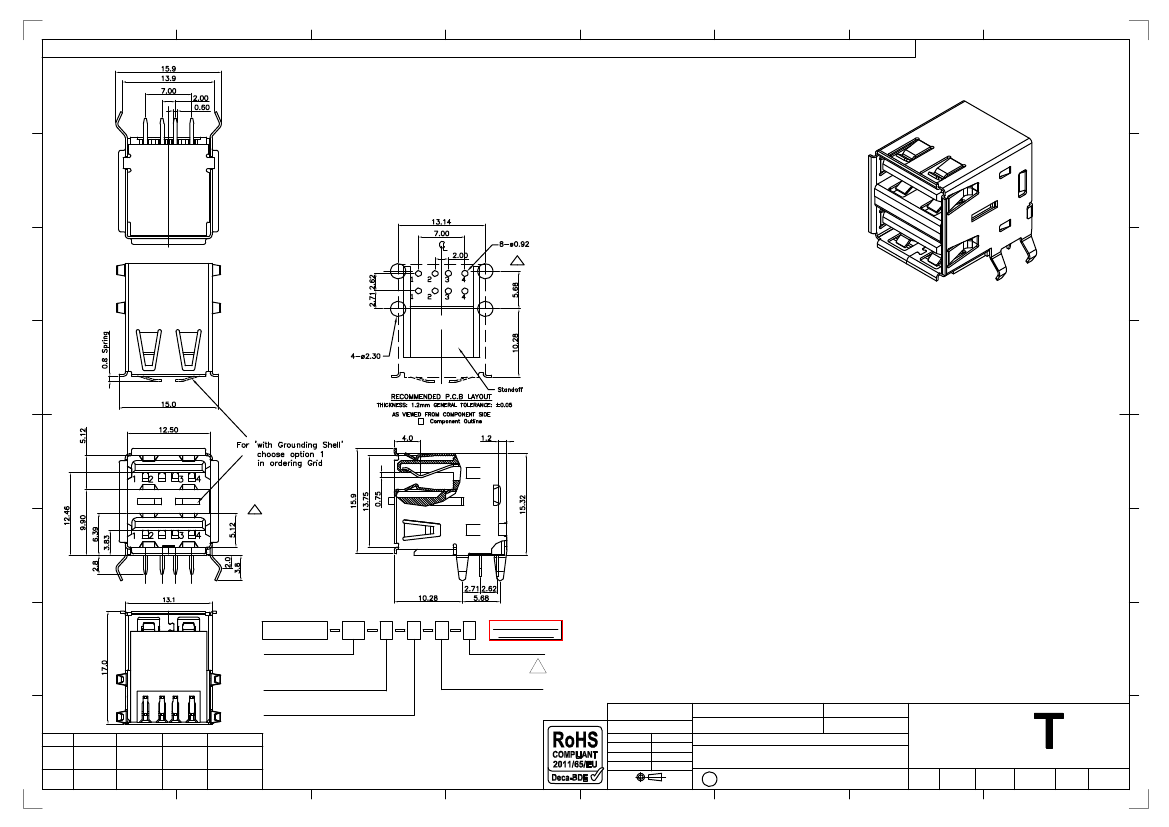

Global Connector Technology Ltd. - USB1035: USB Dual Receptacle, Type A, 8 Pin, Through Hole, Horizontal, Top Mount, With Kinked Shell Stakes

A

B

C

A

B

A

B

A

B

A

B

C

D

Specifications

规格

:

Materials & Plating

物料与电镀

:

Plastic Housing

塑胶外壳

: Thermoplastic, PBT, Glass Fibre Filled, UL94V-0

热塑性塑料

, PBT;

玻纤填充，

UL94V-

0

Contact Terminal

接触端子

: Brass

黄铜

Metallic Shell

金属外壳

: SPCC

Finish

表面处理

:

Underplating

底层电镀

: 50µ" Nickel 50µ"

镍

Plating

电镀

:

Contact Area: Gold Flash or 15µ" Gold

闪金或

15µ"

金

Solder Tails

焊接末端

: 50µ" Tin 50µ"

锡

Metallic Shell

金属外壳

: Nickel

镍

Electrical

电气规格

:

Voltage Rating

电压额定值

: 30VAC

Current Rating

电流额定值

: 1.8A

Operating Temperature

工½温度

: -40°C to +85°C

Contact Resistance

接触电阻值

: 30m



Max.

Insulating Resistance

绝缘电阻值

: 1000M



Min

Dielectric Withstand Voltage

耐电压

: 500V AC

Mechanical

机械性规格

:

Mating Force

插入力

: 35N (3.57Kgf) Max.

Unmating Force

拨出力

: 10N (1.02Kgf) Min.

Durability

耐久性

: 1,500 Cycles 1500

次插拨

D

E

A

E

B

F

Ordering Grid

USB1035

G

XX

P

X

B

REQUEST SAMPLES

AND QUOTATION

Contact Plating

GF = Gold Flash

(Standard)

15 = 15µ" Gold

Insulator Material

P = PBT

Grounding Shell

0 = Without Grounding

(Standard)

1 = With Grounding

SA

DRAWING

RELEASE

A

14/02/11

CM

NUMBER

B

19/08/11

AJO

PACKING

C

30/09/13

AJO

PCN

USB1035-001

D

28/11/13

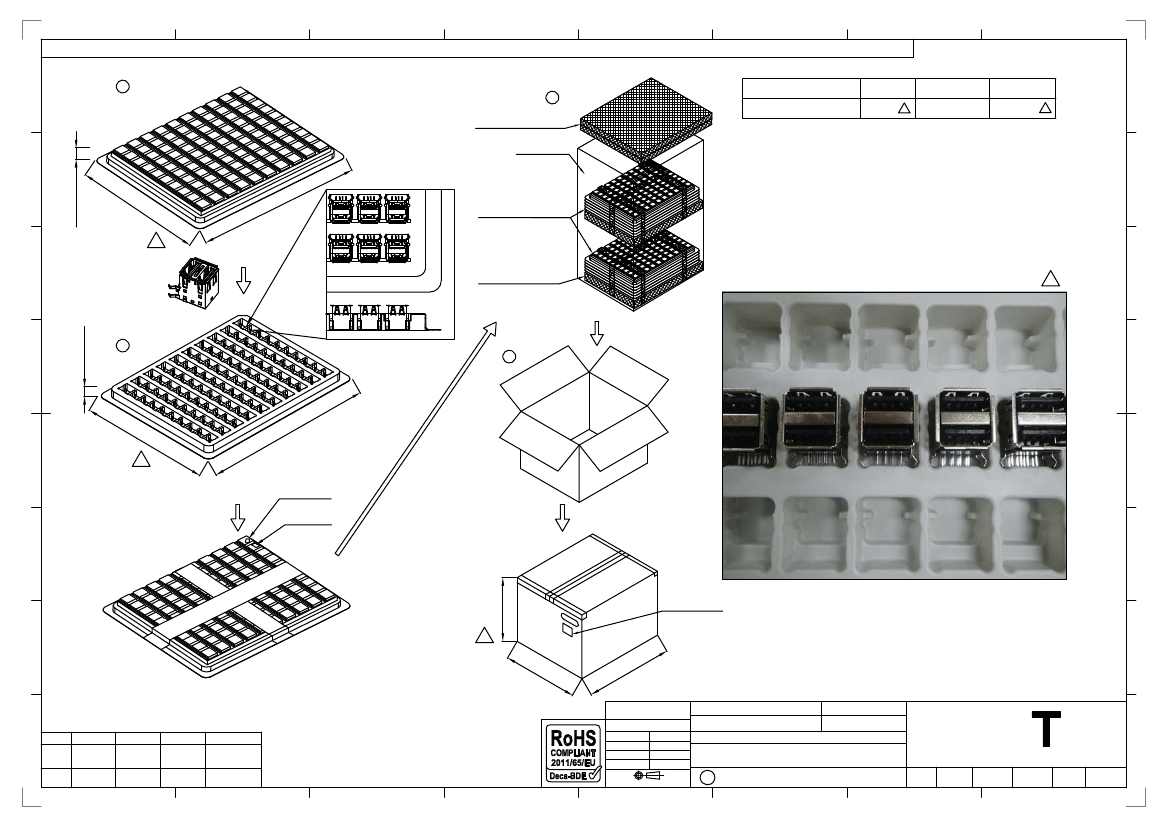

Packing Options

B = Tray

(100 per tray)

G

D

Insulator Colour

B = Black

(Standard)

W = White

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.X ± 0.35

X.XX ± 0.25

X.° ±3.0°

X.X° ±1.5°

USB1035

Description:-

14 FEB 11

H

By

DETAIL

REV

DATE

USB DUAL REC, TYPE A, 8 PIN, THROUGH HOLE,

RA, TOP MOUNT, WITH KINKED SHELL STAKES

GC

Scale

NTS

H

www.gct.co

Material

See Note

Third Angle Projection

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

D

Drawn by

SA

E & OE

Sheet No.

1/2

1

2

3

4

5

6

7

8
