EMC Components
EMC Filters for AC Power Supply
Cased (Mid-Size)
FEATURES
• The ZAG-11S series are EMC filters designed to prevent malfunc-
tions in microcomputers. They employ advanced amorphous mag-
netic materials in the common mode choke coil to achieve superior
performance characteristics.
• They provide substantial attenuation of high-voltage pulses in
power supply lines, exhibiting more than 20dB attenuation for a
2kV, 1µs pulse.
• Leakage current is maintained at less than 0.75mA.
• These filters are highly reliable and provide stable attenuation
performance even in harsh environments, where the filters may
be subjected to humidity, vibration, and shock.
• Efficient manufacturing makes these filters highly cost-effective.
APPLICATIONS
Computers and other terminal devices, office automation equip-
ment, general control devices, and other industrial devices.

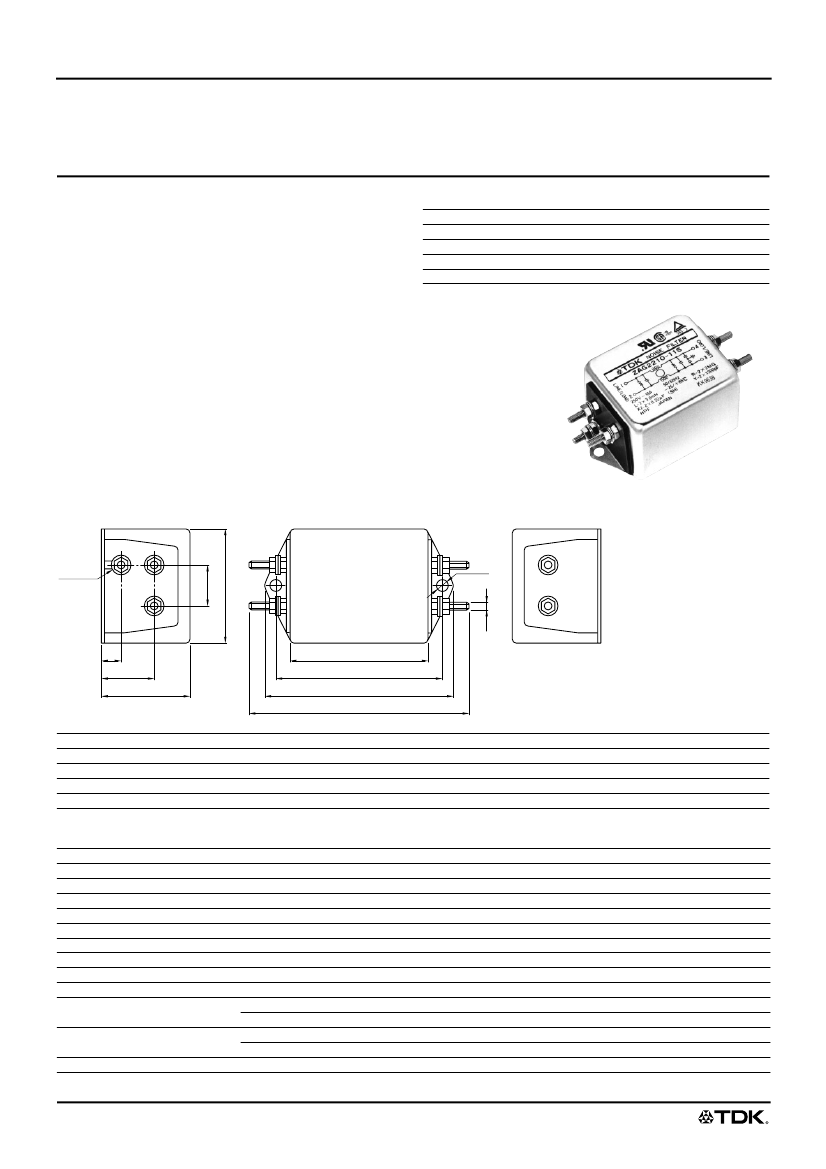

SHAPES AND DIMENSIONS
ZAG-11S Series
SAFETY STANDARDS
Part No.
ZAG2206-11S
ZAG2210-11S
ZAG2220-11S
ZAG2230-11S
UL
E62388
E62388
E62388
E62388
CSA
LR76849C
LR76849C
LR76849C
LR76849C
TÜV
R30107
R30107
R30107
R30107
Ground
terminal
A
I
1
4
øH
2
3
øG
K
J
C
B
E
D
F
Part No.
A
ZAG2206-11S
50.8
ZAG2210-11S
50.8
ZAG2220-11S
50.8
ZAG2230-11S
56
• Case: metal, terminal: stud
B
62
62
62
90
C
40
40
40
50
D
85
85
85
111
E
75
75
75
103.2
F
95
95
95
138
øG
M4
M4
M4
M5
øH
4.8
4.8
4.8
4.8
I
18
18
18
21
Dimensions in mm
J
K
25
7.5
25
7.5
25
7.5
31.7
8.2
ELECTRICAL CHARACTERISTICS
Part No.
Rated voltage Eac(V)
Rated current(A)
Test voltage Eac(V)[Between terminal and case]
Insulation resistance(MΩ)[DC. 500V, 1min/between terminal and case]
Leakage current(mA)[250V • 60Hz]
DC resistance(mΩ)
Operating temperature range(°C)[Including self-temperature rise]
With derating over(°C)
Temperature rise(°C)
Differential mode at 40dB
Attenuation frequency range
(MHz)[+5 to +35°C]
Common-mode at 30dB
Differential mode at 20dB
Pulse attenuation characteristics
Input pulse voltage(kV)
∗
Common mode at 20dB
Weight(g)
∗
ZAG2206-11S
250
6
1500
100min.
0.75max.
100max.
–25 to +85
55
30max.
0.5 to 10
0.3 to 20
1
2
270
ZAG2210-11S
250
10
1500
100min.
0.75max.
50max.
–25 to +85
55
30max.
0.5 to 10
0.5 to 20
1
2
300
ZAG2220-11S
250
20
1500
100min.
0.75max.
20max.
–25 to +85
55
30max.
1 to 10
1 to 10
1
1.2
320
ZAG2230-11S
250
30
1500
100min.
0.75max.
9max.
–25 to +85
55
30max.
1 to 10
2 to 30
1
0.8
480
Input pulse width : 1µs
• All specifications are subject to change without notice.
(2/2)
001-01 / 20030823 / e9131_zag_11s.fm
EMC Components
EMC Filters for AC Power Supply
Cased (Mid-Size)

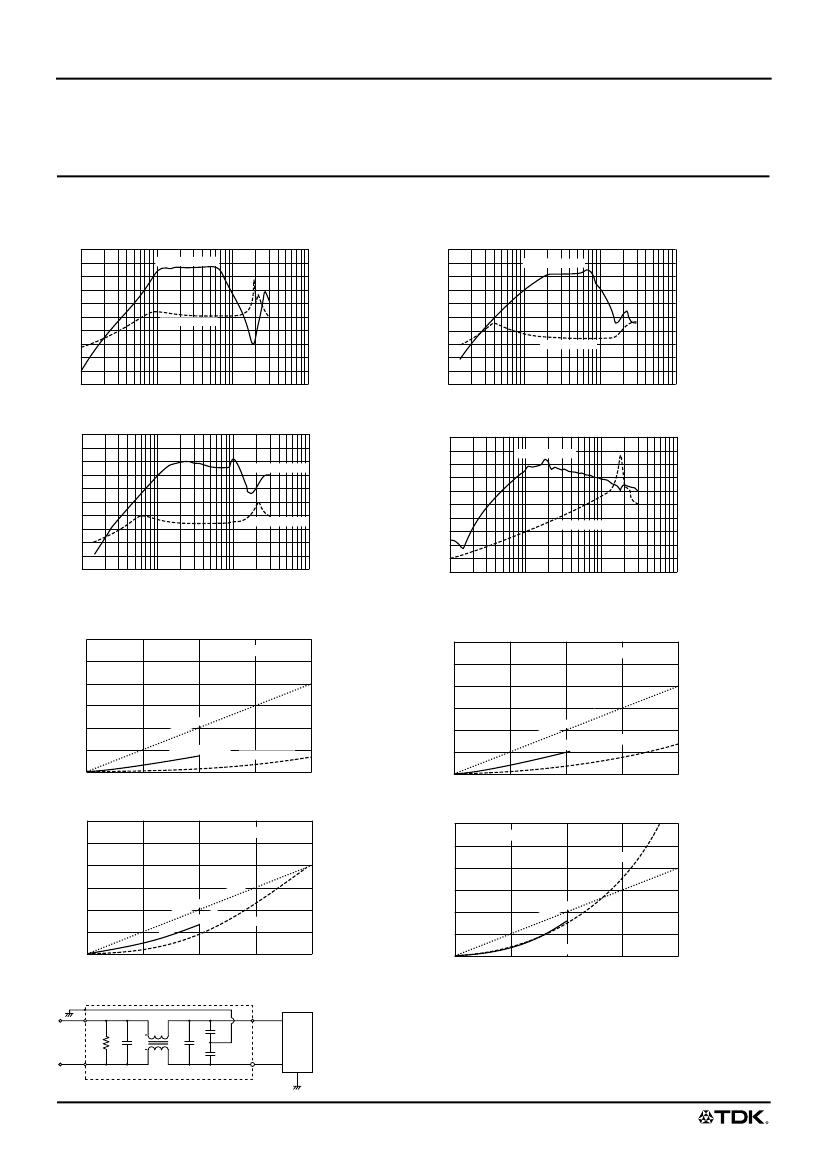

TYPICAL ELECTRICAL CHARACTERISTICS
ATTENUATION vs. FREQUENCY CHARACTERISTICS
ZAG2206-11S
100
Differential mode
80
ZAG-11S Series
ZAG2210-11S
100
Differential mode
80
Attenuation (dB)
60
Common mode
40
20
0
Attenuation (dB)
60
40
Common mode
20
0
0.1
0.3
1
3
10
Frequency (MHz)
30
100
0.1
0.3
1
3
10
Frequency (MHz)
30
100
ZAG2220-11S
100
ZAG2230-11S
100
Differential mode
80
Differential mode
80
Attenuation (dB)
60
Attenuation (dB)
60
40
20
0
Common mode
40
20
0
Common mode
0.1
0.3
1
3
10
Frequency (MHz)
30
100
0.1
0.3
1
3
10
Frequency (MHz)
30
100
PULSE ATTENUATION CHARACTERISTICS
ZAG2206-11S
300
Pulse width: 1µs
250
ZAG2210-11S
300
Pulse width: 1µs
250
Output voltage (V)
200
150
100
50
0
Output voltage (V)
200
150
100
50
tion
nua
atte
B
20d
line
Differential mode
tt
Ba
20d
Differential mode
n
atio
enu
line
Common mode
Common mode
1500
2000
0
500
1000
Input voltage (V)
0
0
500
1000
Input voltage (V)
1500
2000
ZAG2220-11S
300
Pulse width: 1µs
250
ZAG2230-11S
300
Pulse width: 1µs
250
Common mode
200
150
100
Output voltage (V)
200
150
100
50
0
B
20d
e
mod
tial
eren
Diff
0
500
nua
atte
tion
line
Output voltage (V)
Common mode
20d
50
B
n
atte
uat
ion
line
1000
Input voltage (V)
1500
2000
0
Differential mode
0
500
1000
Input voltage(V)
1500
2000
CIRCUIT DIAGRAM
1
2
R: Bleeder resistor
Case GND
3
• All specifications are subject to change without notice.
Protective load
4
R
