82-6410: DescriptionRF connectors / coaxial connectors M W/SQ panel sealed; CategoryThe connector; File Size98KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

82-6410 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82-6410	-	-	View	Buy Now

82-6410 Overview

RF connectors / coaxial connectors M W/SQ panel sealed

82-6410 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	Connectors
RF Series	N
Gende	Plug
Polarity	Standard
Impedance	50 Ohms
Maximum Frequency	11 GHz
Body Material	Brass
Body Finish	Ti
Contact Material	Brass
Contact Plating	Gold
Contact Terminati	Solde
Mounting Type	4-Hole Flange
Termination Style	Round Pos
Coupling Mechanism	Threaded
Orientati	Straigh
Mating Cycles	500
Operating Temperature Range	- 65 C to + 165 C

Preview

Download Datasheet

View All

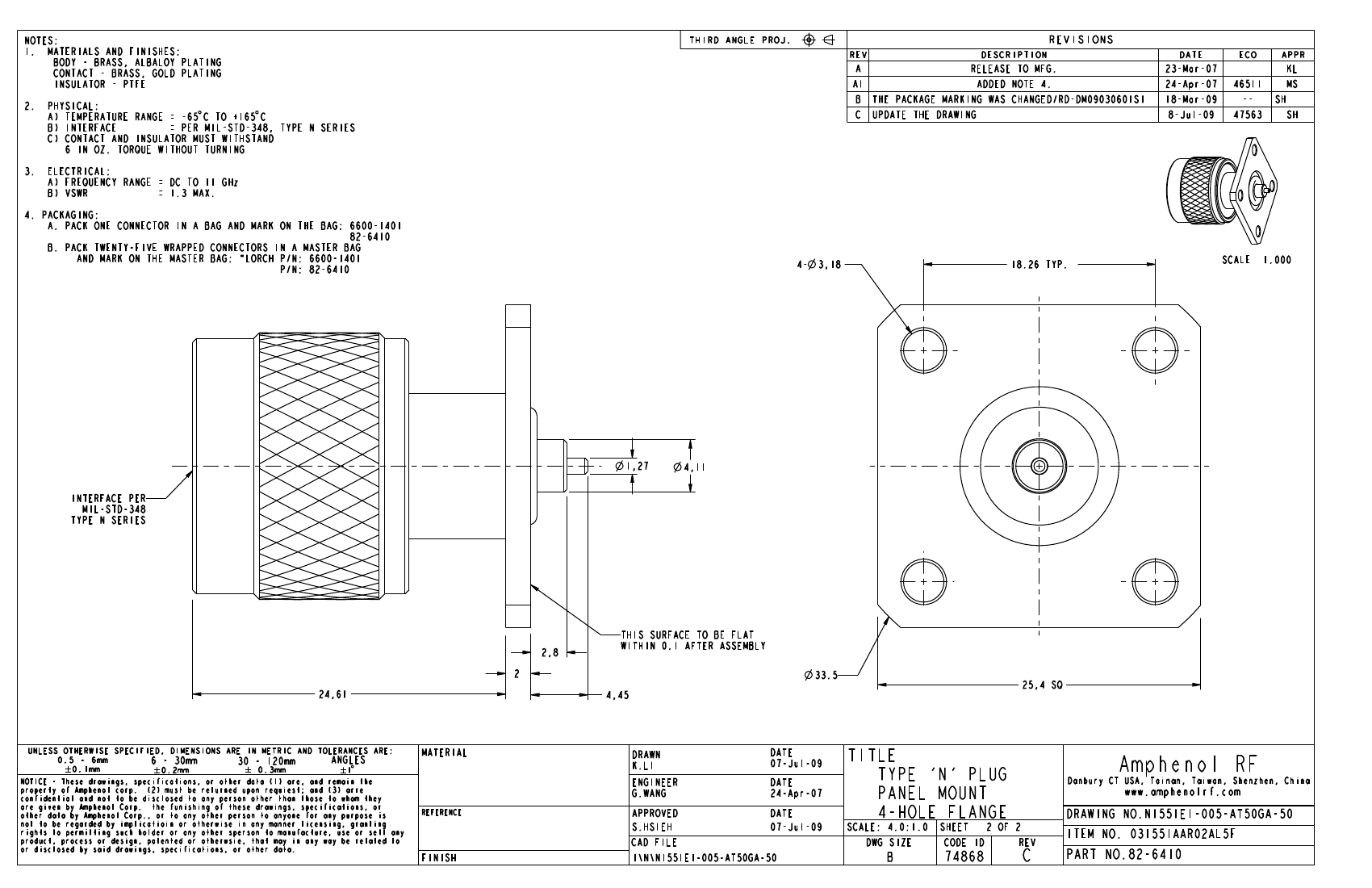

NOTES:

1. MATERIALS AND FINISHES:

BODY - BRASS, ALBALOY PLATING

CONTACT - BRASS, GOLD PLATING

INSULATOR - PTFE

PHYSICAL:

A) TEMPERATURE RANGE = -65 C TO +165 C

B) INTERFACE

= PER MIL-STD-348, TYPE N SERIES

C) CONTACT AND INSULATOR MUST WITHSTAND

6 IN OZ. TORQUE WITHOUT TURNING

ELECTRICAL:

A) FREQUENCY RANGE = DC TO 11 GHz

B) VSWR

= 1.3 MAX.

THIRD ANGLE PROJ.

REV

DESCRIPTION

REVISIONS

DATE

ECO

APPR

RELEASE TO MFG.

ADDED NOTE 4.

THE PACKAGE MARKING WAS CHANGED/RD-DM09030601S1

UPDATE THE DRAWING

23-Mar-07

24-Apr-07

18-Mar-09

8-Jul-09

46511

47563

4. PACKAGING:

A. PACK ONE CONNECTOR IN A BAG AND MARK ON THE BAG: 6600-1401

82-6410

B. PACK TWENTY-FIVE WRAPPED CONNECTORS IN A MASTER BAG

AND MARK ON THE MASTER BAG: "LORCH P/N: 6600-1401

P/N: 82-6410

3,18

18.26 TYP.

SCALE

1.000

1,27

INTERFACE PER

MIL-STD-348

TYPE N SERIES

4,11

2,8

24,61

THIS SURFACE TO BE FLAT

WITHIN 0.1 AFTER ASSEMBLY

33.5

4,45

25,4 SQ

UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:

0.5 - 6mm

ANGLES

6 - 30mm

30 - 120mm

0.1mm

0.3mm

0.2mm

NOTICE - These drawings, specifications, or other data (1) are, and remain the

property of Amphenol corp. (2) must be returned upon requiest; and (3) arre

confidential and not to be disclosed to any person other than those to whom

they

are given by Amphenol Corp. the funishing of these drawings, specifications,

other data by Amphenol Corp., or to any other person to anyone for any purpose

not to be regarded by implicatioin or otherwise in any manner licensing,

granting

rights to permitting such holder or any other sperson to manufacture, use or

sell any

product, process or design, patented or otherwsie, that may in any way be

related to

or disclosed by said drawings, specifications, or other data.

MATERIAL

DRAWN

K.LI

ENGINEER

G.WANG

DATE

07-Jul-09

DATE

24-Apr-07

DATE

07-Jul-09

REFERENCE

APPROVED

S.HSIEH

CAD FILE

TITLE

TYPE 'N' PLUG

PANEL MOUNT

4-HOLE FLANGE

SCALE: 4.0:1.0

DWG SIZE

SHEET

CODE ID

2 OF 2

REV

Danbury CT USA, Tainan, Taiwan, Shenzhen, China

Amphenol RF

www.amphenolrf.com

DRAWING NO. N1551E1-005-AT50GA-50

ITEM NO. 031551AAR02AL5F

FINISH

I\N\N1551E1-005-AT50GA-50

74868

PART NO. 82-6410
