31-71016

Description
RF connectors / coaxial connectors bnc F/M
CategoryThe connector
File Size60KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

31-71016 Online Shopping

Suppliers Part Number Price MOQ In stock
31-71016 - - View Buy Now

31-71016 Overview

RF connectors / coaxial connectors bnc F/M

31-71016 Parametric

Parameter NameAttribute value
ManufactureAmphenol
Product CategoryRF Connectors / Coaxial Connectors
RoHSYes
ProducConnectors
RF SeriesBNC
GendeJack
PolarityStandard
Impedance75 Ohms
Maximum Frequency4 GHz
Body MaterialBrass
Body StyleStraigh
Body FinishNickel
Contact MaterialBrass
Contact PlatingGold
Contact TerminatiSolde
Mounting TypeBulkhead - Rear Mou
Termination StyleCable - Crim
Coupling MechanismBayone
OrientatiStraigh
Cable TypeRG-179, RG-187, Belden 9221
Insulation Resistance5000 MOhms
Mating Cycles500
Operating Temperature Range- 65 C to + 165 C
Voltage Rating500 V

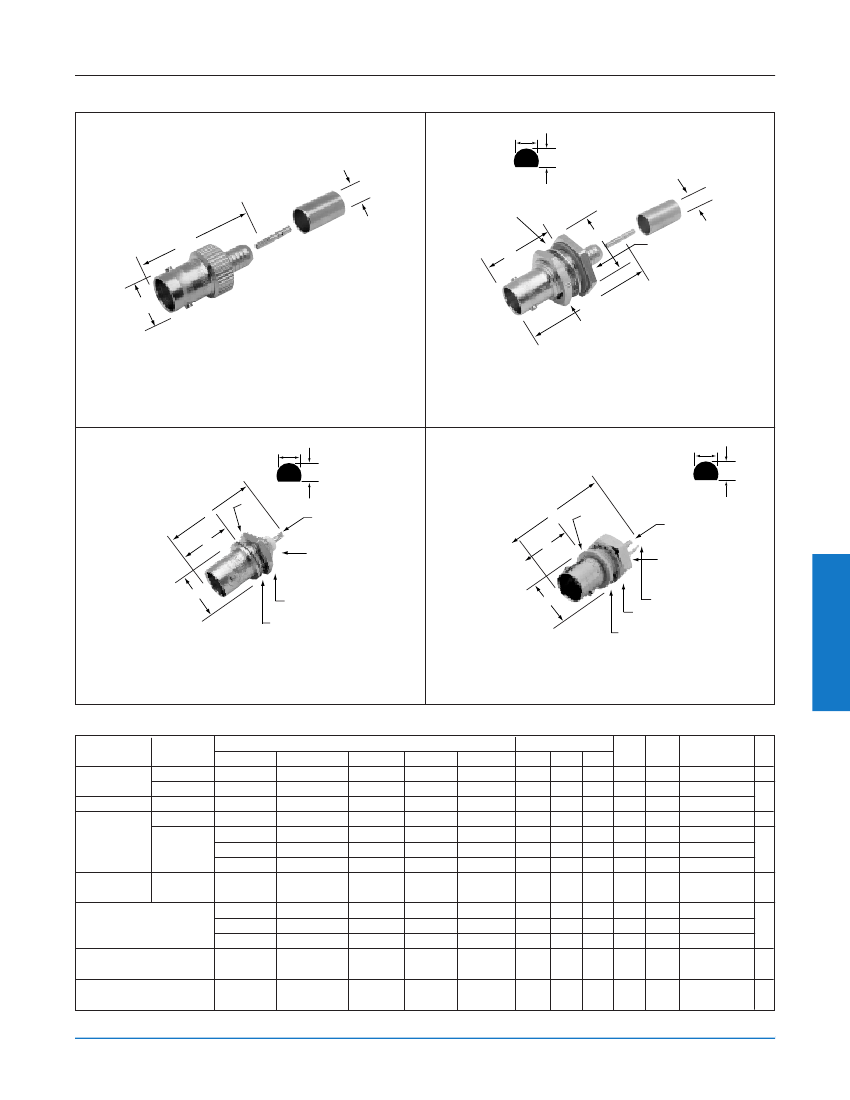

BNC 75 ohm
Jacks & Receptacles
Fig. 1
Fig. 2
.510(13.09)
.475(12.1)
Y
c•
e
max panel
a
I
d
b
Amphenol
®
c•
.687(17.4) across flats
b
a
I
.625(15.9) hex nut
75Ω BNC Crimp Jacks
31-70009
31-71014-RFX
Fig. 3
.390(9.9) dia.
.355(9.2)
U
a
d
e
max.
panel
solder
cup
.340(8.6)
across one flat
75Ω BNC Crimp Bulkhead Jacks
31-70016
31-71011-RFX
31-70016-1000
31-71016
31-71011
31-71016-RFX
Fig. 4
.375(9.5) dia.
.342(8.7)
Z
a
d
e
max.
panel
solder
cup
.342(8.7)
across one flat
BNC
b
.500(12.7)
hex nut
lock washer
b
75Ω BNC Receptacles (J) Front Mount
31-221-75RFX
31-70018
31-71004
ground tab
.500(12.7)
hex nut
lock washer
75Ω BNC Receptacle (J) Isolated from Panel
with Solder Cup & Ground Tab
31-10-75
31-10-75 RFXG2
75Ω BNC JACKS & RECEPTACLES
Cable RG/U
59, Belden
8241, 8263
59, 62, 140, 210
179, 187
Connector
Type
Jack
Bulkh. Jack
Bulkh. Jack
Jack
Bulkh. Jack
Dbl. Br. 179
ATT 19224-L2
a
I
1.18(30.0)
1.41(35.7)
1.38(35.1)
1.37(35.0)
1.48(37.7)
1.41(35.7)
1.43(36.4)
Bulkh. Jack
1.48(37.7)
1.06(27.0)
1.06(27.0)
1.05(26.7)
Bulkhead Receptacle (J)
Frnt Mt, Iso. from Panel
Bulkhead Receptacle (J)
Frnt Mt, Iso. from Panel
1.19(30.2)
1.19(30.2)
Dimensions, inches (millimeters)
b
c
G
d
.510(12.9)
.261(6.6)
.795(20.2)dia
.687(17.5)
.435(11.0)
.687(17.4)hex
.795(20.2)dia
.687(17.4)hex
.687(17.4)hex
.490(12.4)
.490(12.4)
.500(12.7)
.490(12.4)
.490(12.4)
.261(6.6)
.260(6.6)
.106(2.7)
.120(3.0)
.120(3.0)
.106(2.7)
.175(4.4)
.812(20.6)
.710(18.0)
.812(20.6)
.812(20.6)
.710(18.0)
.812(20.6)
.472(12.0)
.472(12.0)
.475(12.1)
.472(12.0)
.472(12.0)
e
.250(6.4)
.138(3.5)
.250(6.4)
.250(6.4)
.138(3.5)
.250(6.4)
.125(3.2)
.250(6.4)
.138(3.5)
.187(4.7)
.187(4.7)
CAI
C31
C32
C32
C32
C31
C32
C32
C31
Notes
Plt.
Ins.
P17
D1
P15
P7
P7
P17
P15
P7
P15
P15
P15
P7
P15
P7
D1
D23
D23
D1
D1
D23
D1
D1
D1
D23
D12
D12
Mtg.
Hole
Y
Y
Y
Y
Y
Y
U
U
U
Z
Z
75Ω
Type
T1
T2
T2
T2
T1
T2
T2
T1
T2
T1
T2
T2
T2
Amphenol
Number
31-70009
31-71011
31-71011-RFX
31-70016
31-71016
31-71016-RFX
31-70016-1000
2
31-71004
31-70018
31-221-75RFX
31-10-75
4
3
2
Fig.
1
2
31-71014-RFX
1
L
Bulkhead Receptacle (J)
Front Mount
L
L
31-10-75-RFXG2
4
I
Includes outer ferrule • accommodates cable diameter
L
Distributor Stocked
Amphenol Corporation Tel: 800-627-7100
www.amphenolrf.com
