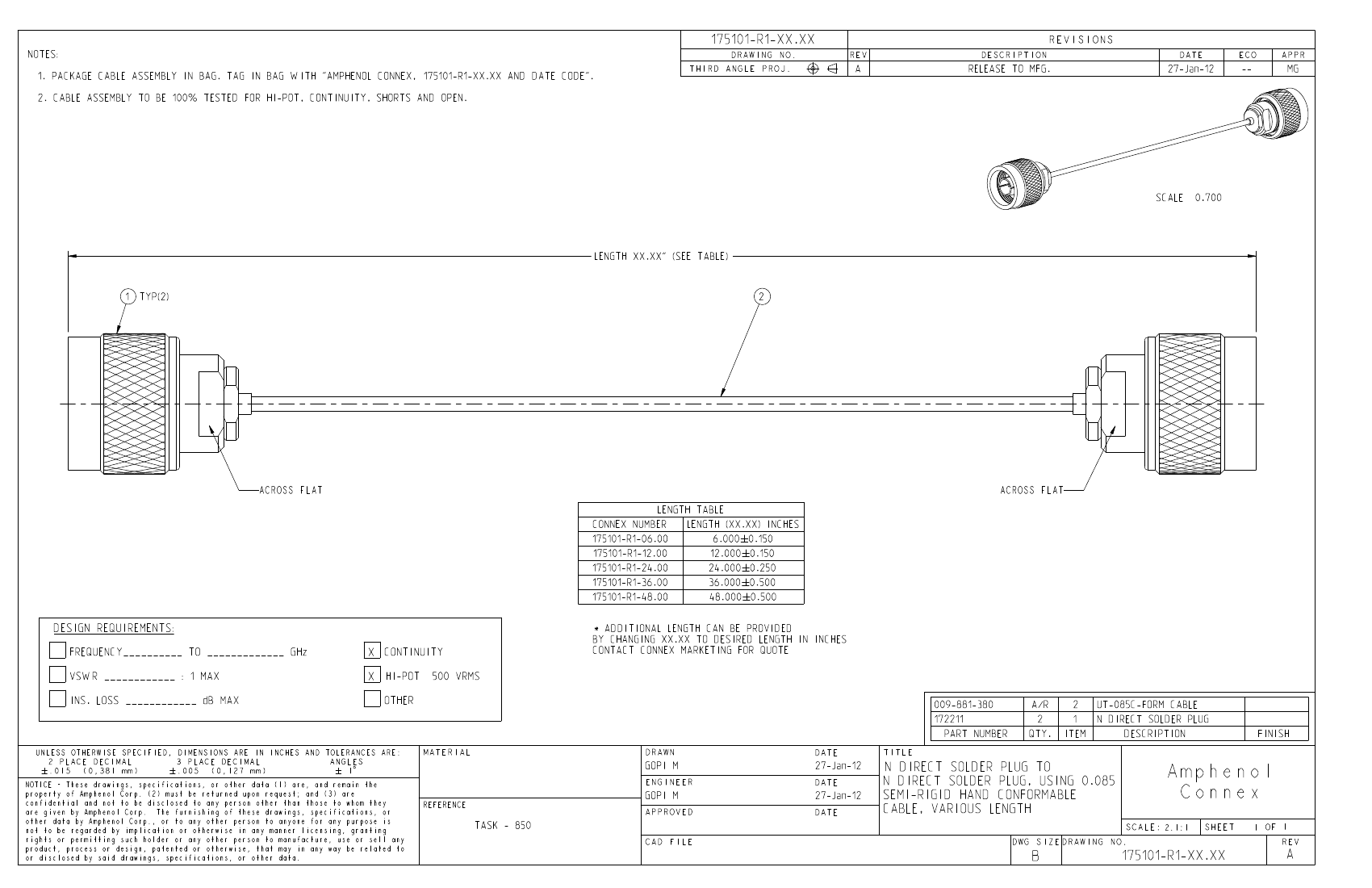

NOTES:
1. PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX, 175101-R1-XX.XX AND DATE CODE".
2. CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT, CONTINUITY, SHORTS AND OPEN.
175101-R1-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
A
RELEASE TO MFG.
DESCRIPTION
27-Jan-12
DATE
ECO
--
APPR
MG
SCALE
0.700
LENGTH XX.XX" (SEE TABLE)
1 TYP(2)
2
ACROSS FLAT
CONNEX NUMBER
LENGTH TABLE
LENGTH (XX.XX) INCHES
12.000 #
0.150
6.000 #
0.150
ACROSS FLAT
175101-R1-06.00
175101-R1-12.00
175101-R1-36.00
175101-R1-48.00
175101-R1-24.00
24.000 #
0.250
36.000 #
0.500
48.000 #
0.500
DESIGN REQUIREMENTS:
FREQUENCY__________ TO _____________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
X
CONTINUITY
X
HI-POT
OTHER
500 VRMS
* ADDITIONAL LENGTH CAN BE PROVIDED
BY CHANGING XX.XX TO DESIRED LENGTH IN INCHES
CONTACT CONNEX MARKETING FOR QUOTE
009-881-380
172211
PART NUMBER
A/R
QTY.
2
2
ITEM
1
UT-085C-FORM CABLE
DESCRIPTION
N DIRECT SOLDER PLUG
FINISH
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015
(0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
GOPI M
27-Jan-12
27-Jan-12
DATE
DATE
DATE
TITLE
ENGINEER
REFERENCE
GOPI M
TASK - 850
APPROVED
CAD FILE
N DIRECT SOLDER PLUG TO
N DIRECT SOLDER PLUG, USING 0.085
SEMI-RIGID HAND CONFORMABLE
CABLE, VARIOUS LENGTH
DWG SIZE DRAWING NO.
Amphenol
Connex
SCALE: 2.1:1
SHEET
1 OF 1
REV
B
175101-R1-XX.XX
A
