BBMINIB GMFB25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> BBMINIB GMFB25

BBMINIB GMFB25: DescriptionRF cable assemblies 1 PC compression mini rgb; CategoryThe connector; File Size214KB，1 Pages; ManufacturerBelden Wire and Cable; Environmental Compliance

Download Datasheet Parametric View All

BBMINIB GMFB25 Overview

RF cable assemblies 1 PC compression mini rgb

BBMINIB GMFB25 Parametric

Parameter Name	Attribute value
Manufacture	Belden Wire & Cable
Product Category	RF Cable Assemblies
RoHS	Yes
Unit Weigh	453.592 g

Preview

Download Datasheet

View All

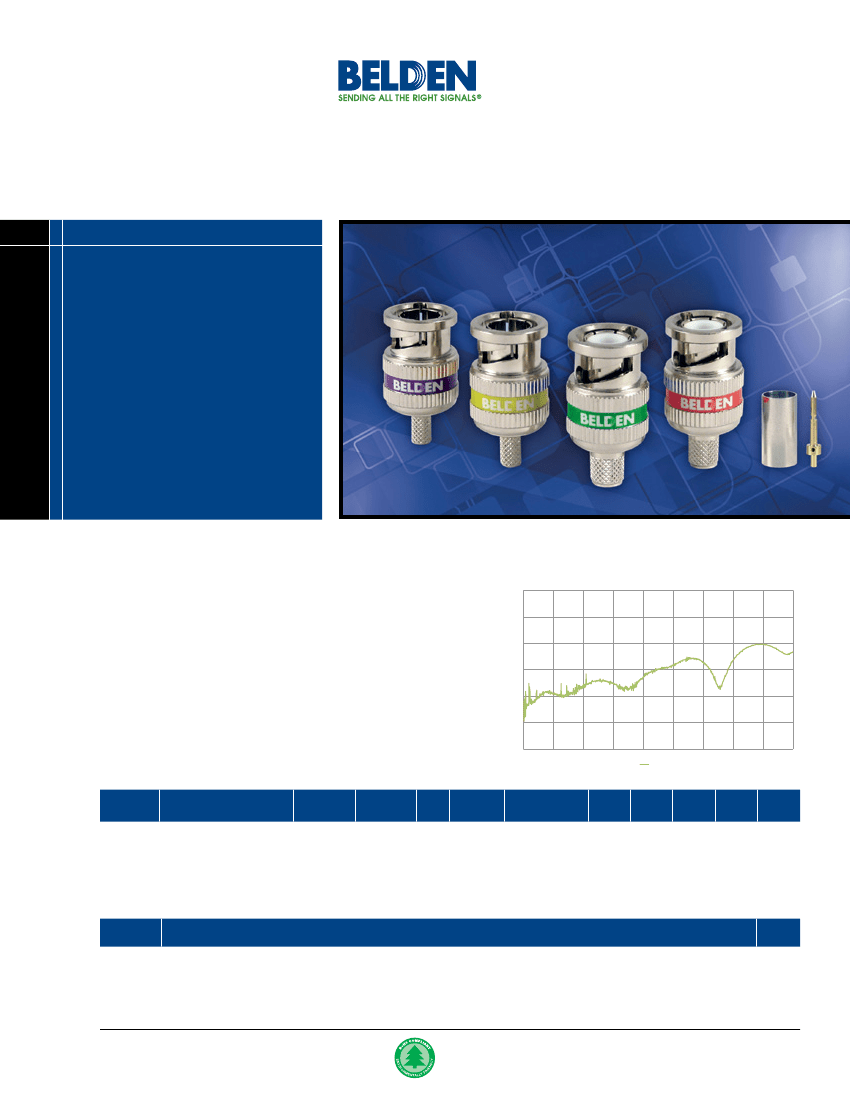

Product Specifications

3-Piece BNC Broadcast

Crimp Connector

Belden introduces the new

3-Piece HD Brilliance

BNC Crimp

Connector. The 3-piece connector

delivers excellent return loss

performance and quality

that exceeds expectations

of the typical 3-piece connector;

featuring a precision machined

BNC nut and extended head knurl

nut for easy grip.

•

Enhanced to fit perfectly with Belden

Brilliance® Cable for strong

and dependable signal delivery

and performance

•

Center pin is crimped in place

with easy installation tool

•

Comes with Belden’s patented extended

head knurl nut design for easy gripping

for installation

•

Excellent Return Loss through 4.5 GHz

•

Exceeds SMPTE Specifications

•

Limited Lifetime Connector

Warranty when partnered

with Belden Brilliance® Cable

•

Color coded to cable

Part

Number

1505ABHD3*

1694ABHD3*

1855ABHD3

179DTBHD3

Physical Properties

•

Brass Material

Environmental Properties

•

Temperature Rating:

-40 ºF (-40 ºC) to 140 ºF (60 ºC)

•

Corrosion: ASTM B117

Mechanical Properties

•

Durability: 500 Cycles Minimum

•

Center Contact Retention: >6 lbs.

Electrical Properties

•

Return Loss: < -20 dB - 32 dB

1 Ghz - 4.5 Ghz

•

Voltage Rating: 500V RMS

•

Insulation Resistance:

>5000 Megaohms at 100 Vdc

Connector RL Performance 

Tested on 1694A Cable 

‐10 

‐20 

Return Loss (dB) 

‐30 

‐40 

‐50 

‐60 

500 

1000 

1500 

Frequency (MHz) 

2000 

2500 

3‐Piece 

3000 

3500 

4000 

4500 

Connector Description

RG59BNC HD Connector

RG6BNC HD Connector

22-24 AWG BNC HD Connector

179 Digital Truck BNC Connector

Type

3-Piece Crimp

Finish

Polished Nickel

Color

Band

Red

Green

Purple

Yellow

Impedence

(ohms)

Pullout Strength

72(+)

90(+)

75(+)

See Cable Spec

RL@3

GHz

-27 dB

RL@3.5

GHz

-27 dB

RL@4

GHz

-21 dB

RL@4.5

GHz

-23 dB

QTY

* These connectors can be used with a Plenum Cable

Part

Number

BB3PHCT

BB3PHCT-D

BB3PST

BB3PST-C

Tool Description

Belden Brilliance Three-Piece Hex Connector Tool

QTY

Replacement Die for BB3PHCT

Belden Brilliance

Three-Piece Strip Tool

Replacement Cassette for BB3PST

Belden Technical Support

1.800.BELDEN.1 (800.235.3361)

www.belden.com
