0-215464-6: Description6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size275KB，1 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric View All

0-215464-6 Overview

6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

0-215464-6 Parametric

Parameter Name	Attribute value
Maker	Diodes Incorporated
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	MICRO-MATCH
body width	0.197 inch
subject depth	0.28 inch
body length	0.421 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.059 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	RIGHT
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.124 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
Evacuation force-minimum value	1.0008 N
Base Number Matches	1

Preview

Download Datasheet

View All

4

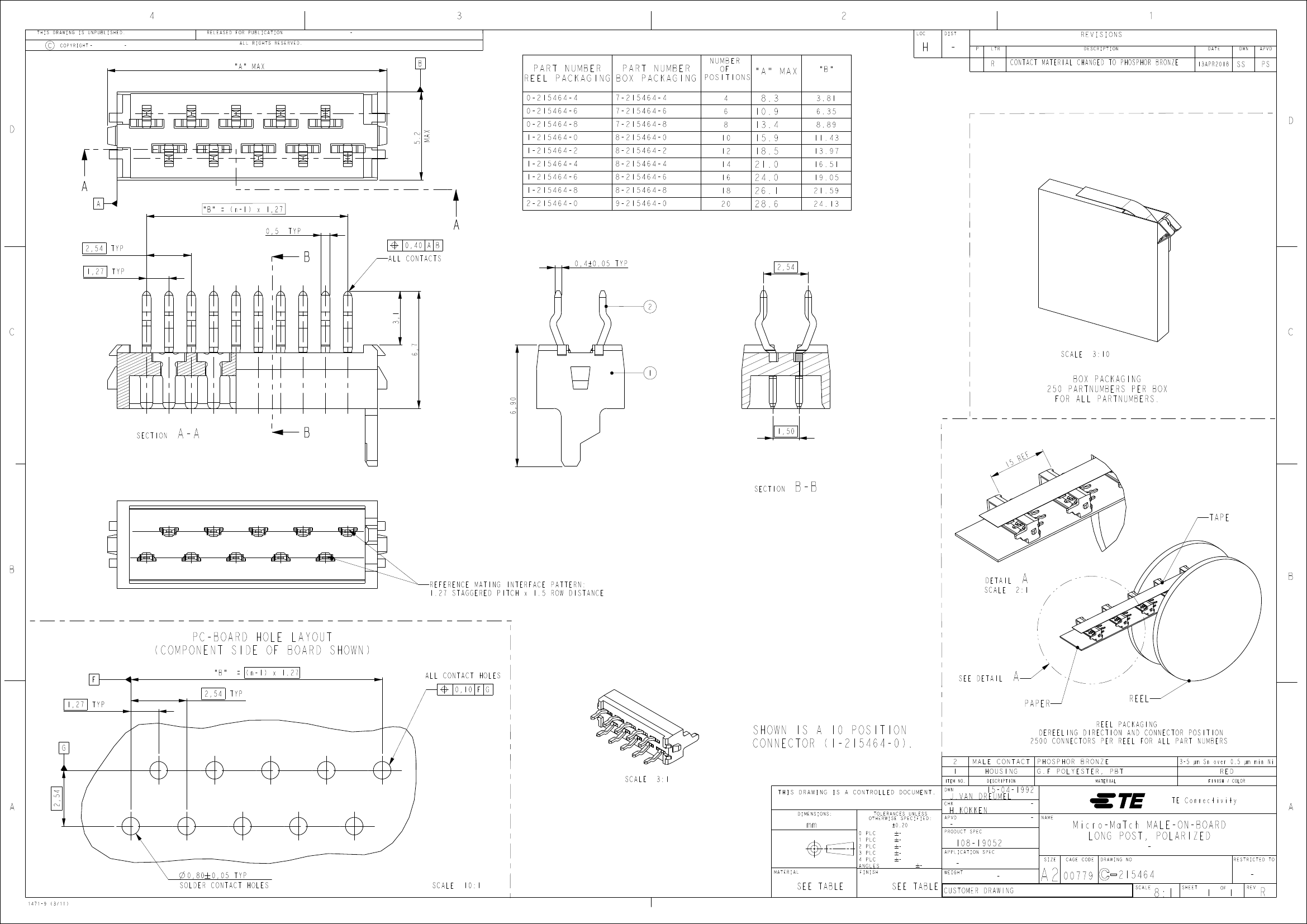

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

3

2

LOC

DIST

1

C

COPYRIGHT -

"A" MAX

B

PART NUMBER

OF

"A" MAX

POSITIONS

REEL PACKAGING BOX PACKAGING

0-215464-4

0-215464-6

0-215464-8

1-215464-0

1-215464-2

1-215464-4

1-215464-6

1-215464-8

7-215464-4

7-215464-6

7-215464-8

8-215464-0

8-215464-2

8-215464-4

8-215464-6

8-215464-8

9-215464-0

4

6

8

10

12

14

16

18

20

NUMBER

H

"B"

3.81

6.35

8.89

11.43

13.97

16.51

19.05

21.59

24.13

-

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

R

CONTACT MATERIAL CHANGED TO PHOSPHOR BRONZE

13APR2018

SS

PS

10.9

13.4

15.9

18.5

21.0

24.0

26.1

28.6

8.3

5.2

MAX

D

A

"B" = (n-1) x 1,27

0,5

TYP

ALL CONTACTS

2-215464-0

2,54

1,27

TYP

0,4 ±0.05 TYP

2,54

3,1

2

C

6,7

SCALE

1

6,90

3:10

C

BOX PACKAGING

250 PARTNUMBERS PER BOX

FOR ALL PARTNUMBERS.

1,50

RE

F

SECTION

A-A

15

SECTION

B-B

TAPE

B

REFERENCE MATING INTERFACE PATTERN:

1.27 STAGGERED PITCH x 1.5 ROW DISTANCE

DETAIL

SCALE 2:1

A

B

PC-BOARD HOLE LAYOUT

(COMPONENT SIDE OF BOARD SHOWN)

F

1,27

TYP

"B"

2,54

= (n-1) x 1.27

TYP

ALL CONTACT HOLES

SEE DETAIL

A

PAPER

REEL

REEL PACKAGING

DEREELING DIRECTION AND CONNECTOR POSITION

2500 CONNECTORS PER REEL FOR ALL PART NUMBERS

G

SHOWN IS A 10 POSITION

CONNECTOR (1-215464-0).

2

SCALE

2,54

3:1

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

1

ITEM NO.

MALE CONTACT

HOUSING

DESCRIPTION

PHOSPHOR BRONZE

G.F POLYESTER, PBT

MATERIAL

3-5 µm Sn over 0.5 µm min Ni

RED

FINISH / COLOR

A

mm

0,80 0,05 TYP

SOLDER CONTACT HOLES

1471-9 (3/11)

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

±0.20

-

15-04-1992

J.VAN DREUMEL

CHK

-

H.KOKKEN

APVD

-

DWN

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

NAME

A

108-19052

-

SIZE

-

WEIGHT

SCALE

10:1

SEE TABLE

CUSTOMER DRAWING

-

A2

00779

CAGE CODE

Micro-MaTch MALE-ON-BOARD

LONG POST, POLARIZED

-

DRAWING NO

RESTRICTED TO

215464

SCALE

8:1

SHEET

1

OF

1

REV

-

R
