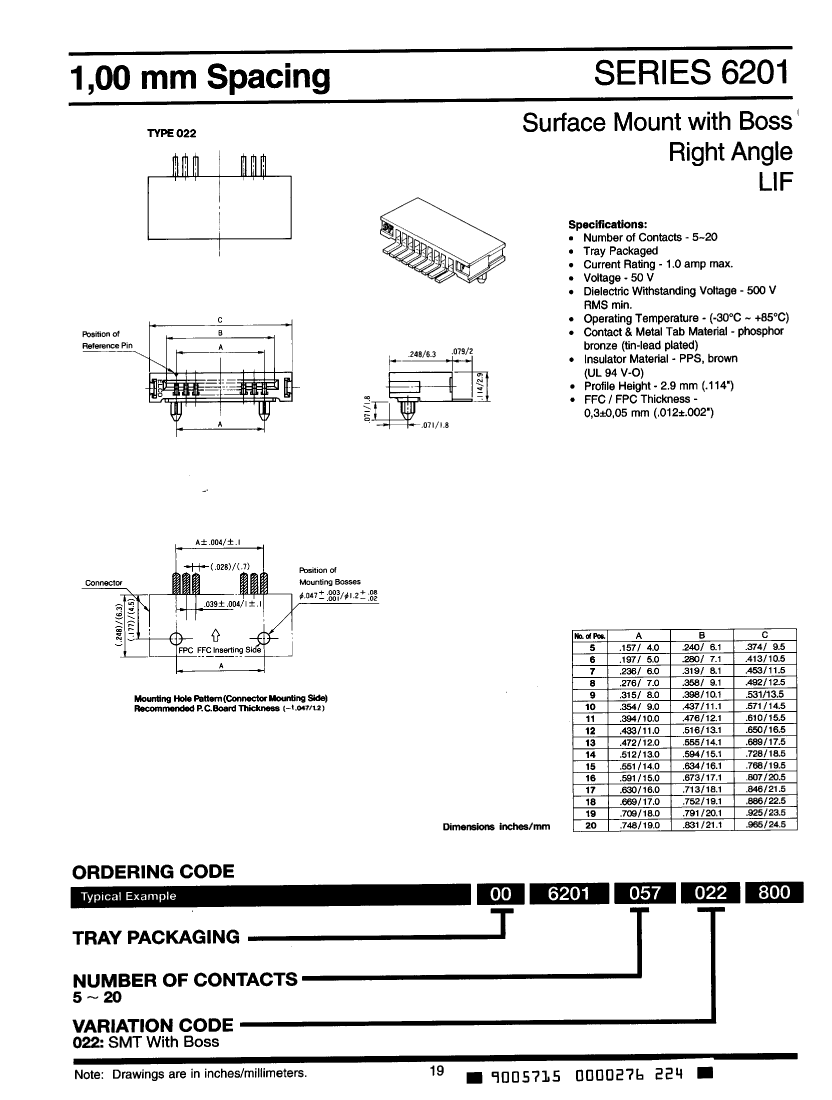

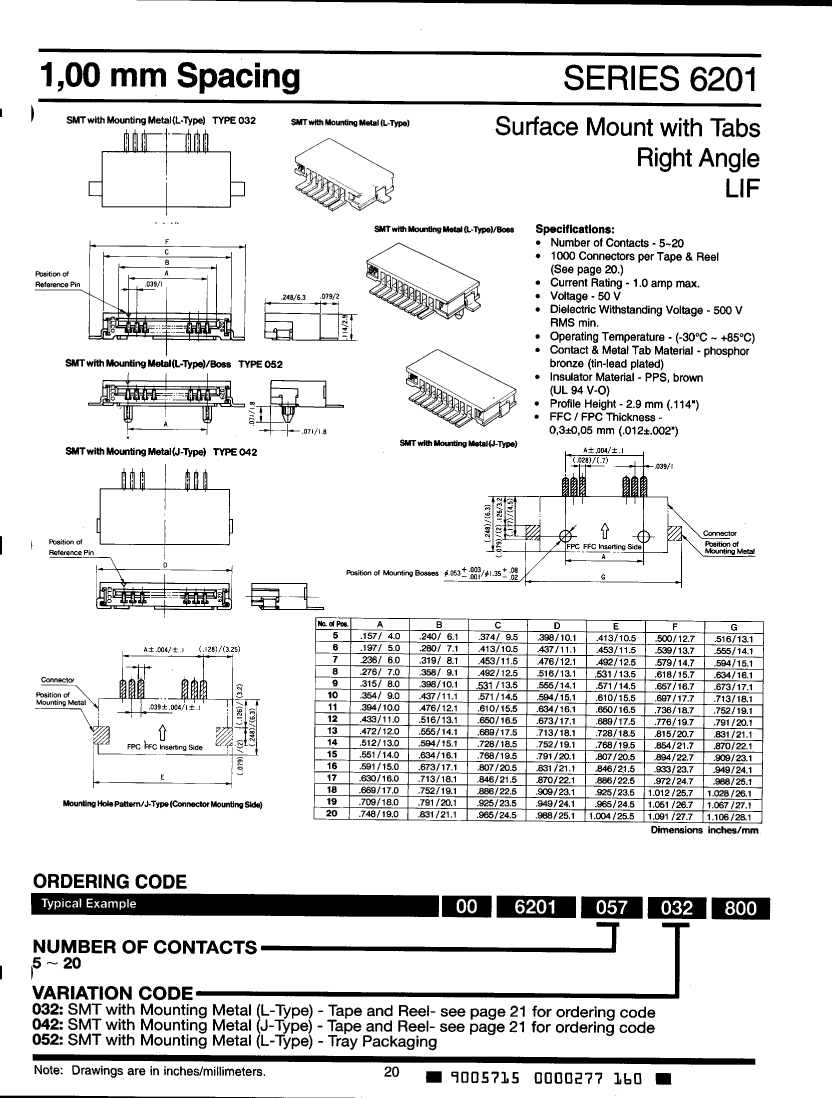

00-6201-127-022-800 datasheet, PDF

00-6201-127-022-800: DescriptionCard Edge Connector, 12 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Brown Insulator; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

00-6201-127-022-800 Overview

Card Edge Connector, 12 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Brown Insulator

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Is Samacsys	N
Other features	NONE
Board mount options	POLARIZATION POST
body width	0.114 inch
subject depth	0.327 inch
body length	0.65 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Plug contact pitch	0.039 inch
Installation method	RIGHT ANGLE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Total number of contacts	12
Base Number Matches	1
