000-6309-37 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 000-6309-37

000-6309-37: DescriptionDatacom Transformer, LAN; 10 BASE-T Application(s), 1CT:1CT; CategoryPower management transformer; File Size181KB，2 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric View All

000-6309-37 Overview

Datacom Transformer, LAN; 10 BASE-T Application(s), 1CT:1CT

000-6309-37 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
application	LAN; 10 BASE-T
high	5.84 mm
Insulation voltage	1500 V
length	28.83 mm
Manufacturer's serial number	000-6309-37
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L28.83XB12.32XH5.84 (mm)
Primary inductance	280 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT
width	12.32 mm
Base Number Matches	1

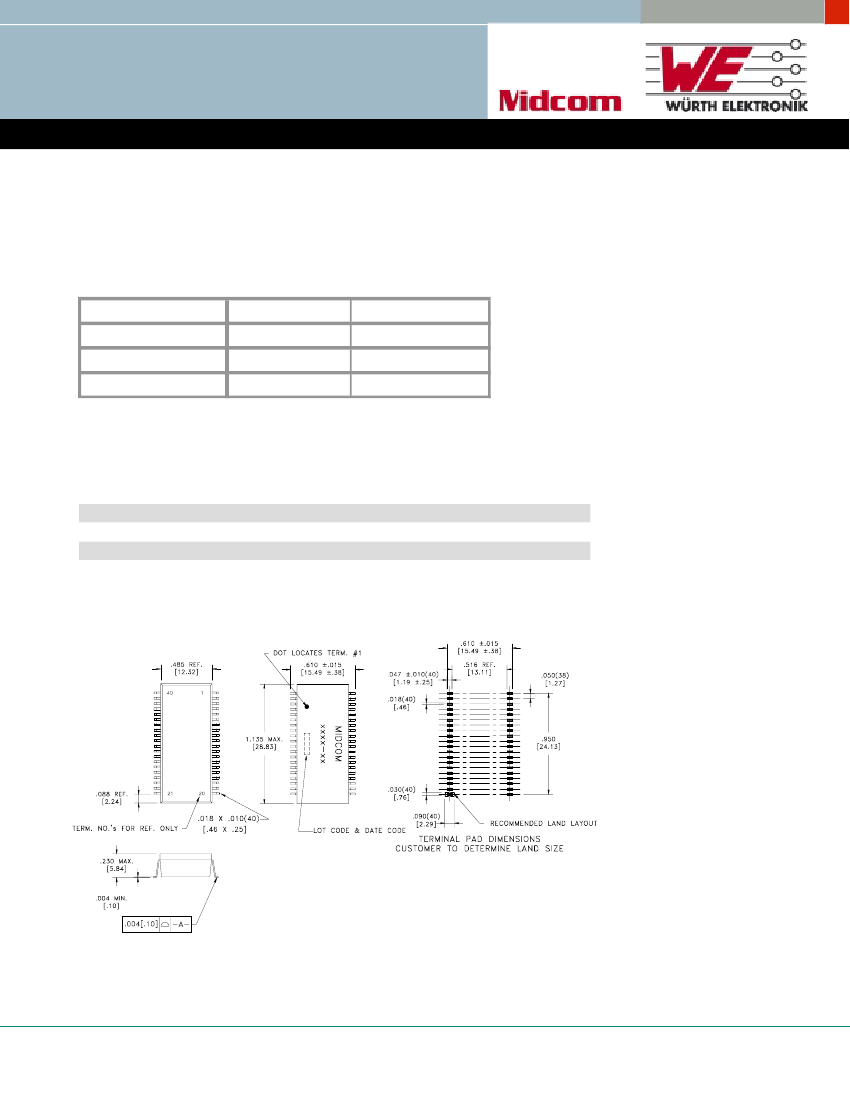

Preview

Download Datasheet

View All

more than you expect

LANDatacom

Features

•

Meets IEEE 802.3 standards

•

Dual port configuration

•

Surface mount

•

Transfer mold package

•

Optional pin-outs

•

Industry standard connector footprint

•

Optimum performance

•

Cost Effective

•

Both RoHS compliant and lead-

terminal parts available

Discrete Quad Port

10 Base-T PDFP-G40

Common Electrical Characteristics

Dielectic Rating

1500VAC

for 1 minute

Insertion Loss

-1dB max.

1MHz-10MHz

5MHz-10MHz

Return Loss

-15dB min.

Cross Talk

-35dB min.

5MHz-10MHz

Part Number

000-6309-37

000-6961-37

000-6964-37

Transmit

Turns Ratio

1CT:1CT

1CT:1.4CT

1CT:2CT

Inductance

(0.1Vrms, 100kHz)

280µH

140µH

200µH

Operating Temp.

Range

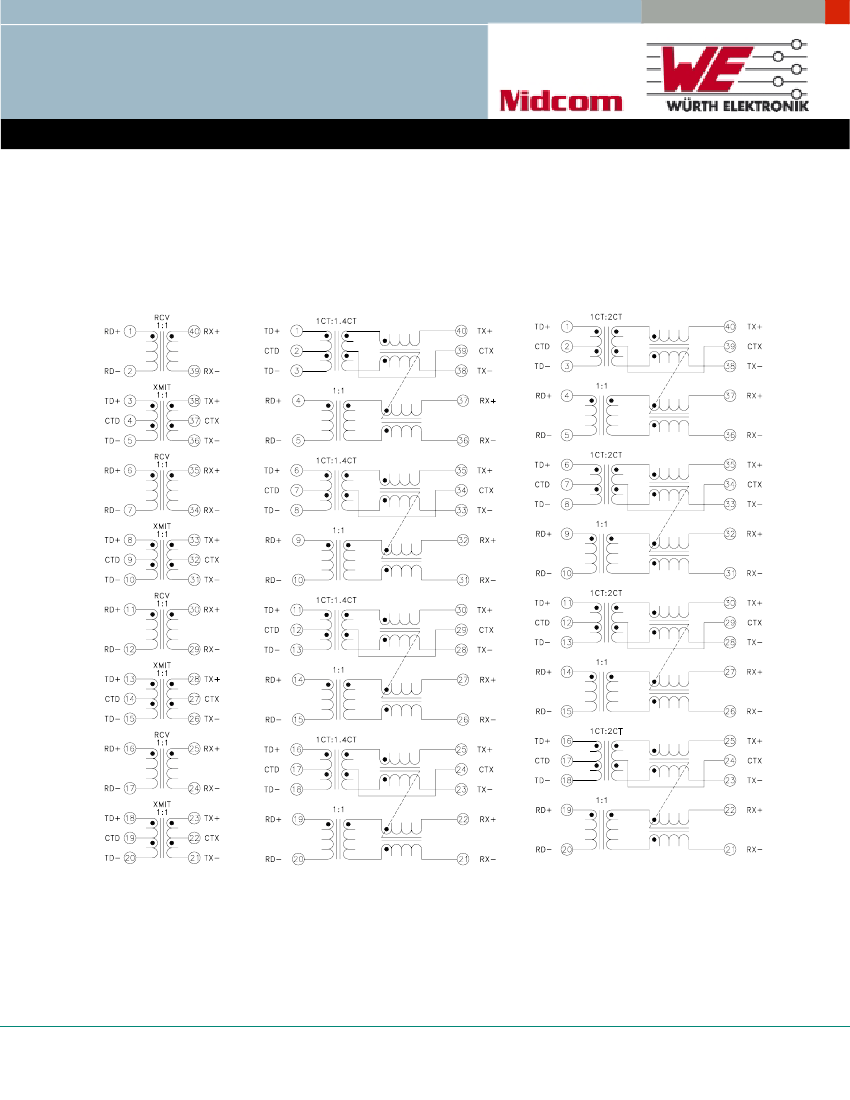

Schematic

0°C to +70°C

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are ± .010/0,25 and electrical specifications are @ 25°C unless otherwise specified.

5/01/08

Wurth Electronics Midcom, Inc. USA

121 Airport Drive - PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.we-online.com ~ email:sales@midcom-inc.com
