000-7148-35: DescriptionDatacom Transformer, LAN; 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1.4CT; CategoryPower management transformer; File Size116KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric View All

000-7148-35 Overview

Datacom Transformer, LAN; 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1.4CT

000-7148-35 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
application	LAN; 10/100 BASE-T; AUTOMDIX
high	2.06 mm
Insulation voltage	1500 V
length	12.83 mm
Manufacturer's serial number	000-7148-35
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L12.83XB7.11XH2.06 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1.4CT
width	7.11 mm
Base Number Matches	1

Preview

Download Datasheet

View All

more than you expect

LANDatacom

Features

•

PCMCIA compatible profile

Meets IEEE 802.3 standard

Surface mount

Optional pin-outs

Industry standard connector

footprint

•

Optimum performance

•

Cost Effective

•

Both RoHS compliant and lead-

terminal parts available

Discrete Single Port 10/100 Base-T

PCMCIA AEDFP-G16

Typical Common Electrical Characteristics

1

Inductance

350uH Min.

Dielectic Rating

1500VAC

Insertion Loss

-1.1dB max.

-17dB min.

-15.5dB min.

Return Loss

-13dB min.

-11dB min.

Cross Talk

-30dB min.

Common Mode Rejection

-30dB min.

0.1Vrms, 100kHz, 8mADC

for 1 minute

100kHz-100MHz

1MHz-30MHz

30MHz-45MHz

45MHz-60MHz

60MHz-80MHz

100kHz-100MHz

Part Number

000-7112-35

000-7148-35

000-7218-35

Transmit

Turns Ratio

1CT:1CT

1CT:1.4CT

1CT:1CT

AutoMDIX Operating Temp.

Compatible

Range

No

0°C to +70°C

No

0°C to +70°C

Yes

0°C to +70°C

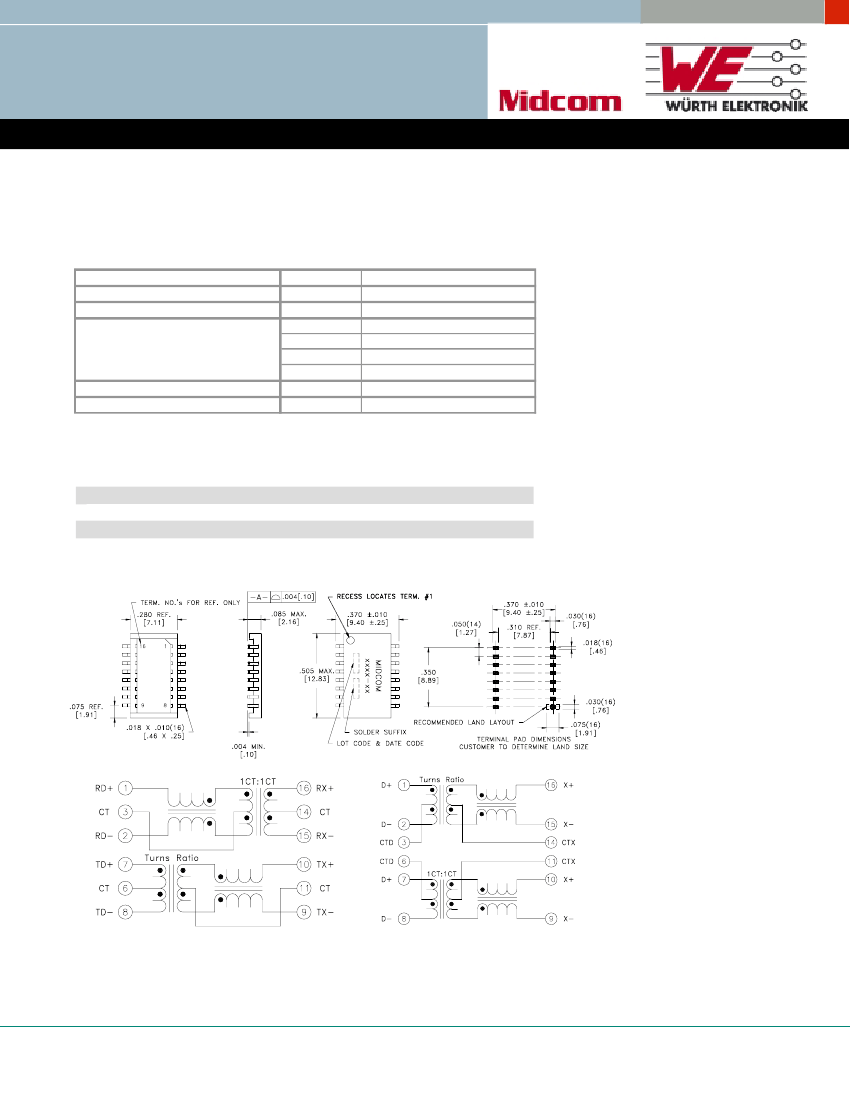

Schematic

1

2

Schematic 1

Schematic 2

Note1: The 000-7342-37 is missing terminal 4, 5, 12 and 13.

Note2: Typical min. and max. electrical characteristics only, see specification sheets for actual characteristics.

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are ± .010/0,25 and electrical specifications are @ 25°C unless otherwise specified.

5/01/08

76

Wurth Electronics Midcom, Inc. USA

121 Airport Drive - PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.we-online.com ~ email:sales@midcom-inc.com
