SC and FC Angled PC
Cable Assemblies
Description
Corning Cable Systems’ SC and FC Angled PC Cable
Assemblies provide high-performance connectivity solutions
for today’s telecommunications applications. In addition, our
state-of-the-art manufacturing technologies ensure your con-
nections exceed the performance requirements of tomorrow’s
applications: high bit-rate digital, optically amplified, WDM,
and coherent communication systems. These connectors com-
bine high-precision zirconia ferrules, nickel-plated brass hard-
ware, and engineered composites to provide a durable package
with consistent, repeatable performance. Corning Cable
Systems’ Angled PC connectors are available factory-terminat-
ed on a wide range of outside plant and flame-retardant cables
in stranded tube, ribbon, and tight-buffered designs.
Corning
Cable Systems
Features / Benefits
• Compatible with TIA/EIA 604-3A and 604-4A, Fiber
Optic Connector Intermateability Standard, FOCIS-3
and FOCIS-4
• Designed and tested to Telcordia GR-326-CORE, Issue 3
• Insertion Loss: < 0.3 dB typical, 0.50 dB maximum
• Reflectance: -70 dB maximum
• 100% optical and visual inspection; performance is
guaranteed
• Molded integral key with optimized fiber positioning
• Non-optical disconnect design
8.9

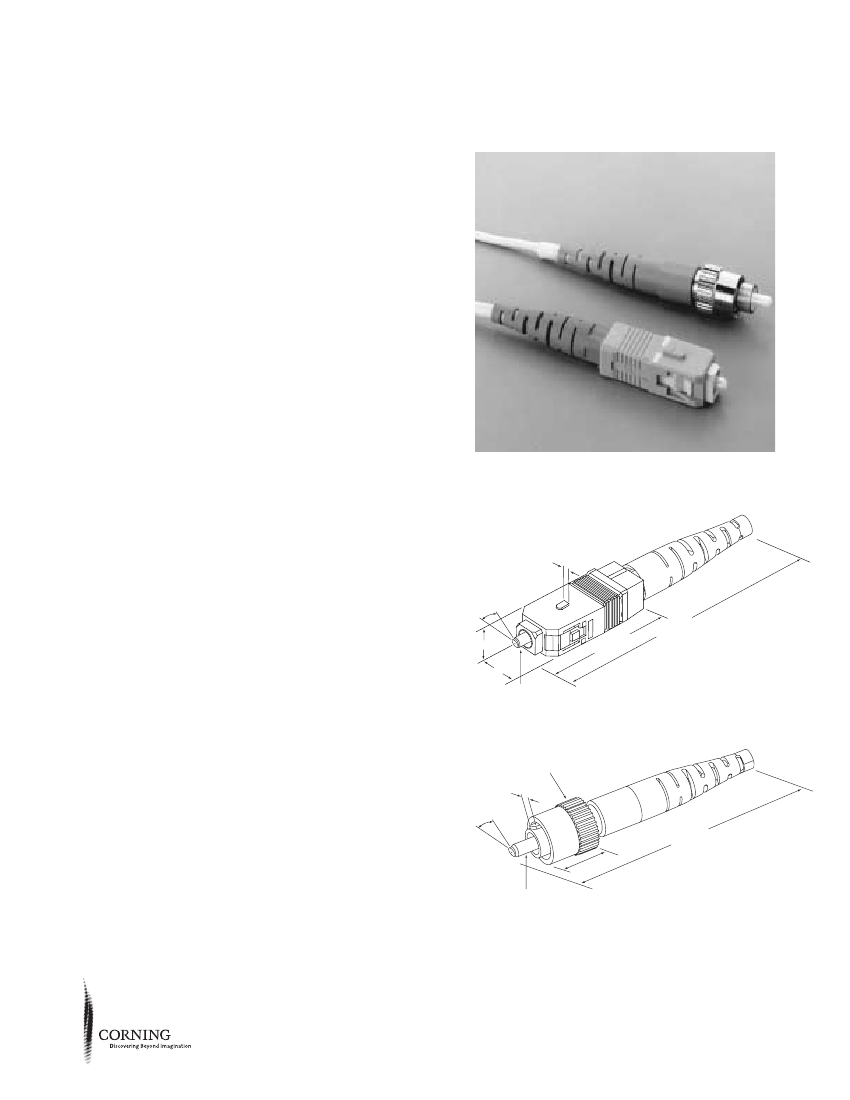

SC and FC Angled PC Cable Assemblies
|
Photo CCA118
1.75
mm
g
An
8°
le
m
0m
50.
mm
7.3
mm
2.4
99
mm
m
7m
25.
• Standard angled 8-degree end-face
SC Angled PC Cable Assembly
| Drawing ZA1939
mm
10.0
2.07 m
m
ngl
8° A
e
52 m
8.5
mm
m
m
9m
2.49
FC Angled PC Cable Assembly
| Drawing ZA1940
Product Specifications
SC and FC Angled PC
Cable Assemblies
Mechanical Specifications
Insertion Loss
Reflectance
Average: 0.3 dB
Guaranteed: 0.5 dB
Average:
≤
75 dB
Guaranteed:
≤
70 dB
Corning
Cable Systems
Ordering Information
ssss sssssss sss s
1
2
3
4
1
Select connector code.
00 = No connectors (use when ordering a pigtail)
21 = FC Angled PC
65 = SC Angled PC
2
Select cable.
Single-fiber cable
01R3131 = 2.9 mm
01R2131 = 2.0 mm
01R4131 = 900 µm
Dual-fiber cable
02R5131 = Zipcord (2.9 mm subunits)
02R5120 = Zipcord (2.0 mm subunits)
02R9131 = DFX
®
(2.5 mm subunits)
3
Select cable assembly length.
001 through 999*
4
Select unit of measure.
F = feet
M = meters
* For lengths greater than 999, contact Customer Service.
Corning Cable Systems LLC • PO Box 489 • Hickory, NC 28603-0489 USA
1-800-743-2675 • FAX: 828-901-5973 • International: 828-901-5000 • http://www.corning.com/cablesystems
Corning Cable Systems reserves the right to improve, enhance, and modify the features and specifications of Corning Cable Systems’ products
without prior notification. DFX is a registered trademark of Corning Cable Systems Brands, Inc. All other trademarks are the properties of their
respective owners. Corning Cable Systems is ISO 9001 Certified. ©1999, 2002 Corning Cable Systems. All Rights Reserved. Published in the USA.
CCA.162B.EN / January 2002 / PDF
