009188006020062 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 009188006020062

009188006020062: DescriptionBoard Stacking Connector, 6 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size505KB，4 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

009188006020062 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	009188006020062	-	-	View	Buy Now

009188006020062 Overview

Board Stacking Connector, 6 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

009188006020062 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1990644123
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Conn Board to Board M 6 POS Solder ST SMD T/R
Samacsys Manufacturer	AVX
Samacsys Modified On	2021-01-20 06:26:05
YTEOL	8.73
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	PURE TIN
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	6

Preview

Download Datasheet

View All

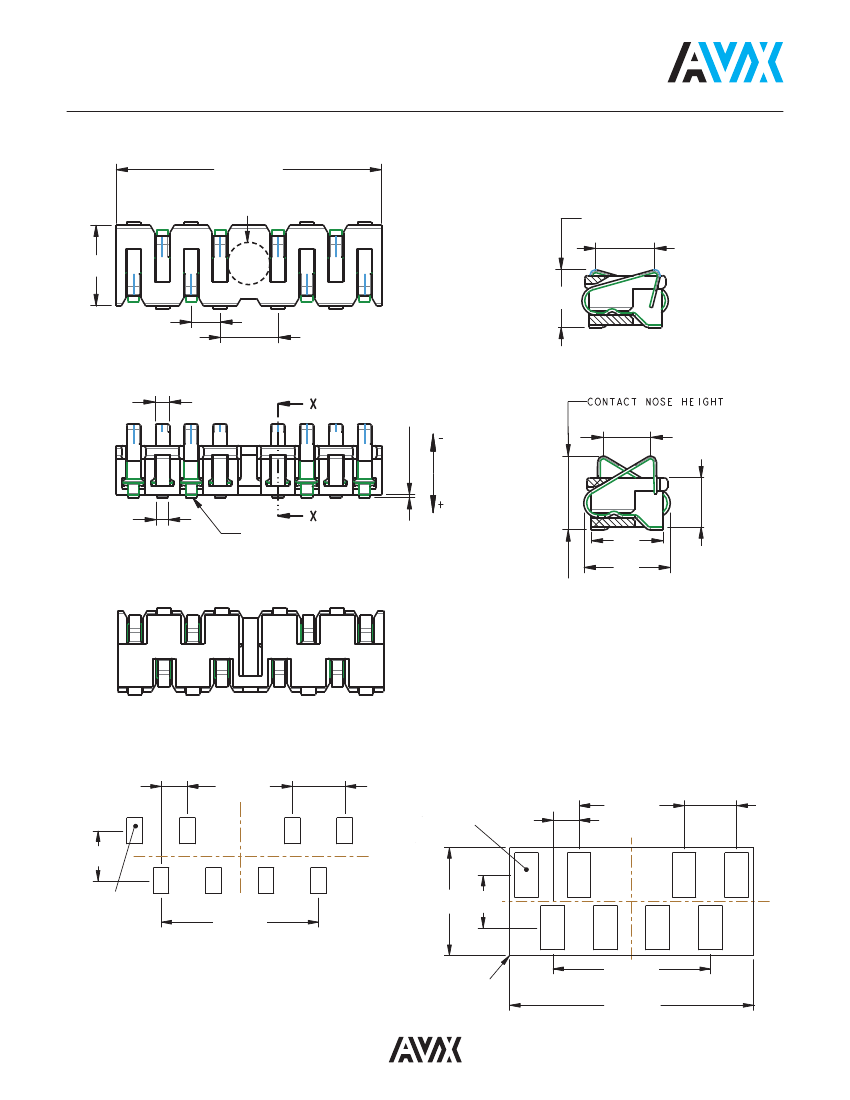

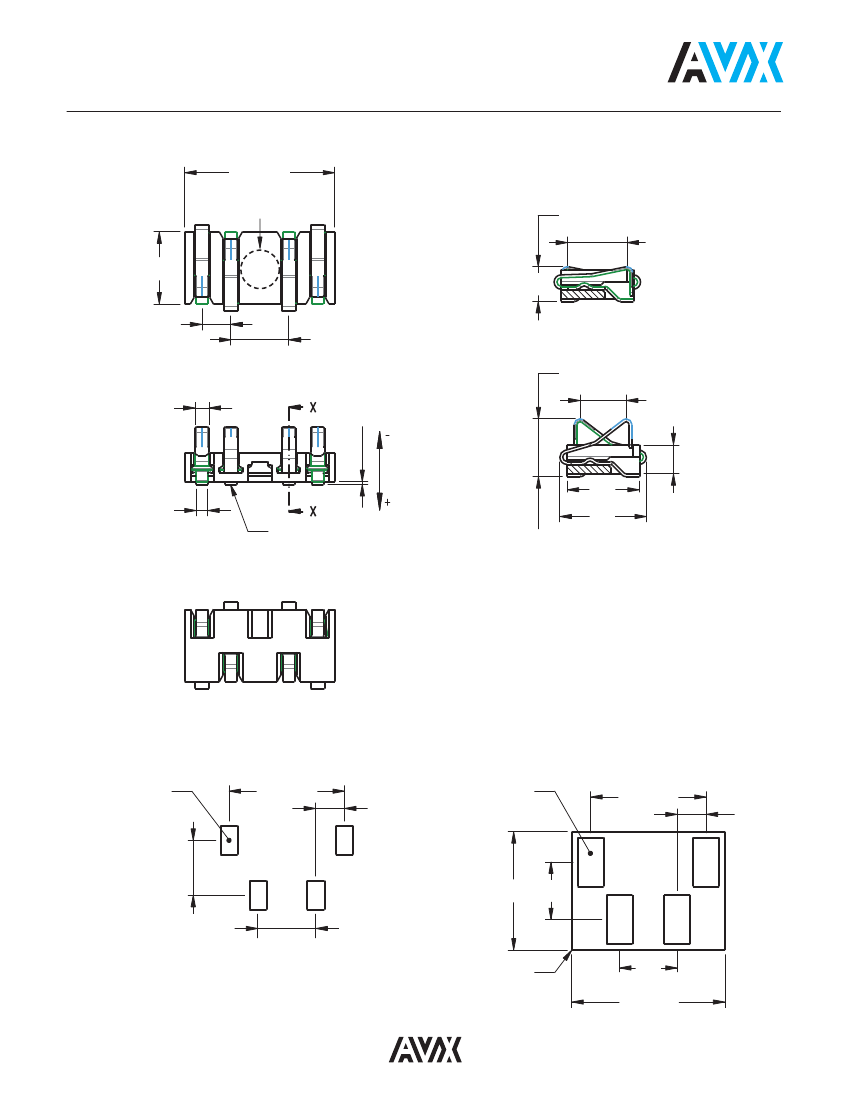

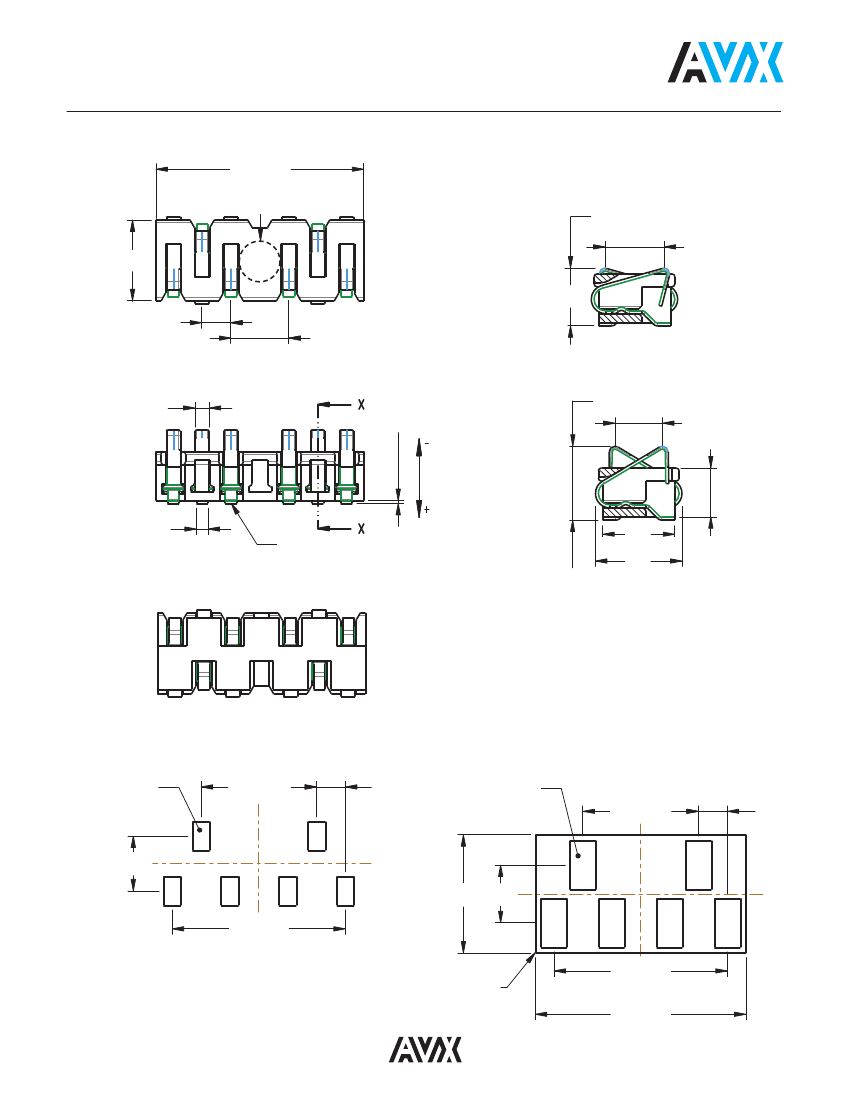

9188 Staggered SOLO Stacker

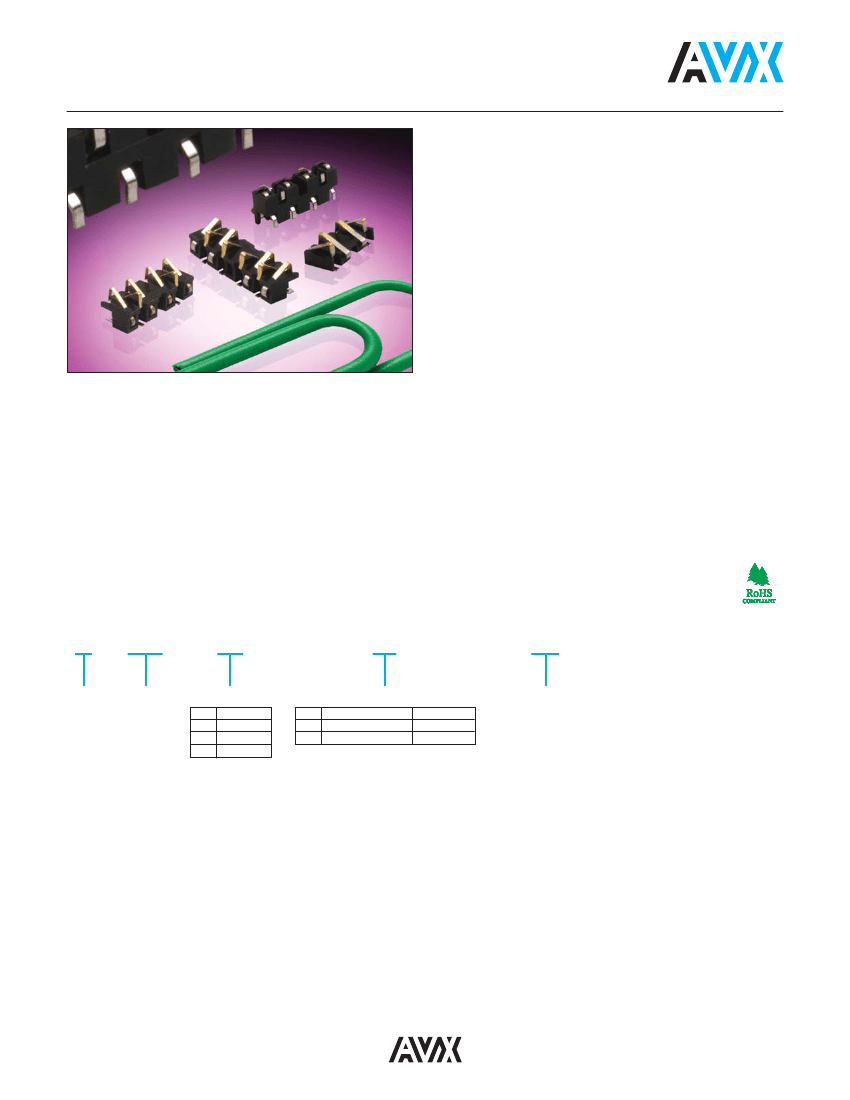

GENERAL DESCRIPTION

The SOLO series 9188 is a one-piece connector used to con-

nect two PCBs in a cost effective manner.

A standard range is available with 4, 6, 8 staggered contacts to

suit stack heights of 1.1mm to 2.1mm (see table below).

SOLO Stacker is designed for PCB surface mounting and is

supplied in tape and reel packaging. Gold plated pads on the

mating PCB or suitable flex circuits provide connection between

the two boards.

APPLICATIONS

Suitable applications include:

• Handheld Devices:

- Phones

- Scanners

- Radios

- Medical Diagnostic

- Security Devices

KEY FEATURES AND BENEFITS

Single piece connector – no mating half required to connect

two boards together which means:

• Reduced assembly time

• Only one part to purchase and stock

• Due to the unique contact design, the mating device does

not have to be parallel

• Helps reduce tolerance accumulation within system

HOW TO ORDER

9188

004

012

062

Prefix

Series

No. of Ways

Code No. of Ways

004

006

008

Code

012

020

Stack Height

Height

1.1mm to 1.3mm

1.9mm to 2.1mm

No. of Ways

4 only

6 & 8 only

Plating Variation

06 = Selective Gold

0.25µm

Gold Plated

Contact Nose,

Pure Tin Tail

No Bosses
